Case design has quietly become one of the more competitive categories in PC building this side of the year, and CORSAIR knows this well. That said, the 3200D is the company’s answer to builders who want strong airflow, generous GPU clearance, and a clean look without paying a premium price.
The 3200D steps in as the successor for the more boxy yet popular 3000D. It comes with a reworked ventilated front panel, support for up to a 360 mm AIO in the front or up top, room for graphics cards as long as 400 mm, and a built-in anti-sag arm to keep heavy GPUs from drooping over time.
Disclosure: CORSAIR sent the 3200D RS ARGB for review. All thoughts and opinions are entirely of my own.
Technical Specifications
The 3200D RS ARGB supports up to a 360 mm radiator, has room for 400 mm GPUs, and can fit 9x 120 mm or 4x 140 mm fans. It comes in Black, White, and a new semi-transparent Smoke finish, with two sub-variants: the 3200D RS (3x RS120 fans, no RGB) and the 3200D RS ARGB (3x RS120 ARGB fans). Other features include a built-in GPU anti-sag arm, support for reverse-connect motherboards, a USB 3.2 Gen 2×2 Type-C front port, and room for 3 SSDs plus 1 HDD at the back.
| Chassis | |
|---|---|
| Motherboard support | ATX, MicroATX, Mini-ITX |
| Type | Mid-Tower |
| Material | Steel, Tempered Glass, Plastic |
| Clearance | |
| CPU | 165 mm |
| GPU | 400 mm |
| PSU | 180 mm |
| Expansion | |
| Drive Bays | 3.5 in, 2x 2.5 in |
| PCIe Slots | 7x horizontal |
| Cooling | |
| Front | 3x 120 mm / 2x 140 mm |
| Rear | 120 mm |
| Top | 3x 120 mm / 2x 140 mm |
| Bottom | 2x 120 mm |
| I/O Ports | |
| USB | USB Gen 3.2 2×2 Type-C, USB 2.0 Type-A |
| Audio | 3.5 mm TRRS |
| Dimensions | |
| Length | 495 mm |
| Width | 219 mm |
| Height | 458 mm |
| Weight | 8.5 kg |
Packaging and Accessories
CORSAIR ships the 3200D RS ARGB in a sturdy cardboard box, with the case securely suspended between two PE foam sheets. Basically the usual method to safely cushion heavy items during handling.
The packaging should come with the following items inside:
- CORSAIR 3200D RS ARGB Case
- Screws
- Stand-offs
- Zip ties
- Documentation
Design, Build and Connectivity

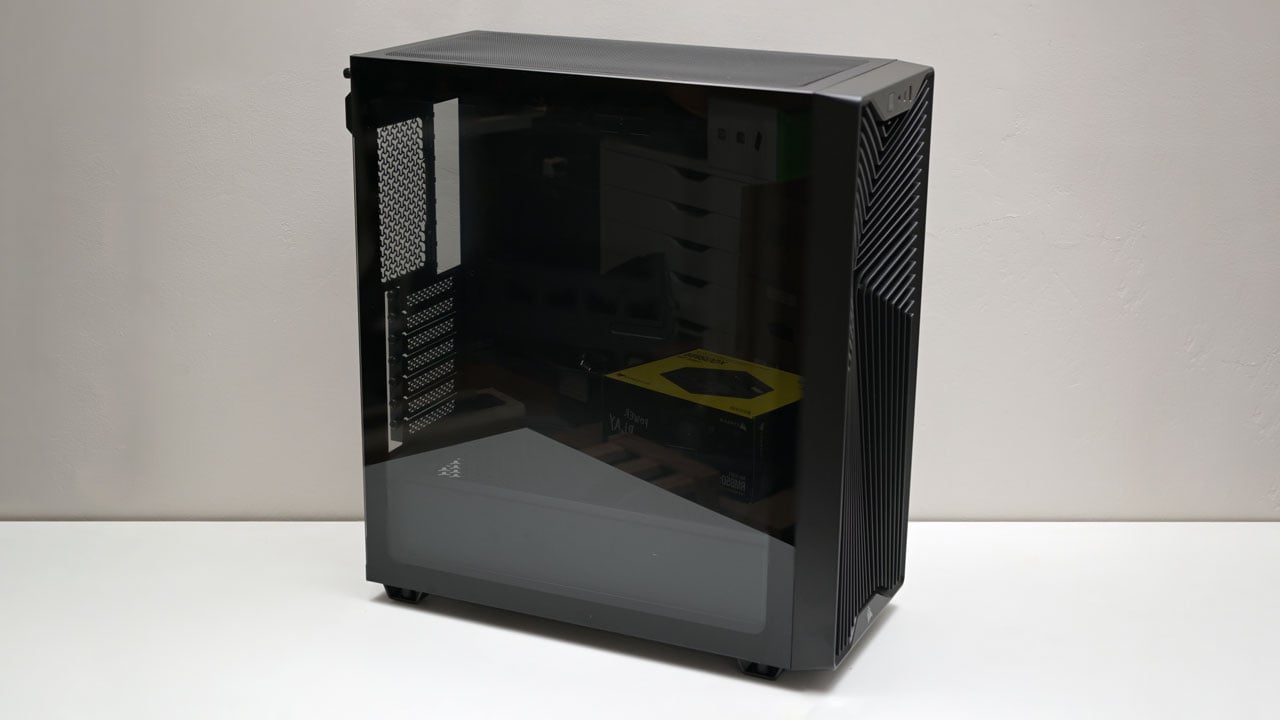

The 3200D RS ARG feels like a worthy successor to the 3000D, sporting a more angular facelift compared to the flatter design of its predecessor. It’s still a boxy-looking mid-tower case overall, but the updated facade with its eye-catching leading lines gives it a more appealing presence – for me at least.

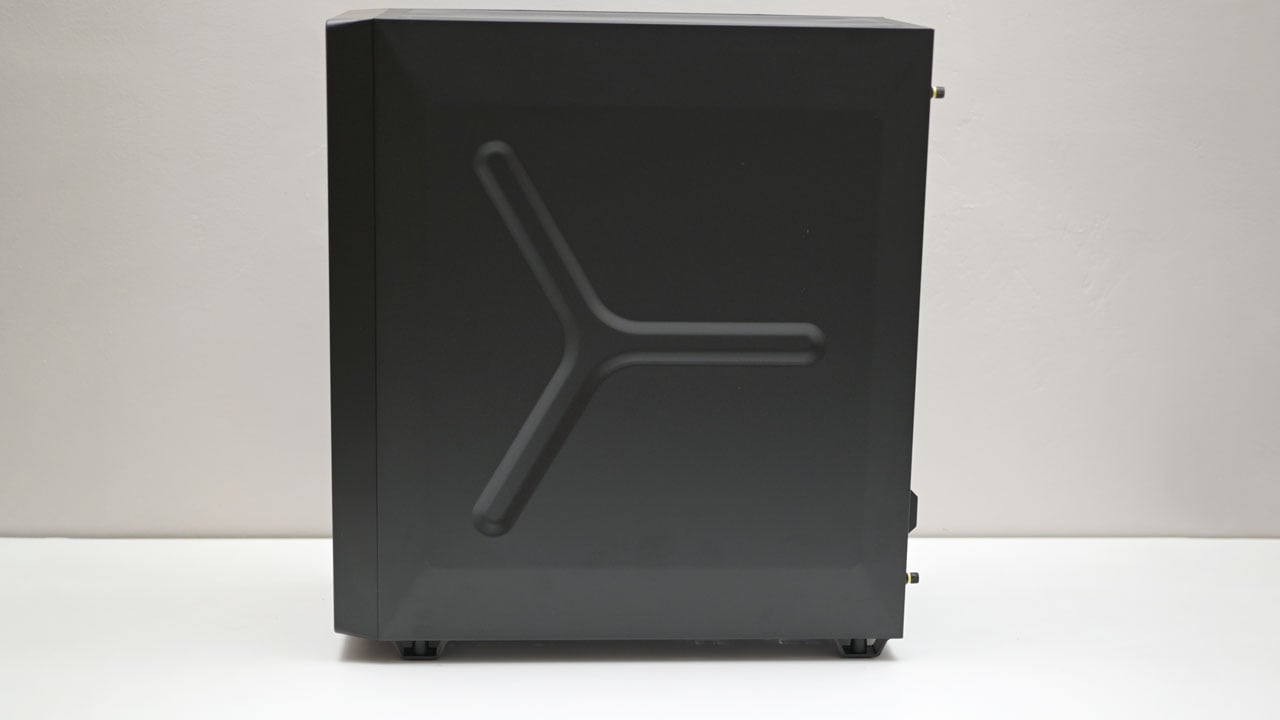

The other side of the case features a simple beveled panel paired with a stamped pattern, adding a touch of interest and keeping it from feeling too plain. The side panel is securely fastened with captive thumbscrews, which is a nice touch from CORSAIR.

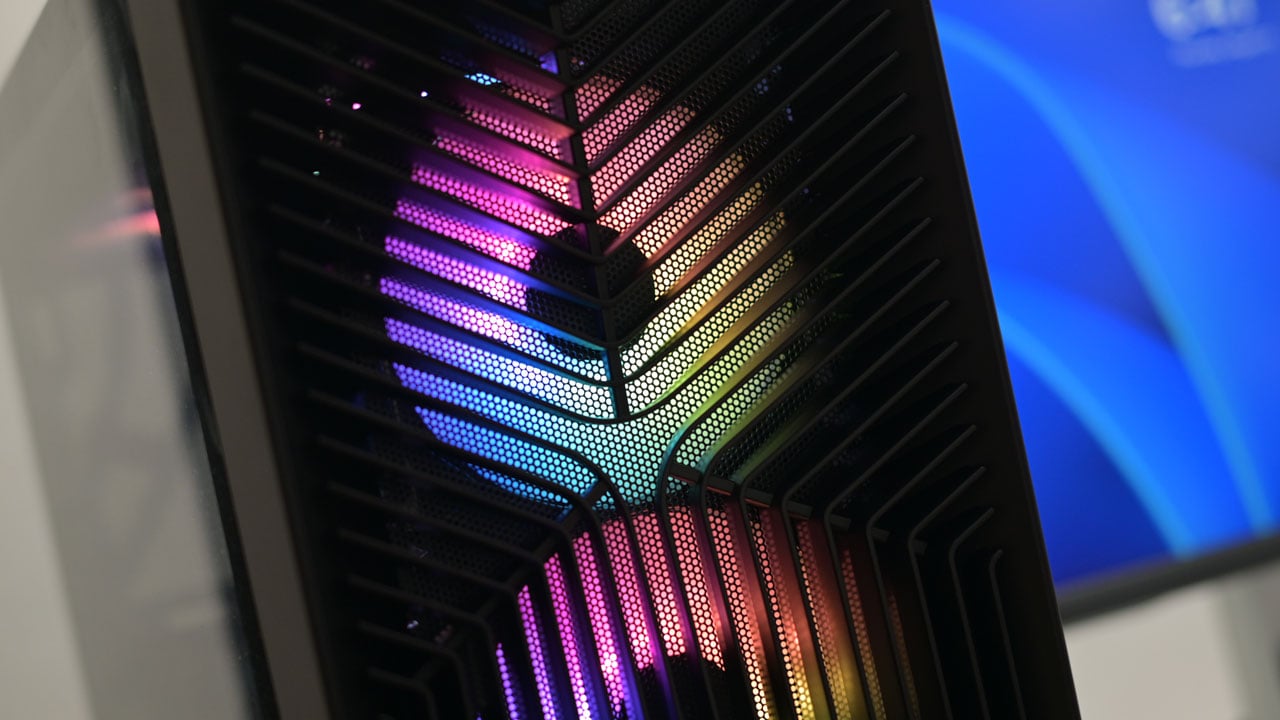

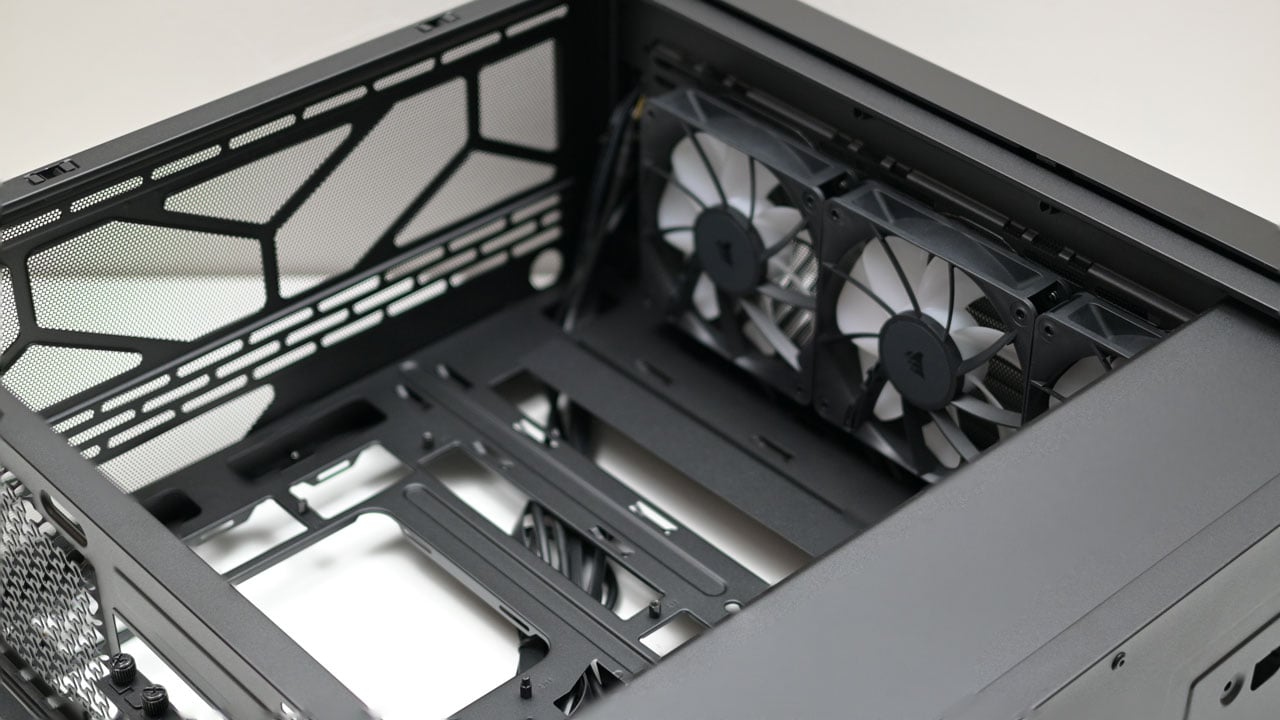

The 3200D RS ARGB offers a spacious interior, even with its pre-installed triple 120 mm RS120 ARGB fans. It can also accommodate three 120 mm fans at the top, or two 140 mm fans in both the front and top positions.

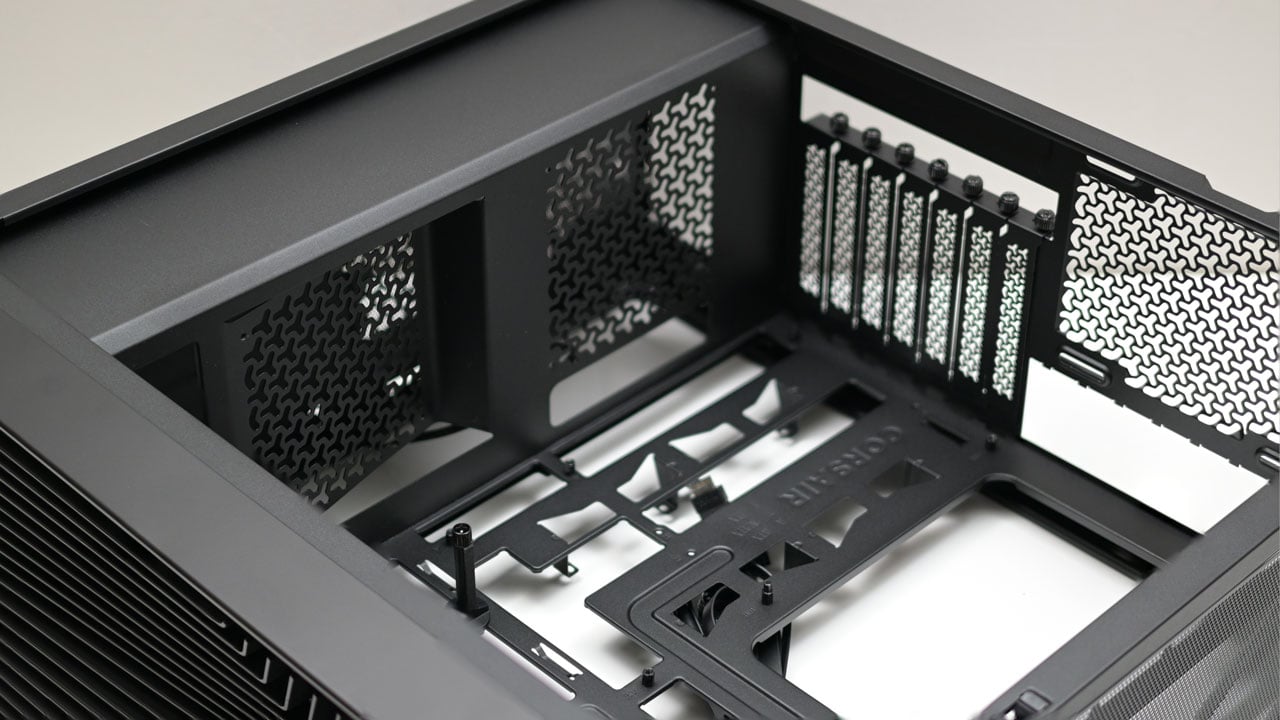

A large motherboard tray cutout should make CPU cooler installation a breeze, complemented by cutouts for cable management and back-connect motherboards. Below, there’s space for two 120 mm fans, with one positioned at an angle towards the GPU.
Clearance and Installation

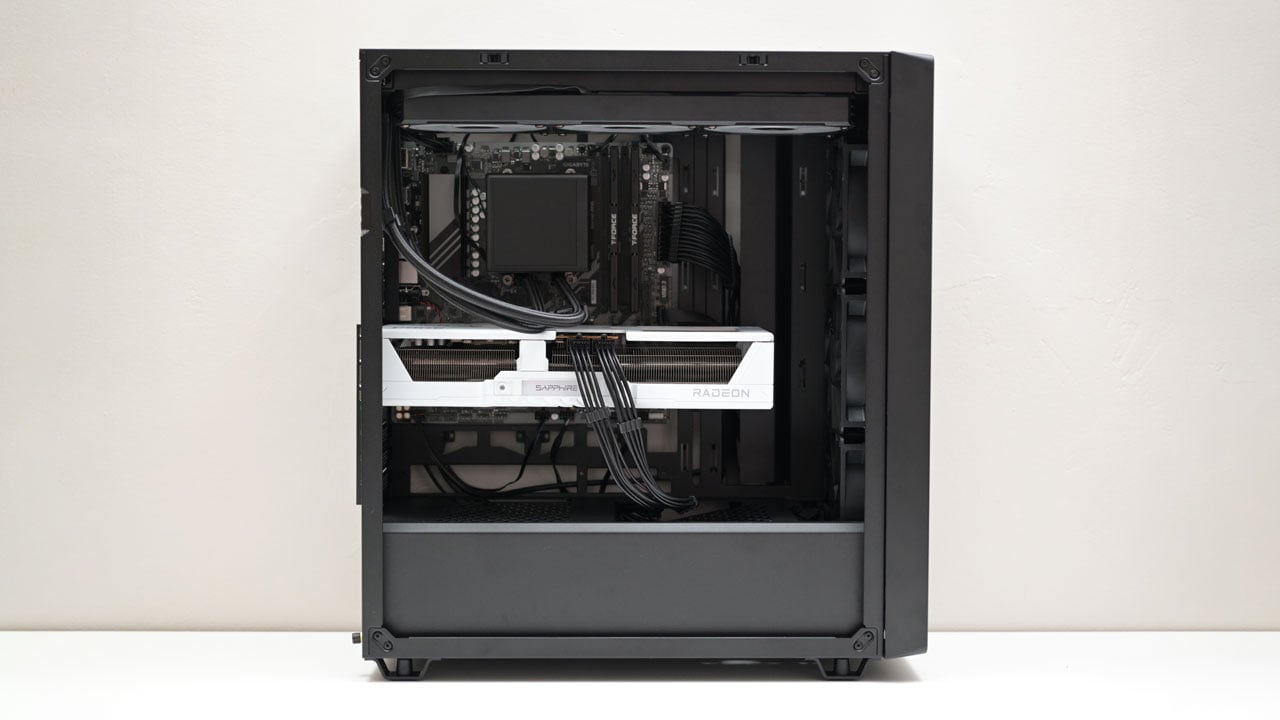

I never ran into any installation issues with the 3200D, even with a huge 3-slot 320 mm GPU and a 360 mm AIO liquid cooler. It honestly felt like working with a full-tower, given how easy it was to install everything.

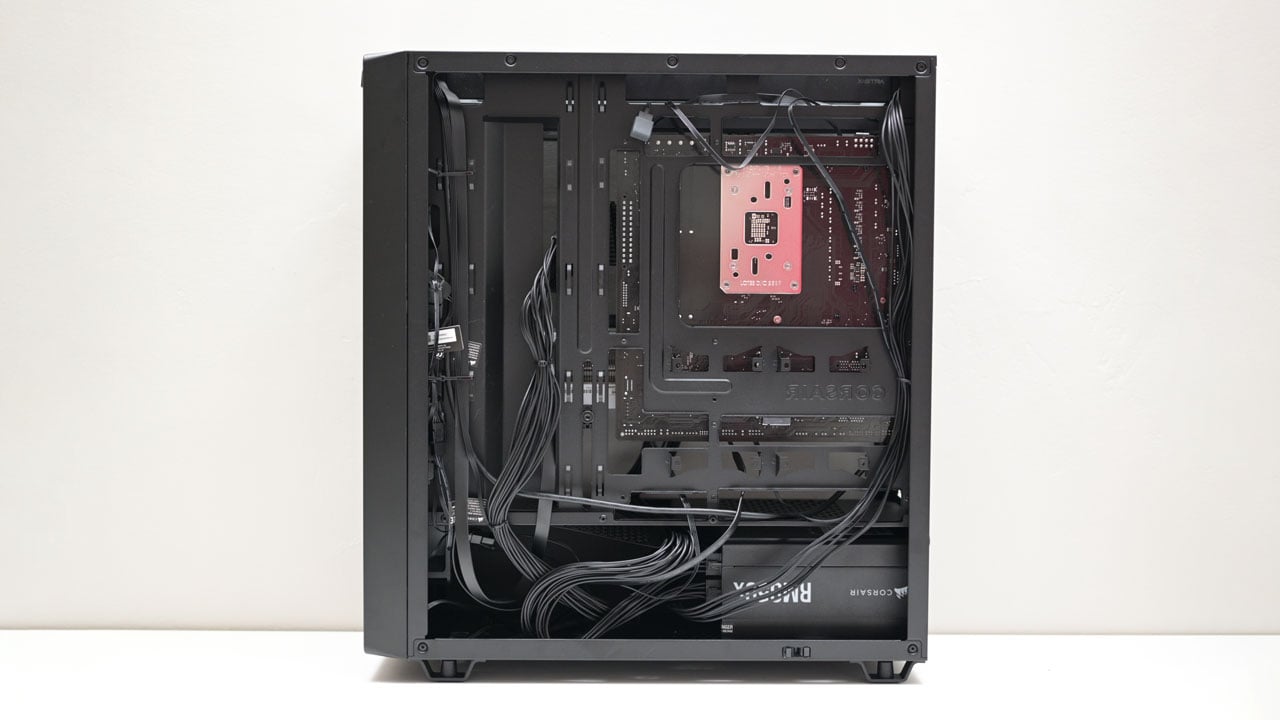

I could have managed the cables better, but even with a rushed installation, the 3200D RS ARGB compensates for the laziest builder with its generous 24 mm cable routing space. If you have 2.5″ SSDs, they can be easily installed at the back.

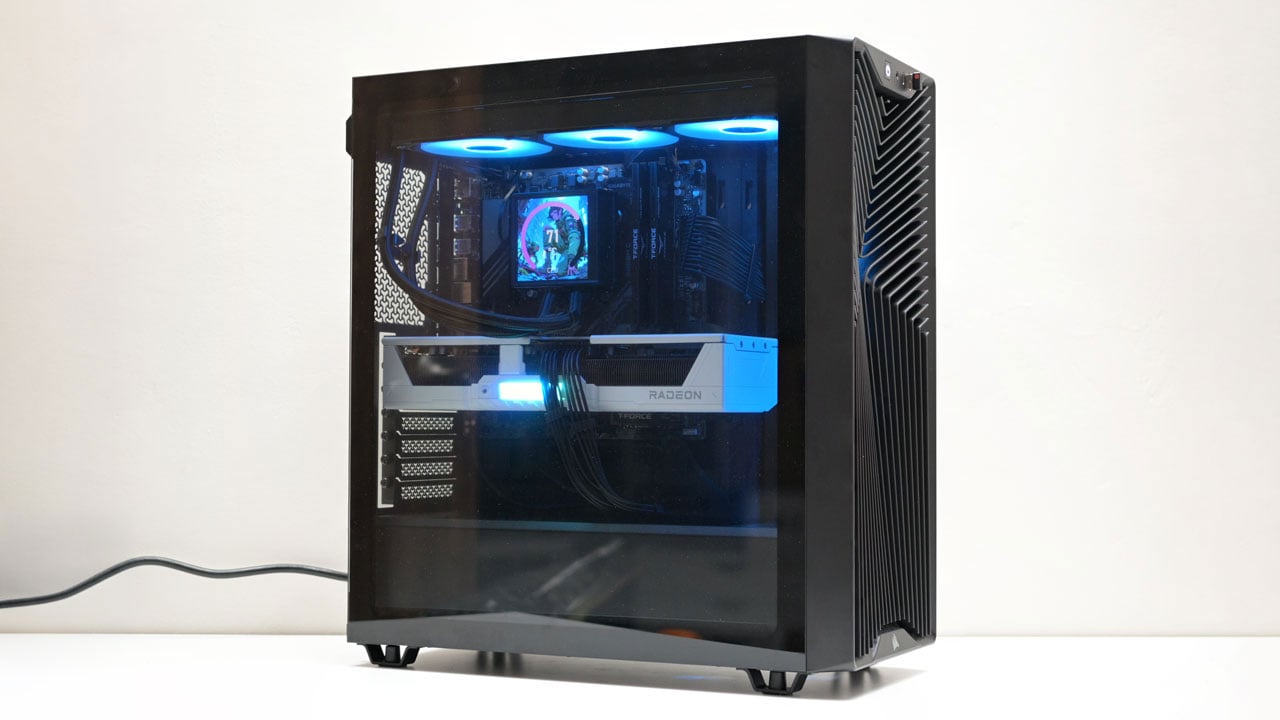

The 3200D RS ARGB strikes a perfect balance between a sleek, polished look and a gamer-focused vibe. While the components inside play a big role, its tempered glass side panel does an excellent job of showing off the entire build in style.
Temperature
We tested the CORSAIR 3200D using an AMD Ryzen 9 7900X at its 170 W profile cooled by a 360 mm AIO, a Radeon RX 9070 XT, dual DDR5-4800, and a PCIe Gen 4 SSD mounted just below the motherboard’s PCH.
CPU temperatures held steady in the 76-78 °C range across all four fan curve settings, with less than 2°C of variance from 25% to 100%. This suggests the case’s airflow isn’t the limiting factor for CPU cooling at this power target. The 7900X’s 170 W profile is actually doing most of the work regardless of fan speed.
GPU temperatures followed a similar pattern, sitting in a tight 49-51 °C range throughout. The RX 9070 XT clearly has enough air intake performance even at the lowest fan setting to keep temperatures in check.
RAM and SSD temperatures were the only components that responded meaningfully to increased fan speed. The RAM dropped from 41.74 °C at 25% to 36.41 °C at 100%, a 5.3 °C improvement, while the SSD eased from 44.99 °C to 43.28 °C. Both sit in areas more directly exposed to the case fans and are passively cooled, so they benefit more from ramping up the fans.
Noise
At 25% PWM, the CORSAIR RS120 ARGB fans stayed nearly inaudible at 32.4 dBA, spinning at just 510 RPM. This is the sweet spot for idle or light desktop use where noise matters more than airflow. Bumping to 50% PWM roughly doubles fan speed to 1059 RPM but only adds 2.4 dBA, bringing noise to 34.8 dBA, still comfortably quiet for most environments.
| Sound Level Meter | Noise | ||
|---|---|---|
| PWM (%) | Noise (dBA) | Speed (RPM) |
| 25 | 32.4 | 510 |
| 50 | 34.8 | 1059 |
| 75 | 44.6 | 1577 |
| 100 | 55.2 | 2083 |
Now, 75% PWM is where the case starts to get noticeably louder. Noise jumps nearly 10 dBA to 44.6 dBA as speed climbs to 1577 RPM, a sharper increase than the previous step. This is likely past the point most users would run continuously outside of gaming or sustained loads.
At 100% PWM, speed tops out at 2083 RPM and noise peaks at 55.2 dBA, which is annoyingly audible. I suggest creating a fan curve within the motherboard’s UEFI to keep the chassis fan speeds at check below 75%.
Final Thoughts
The CORSAIR 3200D RS ARGB comes as a well-rounded mid-tower for anyone chasing airflow, GPU clearance, and a clean build showcase without stretching the budget. CPU temperatures held in the 76-78 °C range across every fan curve tested, GPU temps stayed in a tight 49-51 °C band, and neither component budged more than 2 °C regardless of how hard the fans were pushed.
Where fan speed actually mattered was RAM and SSD cooling, both of which are passively cooled and sit more directly in the case’s airflow path. RAM dropped 5.3 °C from the lowest to highest PWM setting, and the SSD saw a smaller but still measurable improvement. This makes a case for leaving the fans on a moderate curve rather than maxing them out, since the CPU and GPU see essentially no benefit from the extra RPM while noise rises sharply. At 25% PWM the case is nearly silent at 32.4 dBA, and even 50% stays reasonable at 34.8 dBA. Past that, 75% PWM jumps to 44.6 dBA and 100% peaks at a noticeably loud 55.2 dBA, a big jump in noise for very little thermal payoff on the parts that matter most for performance.
Beyond thermals, the build experience is superb. The interior offered enough room that installation felt closer to working in a full-tower than a standard mid-tower, and the 24 mm of cable routing space made even a rushed cable job look presentable. Small details like the captive thumbscrews, the built-in GPU anti-sag arm, and support for reverse-connect motherboards round out a case that feels well-engineered top to bottom. On looks, the front panel and beveled side design give it a distinct enough presence to stand apart from the sea of similarly priced mid-towers, while the tempered glass panel does its job of showing off whatever gets built inside.
Overall, the 3200D RS ARGB is an excellent pick for gamers and system builders who want dependable airflow, generous clearance for large components, and a case that doesn’t demand constant babysitting to stay cool and quiet.
CORSAIR 3200D RS ARGB $69.99
Product Name: 3200D RS ARGB
Product Description: The CORSAIR 3200D RS ARGB is a mid-tower case built for airflow and generous component clearance.
Brand: CORSAIR
Summary
The CORSAIR 3200D RS ARGB is a mid-tower PC case designed for builders who want strong airflow, ample clearance, and a clean aesthetic.
Pros
- Feels closer to a full-tower in usable space
- Cable routing space is generous
- Built-in GPU anti-sag arm is a useful inclusion
- Reverse-connect motherboard support and USB 3.2 Gen 2×2 Type-C front port
- Captive thumbscrews are a small but appreciated touch
- Available in Black, White, and a semi-transparent Smoke finish
Cons
- Noise climbs sharply past 75% PWM
- No rubber grommets in place
