Review | ASRock B560M Steel Legend Micro-ATX

ASRock sent us the the B560M Steel Legend for review. This is a Micro-ATX motherboard, featuring the Intel B560 chipset which is a more affordable entry into Intel’s now PCIe 4.0 capable platform.

ASRock markets the Steel Legend motherboard as rock-solid models with irresistible aesthetics. The former could be tested but the latter is debatable. Anyway, this one comes with four DIMM slots, a single PCIe 4.0 x16 slot and a single PCIe 4.0 x4 M.2 slot. Board supports Wi-Fi too via its third M.2 slot reserved for that purpose.

Disclosure: ASRock sent this B560 motherboard together with a retail sample of the Intel Core i9-11900K for the purpose of this review. The company did not pay me to say anything particular about both. That said, all thoughts and opinions are of my own.

Technical Specifications

Processor
CPU Support Intel 11th/10th Gen Core, Pentium Gold, Celeron Processors
Chipset Intel B560
Socket Intel Socket LGA1200
Memory
SDRAM DDR4 Non-ECC, ECC in Non-ECC Mode
Slot 2x DIMM
Channel Dual Channel
Frequency 4800MHz (Max)
Capacity 128GB (Max)
Graphics
Display Output 1x DisplayPort 1.4, 1x HDMI 2.0
Multi-GPU
Expansion
PCI Express 1x PCIe 4.0 x16, 2x PCIe 3.0 x1
Bifurcation
Storage
SATA 4x SATA
M.2 3x M.2 (PCIe 4.0 x4, PCIe 3.0 x4, 2230)
RAID
Network
Wired 1x Dragon RTL8125BG
Wireless
Audio
DAC Realtek ALC897
Amp Embedded
Ports 5x 3.5mm (Rear, Central, Line-in, Speaker, Microphone), 1x SPDIF
USB
USB 2.0 2x Rear, 2x Header
USB 3.2 Gen 1 4x Type-A Rear, 1x Header
USB 3.2 Gen 2 1x Header
USB 3.2 Gen 2×2 1x Header
Thunderbolt 4
Headers
Fan 5x PWM (CPU, Pump, Aux)
LED 4x LED (RGB, Addressable)
Dimensions
Length 240mm
Width 240mm
Height 45mm
Weight

Packaging and Accessories

ASRock had the B560M Steel legend packed in their usual padded packaging.

The product comes with the following items inside:

  • 2x SATA cables
  • 2x M.2 SSD screw
  • 1x M.2 Hex screw
  • Backplate
  • ASRock decals
  • Support DVD
  • User manual
  • Firmware manual
  • 2x Velcro straps

What we got here are essentials plus with some extras.

Design, Build and Connectivity

ASRock went with white and silver for the B560M Steel Legend’s colorway. This is a nice contrast to the rest of the board’s components. Now theme aside, the passive cooling solution for the board are all aluminum – from the VRMs, M.2 slot and to the PCH. A shame we don’t have one for the secondary M.2 slot.

Back panel shows more about the soldering job involved into making the board. No red flags raised here but you have to make sure nothing comes in contact with the tantalum capacitor near the PCH.

Powering the CPU is a 10 phase power design featuring 60A chokes and MOSFETs buried under the aluminum heatsinks. We also have two of the five fan headers here along with two 4-pin LED headers.

We have the usual suspects here as far as storage headers are concerned. Usually, though you’d get a USB 3.2 Gen 2×2 at the back panel I/O but ASRock decided to put a Type-C header for it. If you need the ultra fast interface, you really have to get a case that could negotiate with it.

Bottom row is busy as usual. We have the second M.2 slot here along with the 3rd one reserved for Wi-Fi modules in a 2230 form factor (Key E). The extra fan and LED headers are located here as well.

Rear I/O ports are decent. Recent boards I’ve tested doesn’t come with SPDIF out so I appreciated ASRock’s effort into including it here along with the legacy PS/2 port.

Board appear to be rock solid and well designed out of the box. ASRock even went with open-ended PCI 3.0 x1 slots just to make sure that it could accommodate physically longer interfaces with x1 support.

Firmware Interface

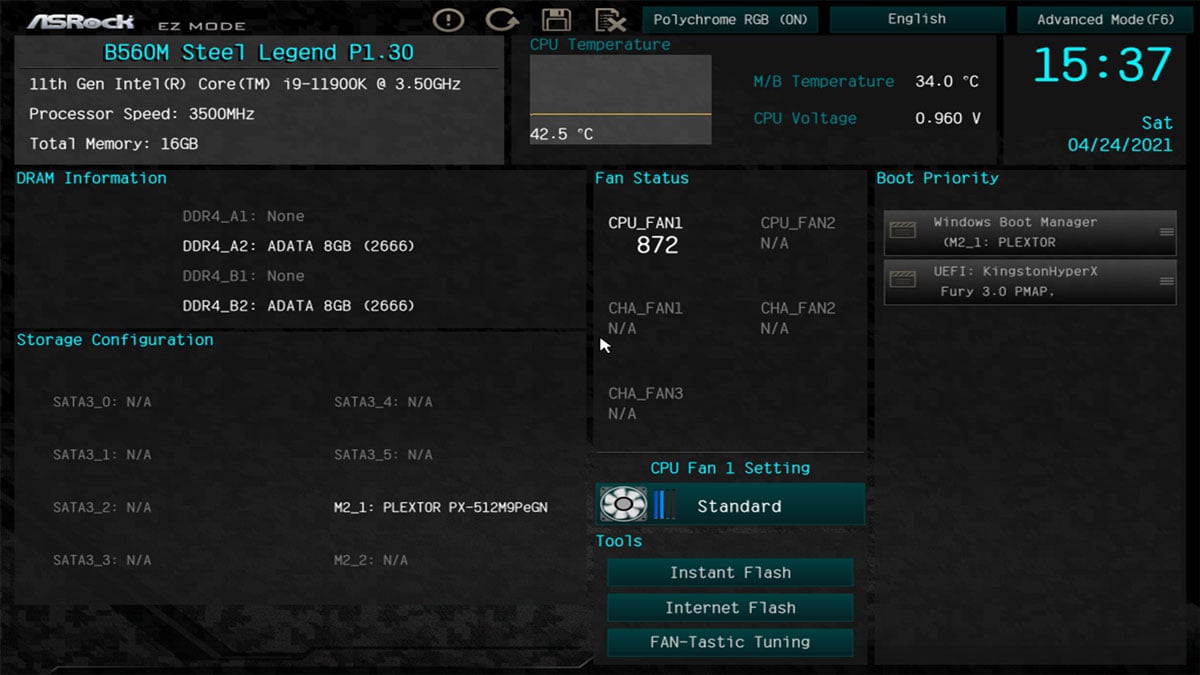

ASRock went simple with the B560M Steel Legend’s UEFI. The Easy Mode is what it is, featuring shortcuts for its features and statistics from the most important sensors.

There are 8 main menus here with the OC Tweaker as your go to menu for CPU, DRAM and Voltage configuration. Note that overclocking is strictly enabled for memory alone. For CPU overclocking, you really have to get a Z590 chipset based motherboard.

Advanced is of course where the PCH options could be found. Power state related options for the CPU are also located on this menu.

Tool is where the defining features of the motherboard is located. RGB lighting for the translucent Steel Legend logo could be disabled here along with network based customer support. You may even securely wipe your SSD here prior to installing Windows or your desired OS.

H/W monitor is self explanatory. Tons of sensors here though with a decent update rate.

The FAN-Tastic Tuning is a rather simple fan speed profiler. No dedicated pump header here so make sure the pump is running constantly at 100% for a more consistent performance.

Firmware is good. ASRock even added a mini manual for it. RAID support is no where to be found though.

Test Setup and Methodology

Motherboard performance is evaluated by industry standard benchmark tools. To minimize interference, the system is tested with the following software configurations:

  • UEFI configuration: Default
  • Windows Power Plan: Balanced
  • Windows Game Mode: Disabled
  • Windows Game Bar: Disabled
  • Windows Security: Disabled

Outlined below is the test system specifications as well as the software and or applications used for the review:

Test System Specifications
CPU Intel Core i9-11900K
Motherboard ASRock B560M Steel Legend
Cooler Noctua NH-U12S Redux
Memory ADATA Premier 2666MHz 16GB
GPU ASUS Phoenix GTX 1660 SUPER 6GB
Storage Plextor M9Pe PCIe 3.0 NVMe 512GB
Case Mechanical Library JXK-K3
PSU Thermaltake Toughpower GF1 650W
Display LG UF680T
OS Microsoft Windows 10 Pro 64-bit

Temperature, Power and Noise:

  • AIDA64 Extreme Edition – System Stability Test

CPU, Memory and GPU:

  • AIDA64 Extreme Edition – Quick Report, Cache and Memory, GPGPU Benchmark

Storage:

  • CrystalDiskMark – Sequential Benchmark

Audio:

  • RightMark Audio Analyzer – Test Report

Network:

  • NetIO-GUI – Network Transfer Rate

Temperature

We utilized the AIDA64 System Stability Test to check out how the system handles thermals. For this measurement, we loaded the stress test with the CPU as the only option enabled. Temperature readings are taken with HWiNFO with an ambient temperature of 27°C. CPU cooler used for this test is the Noctua NH-U12S Redux.

Model VRM, °C Chipset, °C M.2, °C
ASRock B560M Steel Legend 36~39 40~40 48~60
ASUS Z590-I Gaming 40~49 56~62
GIGABYTE Z590I Vision D 39~42 54~64
ASUS B550-I Gaming 34~36 52~57

First order in the review is the CPU temperature which is affected by both power and fan profile. Here, we could see the Core i9-11900K reaching 70°C which is still good considering the peak in vCore – more on this later.

VRM, chipset and the main M.2 SSD maintained excellent thermal output though when they are under load.

Power Consumption

Total system power is also checked out. Power readings are then recorded with a watt-meter while voltage readings for the Vcore and the most common rails are taken via HWiNFO.

Model Vcore, v +3.3, v +5, v +12, v
ASRock B560M Steel Legend 0.712~1.400 3.296~3.312 5.040~5.064 11.808~11.904
ASUS Z590-I Gaming 0.746~1.225 3.376 5.040 12.096
GIGABYTE Z590I Vision D 0.744~1.296 3.344 5.070~5.040 12.096~12.024
ASUS B550-I Gaming 0.912~1.456 3.376~3.392 5.020~5.60 11.980~12.076

For the most common rails, there isn’t much to say since all of them are within spec at idle and at load. Vcore is a different animal though, peaking at 1.400v which is aggressive. Still, this is something you’d want to tweak and is possible to do via the voltage configuration sub menu of the UEFI.

Noise Level

Noise level is also taken into consideration to check the differences between fan controllers. Decibel readings are taken with an industrial grade A-weighted sound-level meter. Ambient noise floor is ~30dB(A).

Model CPU Fan Speed, RPM
ASRock B560M Steel Legend 771~1624
ASUS Z590-I Gaming 677~1173
GIGABYTE Z590I Vision D 989~1687
ASUS B550-I Gaming 635~1141

Noise level is pretty similar to the GIGABYTE Z590-I due to the added voltage needed to run the CPU at full load but with a bit tamer maximum RPM level to boot. There’s a merit to adjust this but I’d rather adjust the voltage for less power and heat first.

CPU, Memory and GPU:

CPU performance is gauged via AIDA64’s CPU Queen Benchmark. This simple integer benchmark focuses on branch prediction capabilities and misprediction penalties of the CPU. Simple, easy to run and replicate.

Memory latency is also tested with the Cache and Memory Benchmark built within AIDA64. Latency is what interest us here due to how motherboard designs could affect it.

The graphics card and PCIe interface performance are also checked with AIDA64 using the GPGPU Benchmark. We selected the Single-Precision FLOPS benchmark for this test. Results are posted in GFLOPS.

Performance is in line with the Z590 boards but it edges them at the memory latency result. ASRock is not joking around this area.

Storage Interface

CrystalDiskMark is a simple storage benchmark widely used in the industry. For the storage test, we aim to check out the performance of the most commonly used interfaces found in a motherboard. The sequential read and write are the focus here. Storage devices used are the 256GB (External) and 512GB (Internal) Plextor M9Pe PCIe 3.0 NVMe SSDs.

Model USB 3.2, MB/s USB 3.0, MB/s USB 2.0, MB/s SATA, MB/s
ASRock B560M Steel Legend 1050↓ 802↑ 459↓263↑ 38↓ 38↑ 480↓ 440↑
ASUS Z590-I Gaming 1062↓ 799↑ 439↓ 450↑ 38↓ 37↑ 484↓ 451↑
GIGABYTE Z590I Vision D 1049↓ 802↑ 440↓ 458↑ 38↓ 38↑ 481↓ 444↑
ASUS B550-I Gaming 1016↓ 794↑ 444↓ 419↑ 40↓ 41↑ 481↓ 447↑

Another excellent performance output from the ASRock B560M Steel Legend here with the exception of the USB 3.0 / USB 3.2 Gen 1 interface. It is the fastest at read with a 459MB/s output but the write performance could be better. We did not test the USB 3.2 Gen 2×2 though. We simply do not have an internal Type-C that could handshake with the interface.

Audio Interface

The RightMark Audio Analyzer is a nifty tool to measure the quality of the motherboard’s audio interface. Our results are obtained by playing and recording test tones passed through the audio chain using the Focusrite Scarlett Solo as the ADC. Sampling rate and bit-depth are at 48KHz and 24-bit respectively.

Frequency response should be as flat as possible with acceptable minor deviation across the frequency range of around +/-0.5dB. Test signal for the frequency range contains harmonics from 5Hz to 22KHz.

Now THD+N estimates the amount of harmonic distortion that takes place when a signal with large amplitude passes the testing chain. The test signal used here is a sine wave at 1kHz.

IMD on the other hand estimates amount of intermodulation distortions when a more complex signal passes through a test chain. Measurement uses a two sine wave test signal consisting of low frequency 60Hz tone linearly mixed with a high-frequency 7KHz tone.

Model FR, dB(A) THD+N, dB(A) IMD+N, %
ASRock B560M Steel Legend +0.00, -0.02 -81.3 0.00815
ASUS Z590-I Gaming -0.01, -0.21 -84.0 0.00695
GIGABYTE Z590I Vision D +0.02, -0.18 -85.5 0.00147
ASUS B550-I Gaming -0.10, -0.18 -86.2 0.00786

Objectively, the ASRock has a decent noise level based on our RMAA audio chain test. THD + Noise however picks up the 60Hz power hum along with some harmonics at 2KHz (-90dB) and beyond. IMD looks better though together with the flat frequency response.

Subjectively, the Realtek enabled B560M motherboard with its embedded amplifier will suffice even for gamers owning a Sennheiser HD58X – able to drive the 150Ω impedance gear at decent levels. This board’s audio solution could also power my HiFiMan HE400i but that’s already pushing it.

Network Interface

NetIO-GUI is a straight forward Windows frontend application for the “netio” command-line utility. This benchmark requires a client and server for it to work. The ASUS ROG Rapture GT-AC2900 is our router of choice here to test the Ethernet and Wi-Fi performance of our motherboard.

Model 2.4GHz, MB/s 5GHz, MB/s
ASRock B560M Steel Legend
ASUS Z590-I Gaming 11↓ 13↑ 57↓ 57↑
GIGABYTE Z590I Vision D 11↓ 12↑ 55↓ 36↑
ASUS B550-I Gaming 9↓ 10↑ 42↓ 37↑

Network performance is rock solid. Nothing to complain here really.

Software, Lighting and Special Features

ASRock bundled the Steel Legend with the following applications which are downloadable via the ASRock Live Update & APP Shop:

  • ASRock Motherboard Utility (A-Tuning)
  • ASRock Dragon 2.5G LAN Software
  • ASRock Polychrome SYNC

More could be downloaded there but I have not tested it. Similarly, we did not test the RGB lighting of the board. The onboard one works though but we did not took any pictures. To learn more about the board’s features, head over to the official landing page linked at the introduction of this review.

Final Thoughts

The ASRock B560M Steel Legend is a Micro-ATX motherboard built to house the latest Intel 11th generation processors and it just works. There’s nothing exceptionally awesome about it except for the memory latency and the price but then again, if you look closely, it’s a board made for those who needs a good platform to put their intended stuff in.

For example, the board doesn’t have Wi-Fi and you could add an internal one via its thrid M.2 slot. There are also 2x PCIe 3.0 x1 slots for added expansion and a 2.5GbE LAN as an added bonus. Board also supports ECC modules in non-ECC mode. This might sound trivial but those features are sometimes enough to sway buyers into picking this board up.

Of course there are missed opportunities still such as the decision to put the Gen 2×2 interface to the header instead of the rear I/O and the aggressive CPU power at peak. The latter could be easily fixed via the UEFI and we could say the internal super speed USB 3.2 interface could be a feature that some might want to check out.

In closing, the B560M Steel Legend is a well built product. Course it’s not perfect so if the implementations made by ASRock sounds good to you then it is a go. This board is still recommended by yours truly though, no doubt about that.

TechPorn Awards 2018 (2)

ASRock B560M Steel Legend

  • Performance - 9/10

    9/10

  • Build Quality - 9/10

    9/10

  • Connectivity - 8/10

    8/10

  • Firmware - 8/10

    8/10

  • Features - 8/10

    8/10

8.4/10

Summary

The ASRock B560M Steel Legend is a nice Micro-ATX motherboard at its designated price point. However, you have to keep in mind its strengths over its weaknesses in order to be utilized at its full potential.

Pros

  • Excellent memory latency
  • Supports memory overclocking + ECC compatible as well
  • Decent enough audio solution
  • 2.5GbE LAN port
  • 5x PWM fan headers, 4x LED headers
  • 3x M.2 slot – one for a possible Wi-Fi upgrade
  • Proper VRM, SSD and PCH thermal solution

Cons

  • USB 3.0 write performance
  • Aggressive power profile (CPU)
  • Internal USB 3.2 Gen 2×2 not for everyone
