The BIOSTAR B550M-Silver is a relatively budget friendly AMD B550 chipset based motherboard. This is a $150 USD mATX (microATX) model with all the expected standard issued features of the said AM4 platform.

Such features includes the now standard PCIe 4.0 support for both expansion and storage devices, support for the AMD Ryzen 5000 series CPUs and high frequency DDR4 memory kits. Now notable in-house features includes a dedicated row of LED headers, surge protected 2.5GbE LAN, auto overclocking and support for an additional M.2 2230 Wi-Fi card.

Disclosure: BIOSTAR sent the B550M-Silver for the purpose of this review. The brand did not ask me to say anything particular about it so all thoughts and opinion are of my own. I’ve had this motherboard for months so the measurements you’ll see here are way past the product’s FOB (fresh out of the box) state.

Technical Specifications

Processor
CPU Support AMD Ryzen 3rd Gen (Matisse/ Renoir), Ryzen 4th Gen (Vermeer)
Chipset AMD B550
Socket AMD AM4
Memory
SDRAM DDR4 (ECC, Non-ECC)
Slot 4x DIMM
Channel Dual Channel
Frequency 4400 MHz (OC)
Capacity 128 GB (max)
Graphics
GPU
Multi-GPU AMD CrossFire Technology
Expansion
PCI Express 1X PCIe 4.0 x16, 1x PCIe 3.0 x16, 1x PCIe 3.0
Bifurcation
Storage
SATA 6x SATA III
M.2 1x PCIe 4.0 x4, 1x PCIe 3.0 x4
RAID RAID 0/1/10 (SATA III)
Network
LAN Intel 2.5Gb Ethernet
WLAN Add-on via M.2 2230 slot
Bluetooth
Audio
DAC ALC1150
ADC ALC1150
Amplifier
Channel 7.1
Rear IO
USB 2x USB 3.2 Gen 2, 4x USB 3.2 Gen 1, 4x USB 2.0
eSATA
Thunderbolt
LAN RJ-45
Audio 3x 3.5mm
Display DisplayPort 1.4, HDMI 2.1, DVI-D
Front IO / Internal
USB USB 3.2 Gen 1, 4x USB 2.0
SATA 6x SATA III
M.2 3x M.2
Audio AAFP
Fan 4x 4-Pin
LED 4-Pin RGB, 2x 3-Pin RGB
Dimensions
Length 244mm
Width 244mm
Height 45mm
Weight

Packaging and Accessories

BIOSTAR had the B550M-Silver packed inside a standard motherboard packaging. Nothing fancy about it.

BIOSTAR B550M Silver Images 1

The packaging should come with the following items inside:

  • BIOSTAR B550M-Silver
  • 4x SATA III cable
  • Driver and software DVD
  • Back plate
  • Quick installation guide

Pretty standard scope of delivery we got here. Not whole a lot else going on here.

Design, Build and Connectivity

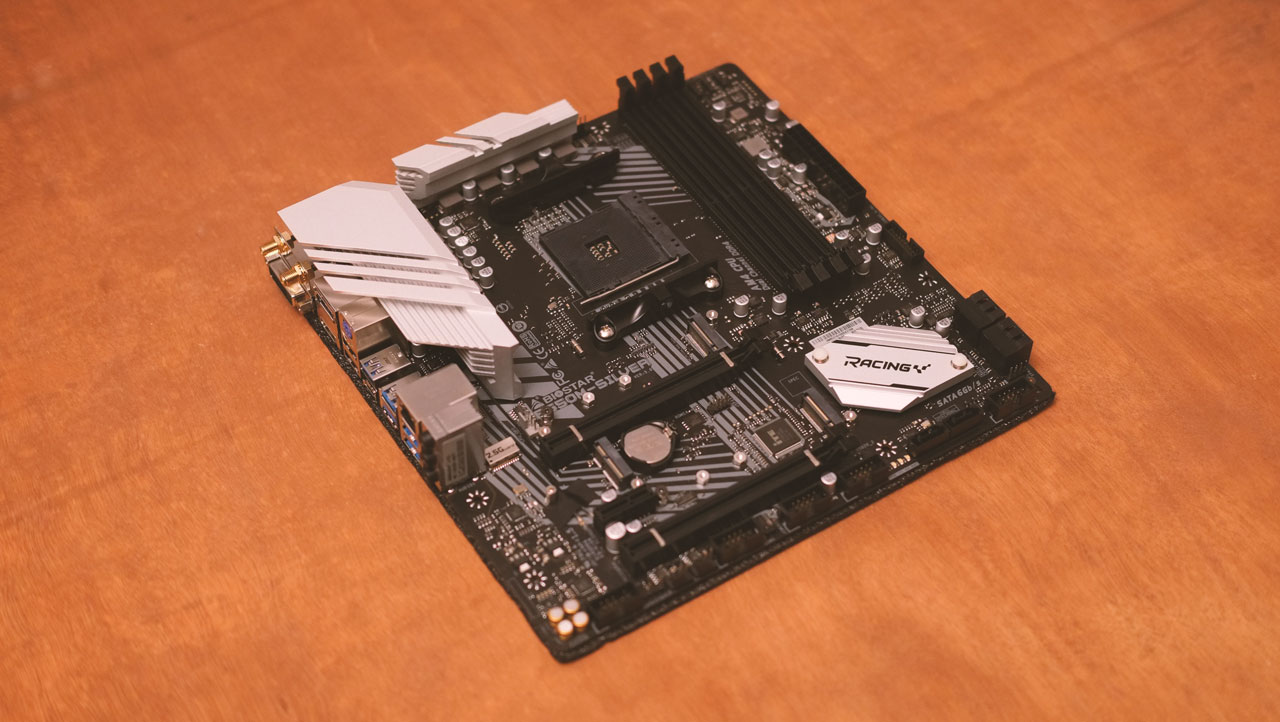

The BIOSTAR B550M-Silver is, for the lack of better word, a motherboard designed with simplicity in mind – with a bit of edginess in tow. Layout is simple and we’ve got proper heat-sinks for the most important components. This is a microATX motherboard featuring four memory slots and two full size PCIe slots, along with support for three M.2 expansion devices – one of which is dedicated for a Wi-Fi card.

BIOSTAR B550M Silver Images 2

The back shows more about the soldering job involved into making the motherboard. No issue to see here – as with many electronic products designed at Taiwan.

BIOSTAR B550M Silver Images 9

I am not entirely sure about the power phase configuration of the motherboard but it appears it comes with at least 6 power phases plus another one for the memory. We of course have the 8-pin power connector here, the 4-pin fan header and three LED headers.

BIOSTAR B550M Silver Images 7

Internal storage ports are decent enough this side of the board. We have four of the 6 SATA III ports here, an internal USB 3.2 Gen1 header and the 24-pin power connector for the motherboard.

BIOSTAR B550M Silver Images 6

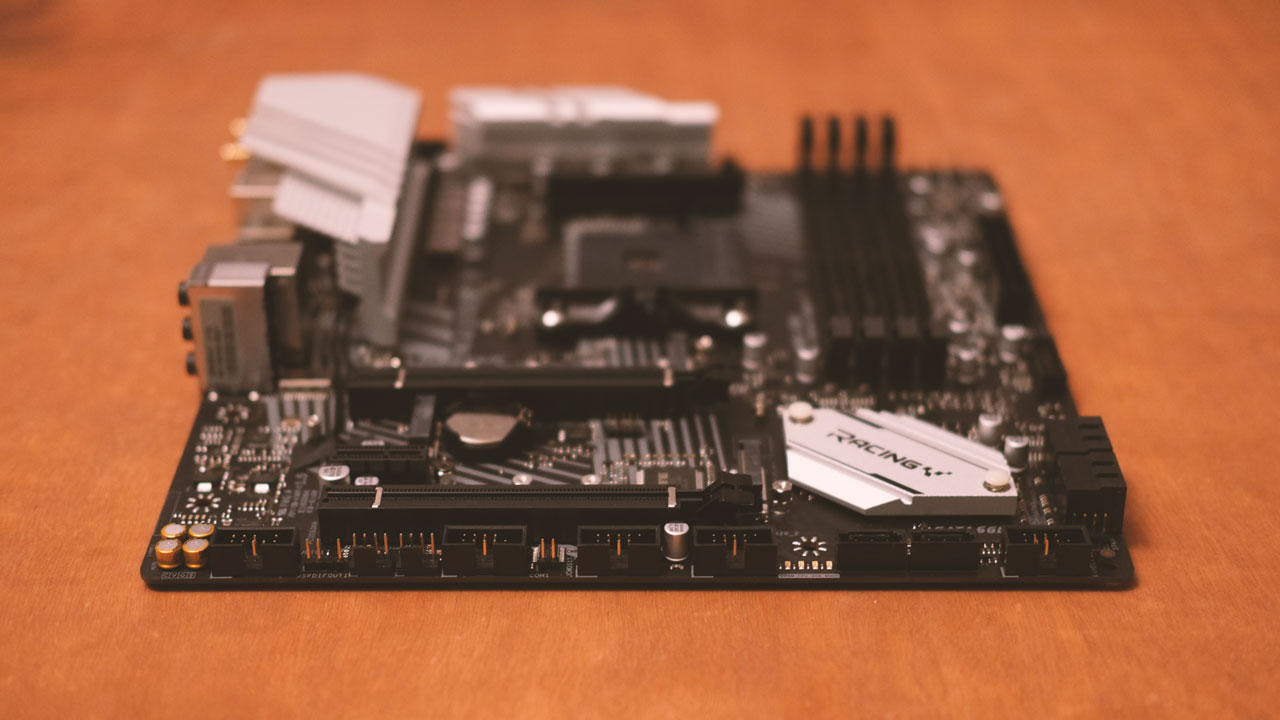

We have the usual assortment of headers down below along with the remaining 4-pin fan, SATA and USB headers. We also get a glimpse of the reinforced full size PCIe slots here.

BIOSTAR B550M Silver Images 4

Rear I/O port configuration is more than adequate – with added support for legacy devices (combo PS/2, DVI-D, USB 2.0). We also have dual SMA terminals here for a Wi-Fi or Bluetooth add-on.

BIOSTAR B550M Silver Images 8

I don’t have much to complain with the B550M-Silver’s design, build quality and layout – yet. Perhaps a nitpick would be the CMOS battery location.

Firmware Interface

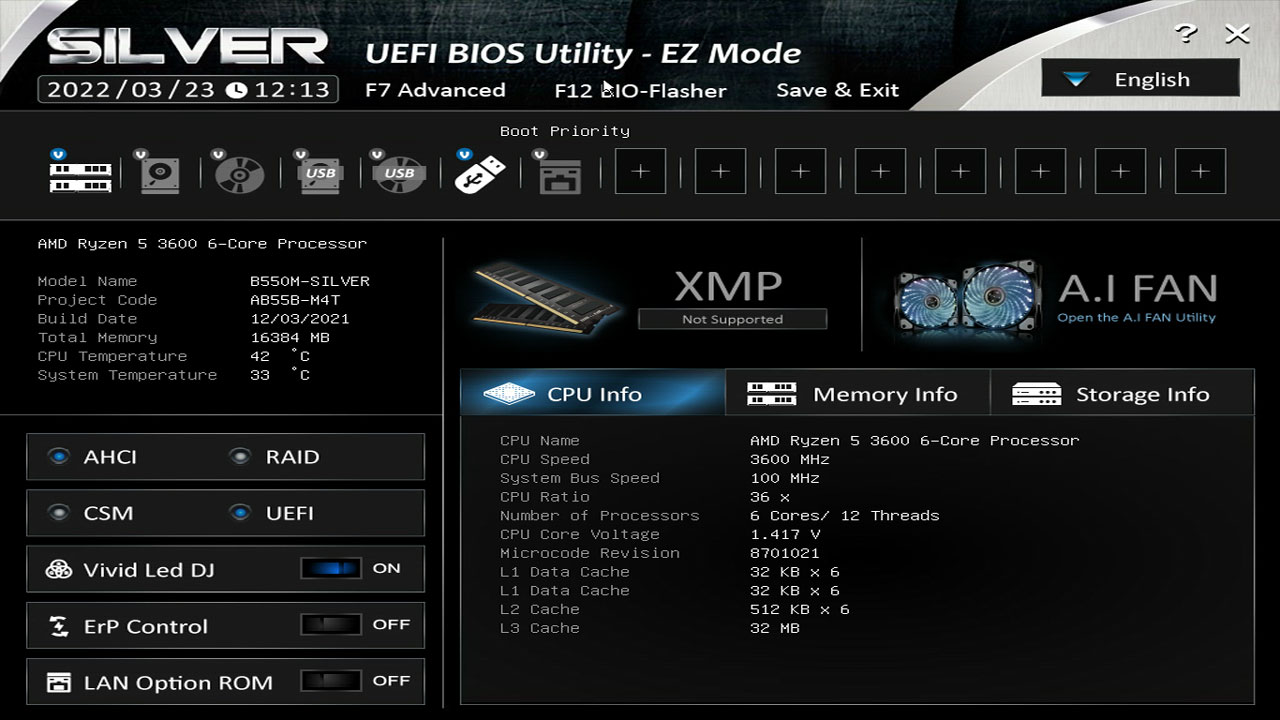

BIOSTAR had the B550M-Silver shipped with their firmware interface dubbed as the UEFI BIOS Utility. It comes with two modes like most motherboard interfaces nowadays – EZ and Advanced mode. EZ mode is a simplified UI where the most important options are already laid out for you to get started.

BIOSTAR B550M Silver UEFI BIOS 3

Advanced mode is where the money is at if you want to maximize this motherboard’s potential – especially if we’re going to talk about the Tweaker menu. CPU and memory overclocking could be configured here with ample enough control over the voltage and frequency.

BIOSTAR B550M Silver UEFI BIOS 4

The B550M-Silver also comes with a dedicated menu for fan control. Nothing’s A.I. about this but I appreciated BIOSTAR’s decision to provide full control up to 100% PWM Duty Cycle. Well known motherboard vendors has limitations here for safety reasons but for those who knows what they were doing, this is awesome.

BIOSTAR B550M Silver UEFI BIOS 1

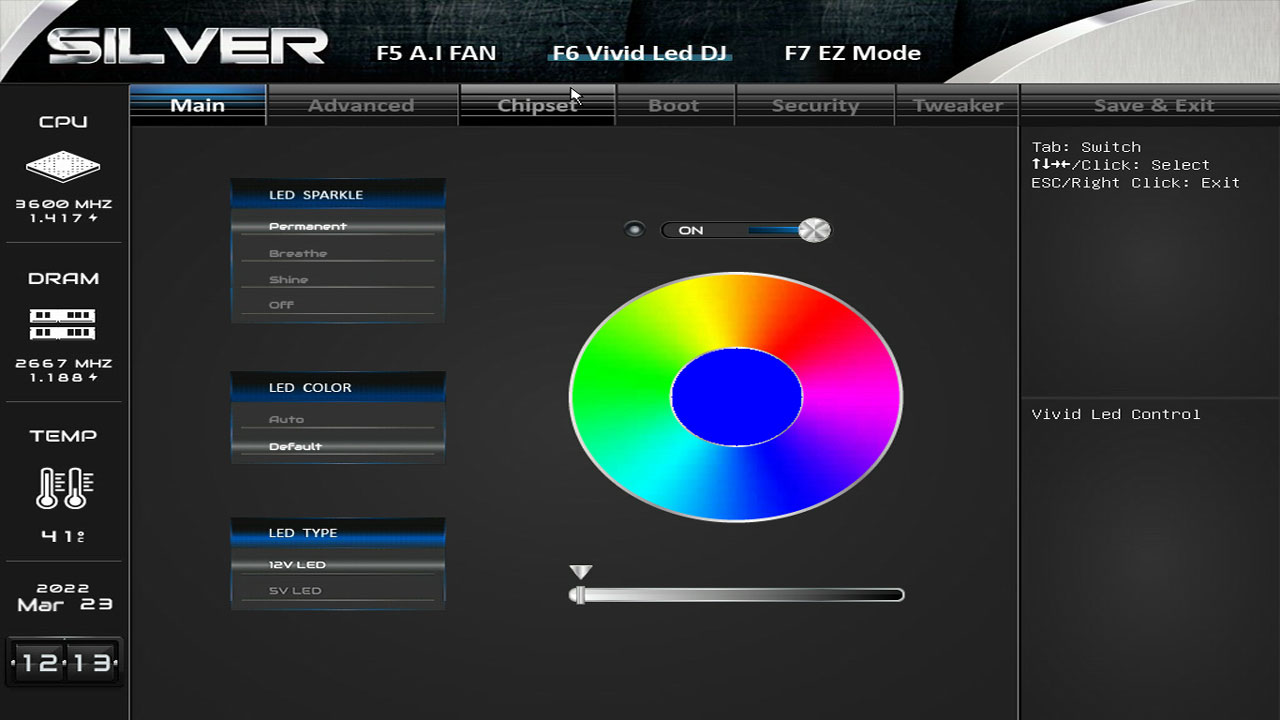

Not sure why a lighting option is called Vivid LED DJ but BIOSTAR added such feature to the plate. Not particularly fond of RGB lighting stuff but you get firmware support for such customization if you wish to use the LED headers.

BIOSTAR B550M Silver UEFI BIOS 2

Aside from the 4:3 screen ratio, a somewhat finicky mouse support and fan profiles saving on their own even if you don’t, I have no other complaints with this board’s UEFI.

Test Setup and Methodology

Our test setup relies on the measurements taken from industry standard benchmark tools and real-world applications. It is important to note that we are testing the review sample after burn-in, with at least 24-hours of uptime. This is done so to negate the FOTB (fresh out the box) state of the DUT (device under test), yielding better benchmarking consistency.

Test System Specifications
CPU AMD Ryzen 5 3600
Motherboard BIOSTAR B500M-Silver
Cooler Noctua NH-U12S Redux
Memory ADATA Premier 2666MHz 16 GB
GPU GALAX RTX 2060 EX White 6 GB
Storage Plextor M9PE NVME 512GB
Case Mechanical Library JXK-K2
PSU Thermaltake Toughpower GF1 850 W
Display LG UF680T
OS Microsoft Windows 10 Pro 64-bit

The DUT is tested with the following configuration from our test system:

  • UEFI configuration: Default
  • Windows Power Plan: Balanced

Arithmetic

Pi calculation speed is measured in Seconds (s). This is done via SuperPI.

BIOSTAR B550M Silver Benchmarks 2

Roots calculation speed is measured in Seconds (s). This is done via WPrime.

BIOSTAR B550M Silver Benchmarks 1

No surprise here. The Ryzen 5 3600 equipped BIOSTAR B550M-Silver is the slowest system on the arithmetic benchmarks. You’d see this trend on most benchmarks simply due to the fact that everything else we measured with the same parameters are expensive TOTL products from their categories – respectively.

3D Rendering

Cinema 4D score is measured in Points (pts). This is done via Cinebench R20.

BIOSTAR B550M Silver Benchmarks 3

V-Ray 5 score is measured in V-Ray samples (vsamples). This is done via V-Ray 5 Benchmark.

BIOSTAR B550M Silver Benchmarks 4

Same trend we got here on the rendering benchmarks. Not a bad result though.

Digital Content Creation

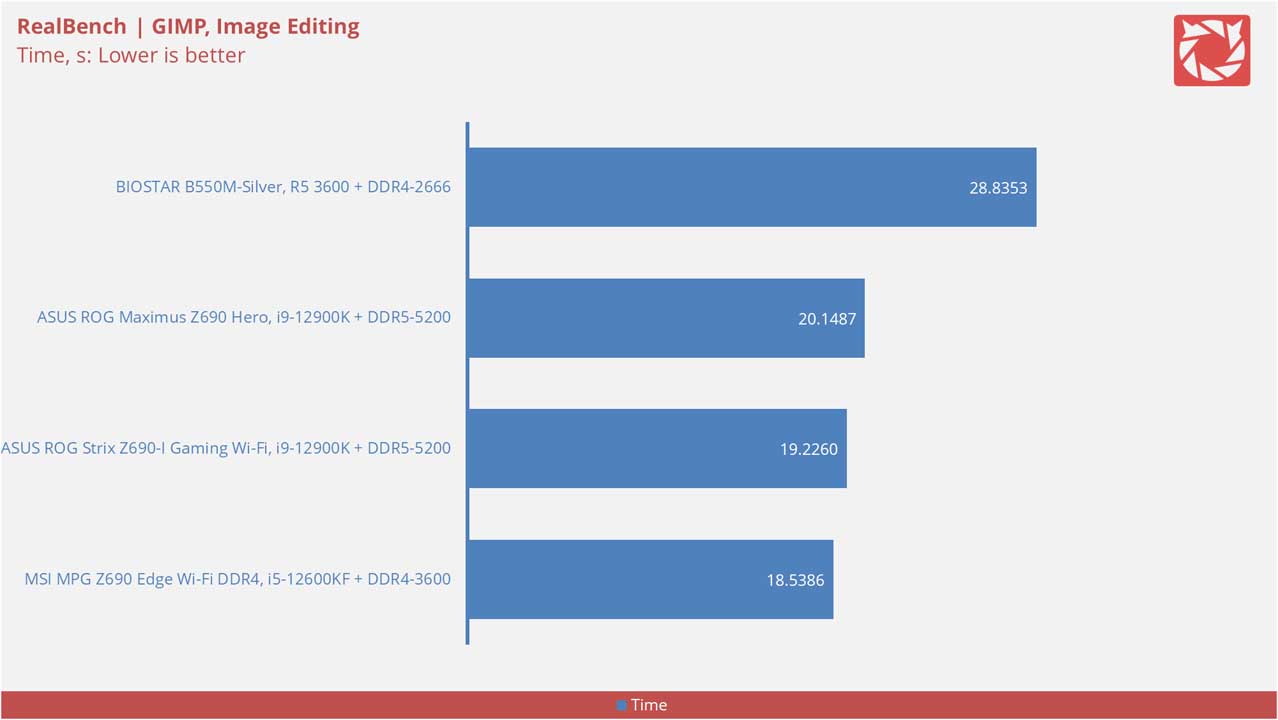

Image editing speed is measured in Seconds (s). This is done via RealBench and its built-in GIMP benchmark.

BIOSTAR B550M Silver Benchmarks 5

Video encoding speed is measured in Seconds (s).This is done via RealBench and its built-in HandBrake benchmark.

BIOSTAR B550M Silver Benchmarks 6

While the Core i5-12600KF is a newer processor and is paired with a faster DDR4 kit, the Ryzen 5 3600 with the B550M-Silver is actually faster – HandBrake benchmark considered.

Web Browsing

Web browsing speed is measured in Seconds (s). This is done via PCMark 10 and its built-in Chromium benchmark.

BIOSTAR B550M Silver Benchmarks 7

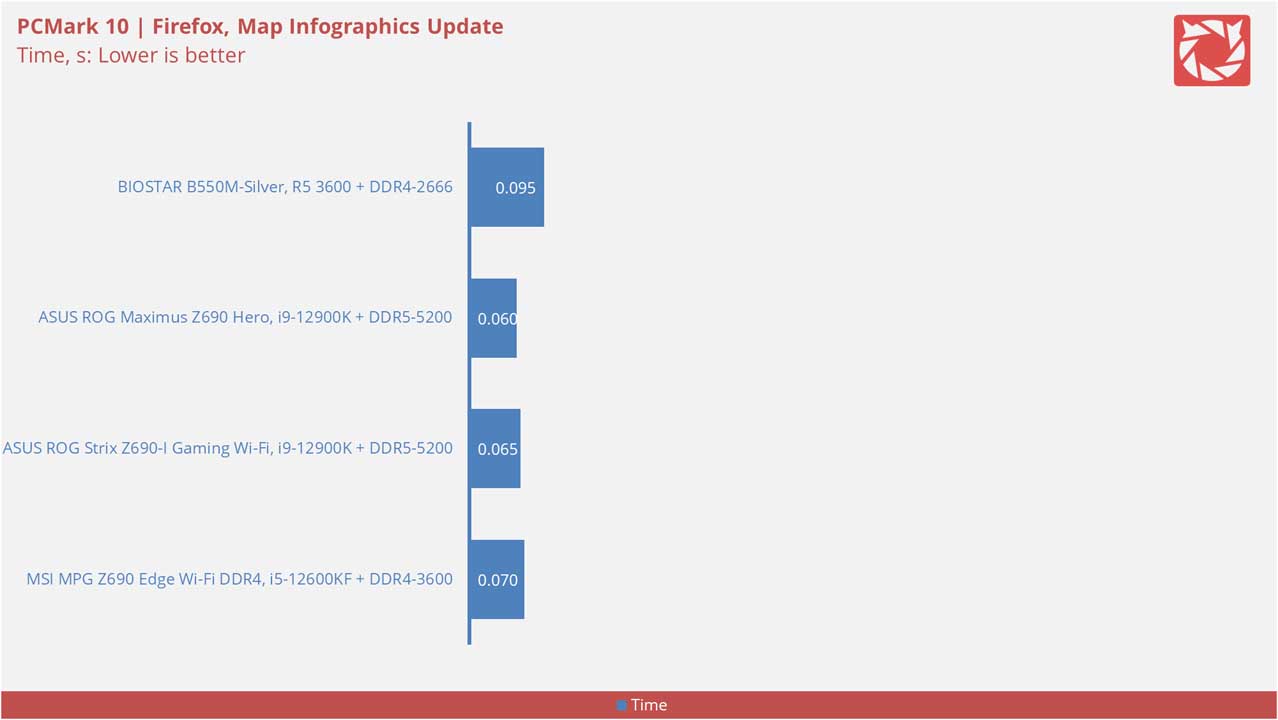

Web browsing speed is measured in Seconds (s). This is done via PCMark 10 and its built-in Firefox benchmark.

BIOSTAR B550M Silver Benchmarks 8

As for browser performance, I don’t see any reason to castrate the B550M-Silver from the rest. It is slower but not that it would matter – unless you’re working on script heavy pages.

Office Productivity

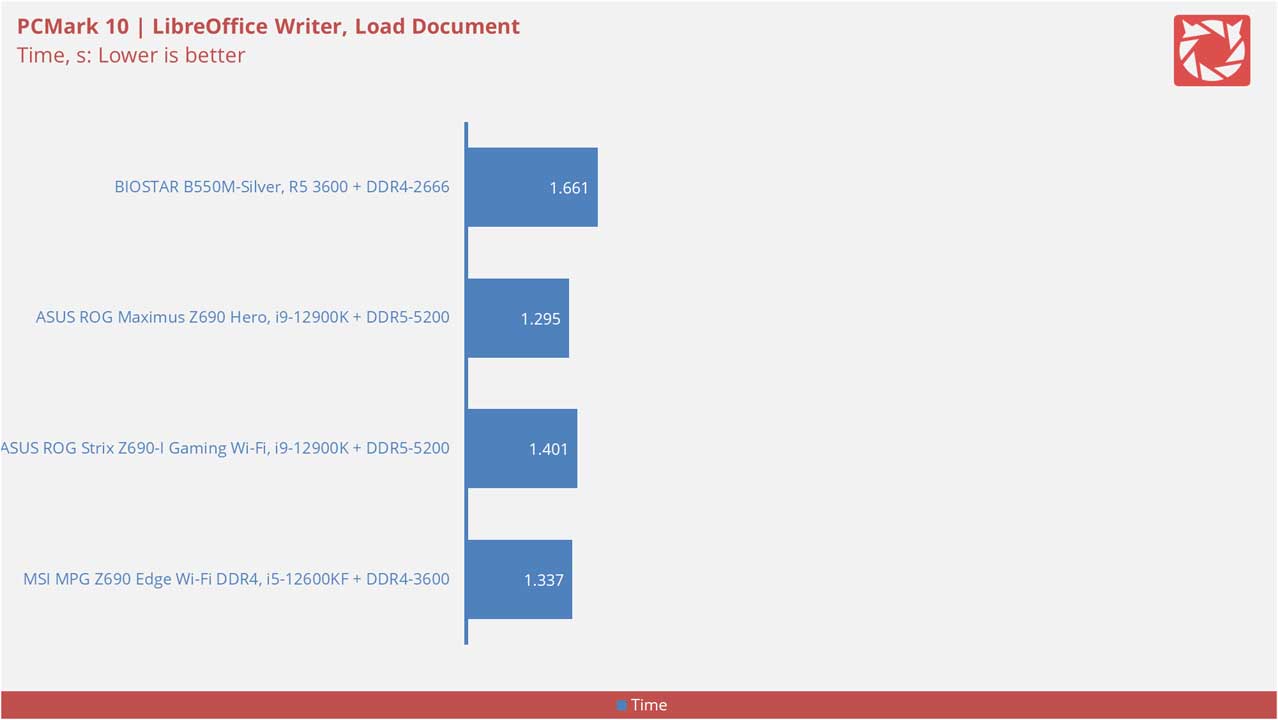

Productivity speed is measured in Seconds (s). This is done via PCMark 10 and its built-in LibreOffice Writer benchmark.

BIOSTAR B550M Silver Benchmarks 9

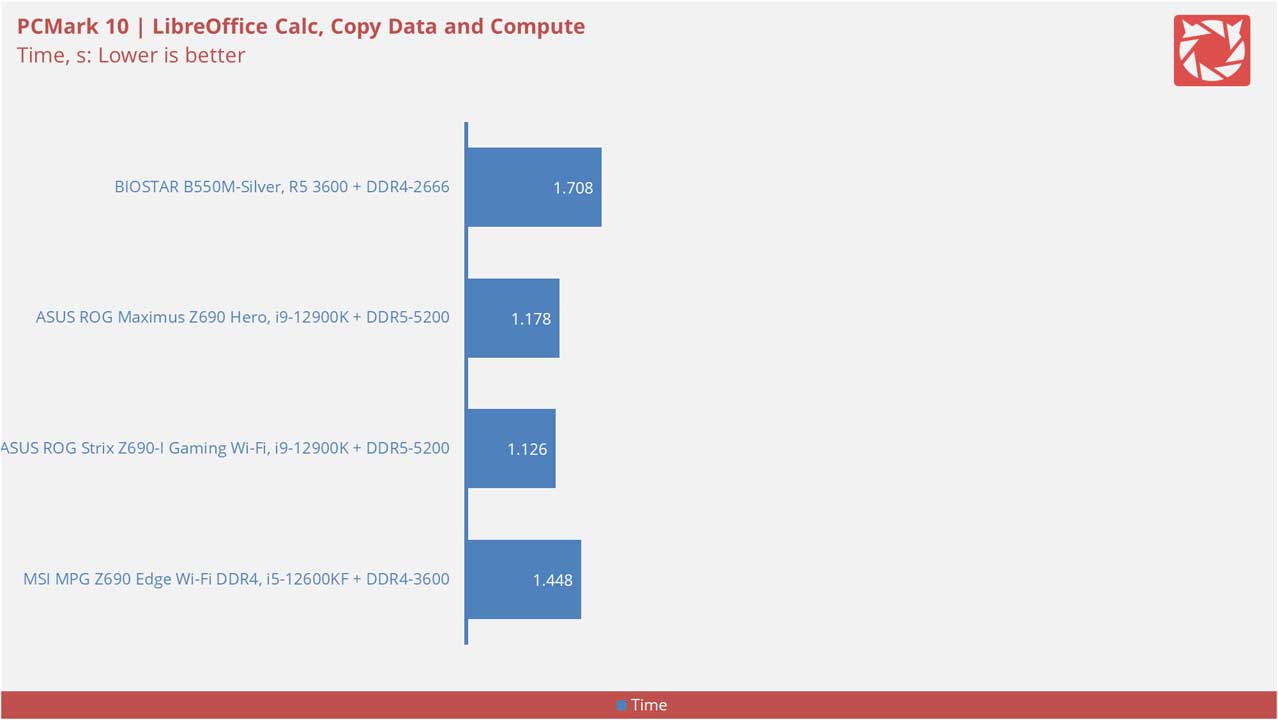

Productivity speed is measured in Seconds (s). This is done via PCMark 10 and its built-in LibreOffice Calc benchmark.

BIOSTAR B550M Silver Benchmarks 10

Same thing could be said for the office productivity benchmarks.

Compression

Compression speed is measured in Kilobytes per Second (KB/s). This is done via WinRAR and its built-in benchmark.

BIOSTAR B550M Silver Benchmarks 11

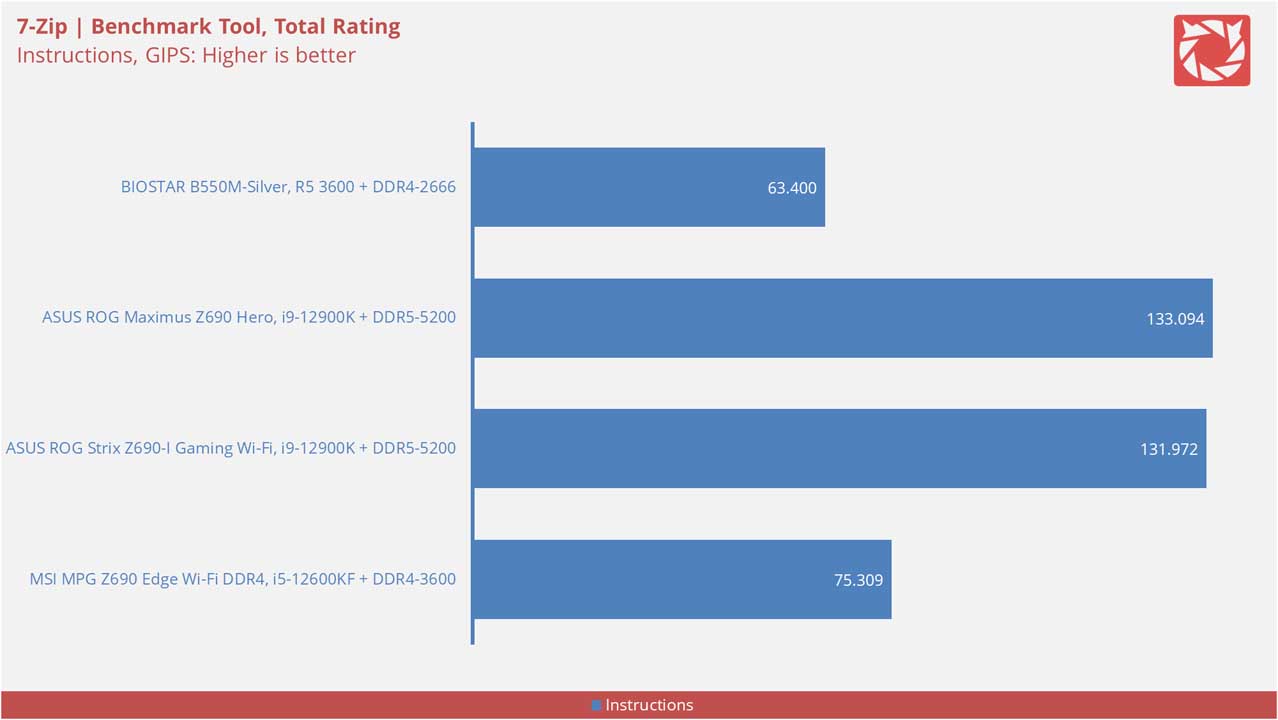

Instruction speed is measured in Giga-Instructions per Second (GIPS). This is done via 7-Zip and its built-in benchmark.

BIOSTAR B550M Silver Benchmarks 12

Trend continues here. Nothing to complain.

Gaming

Frame rate is measured in Frames per Second (FPS). This is done via Final Fantasy XVI: Endwalker and its official benchmark.

BIOSTAR B550M Silver Benchmarks 13

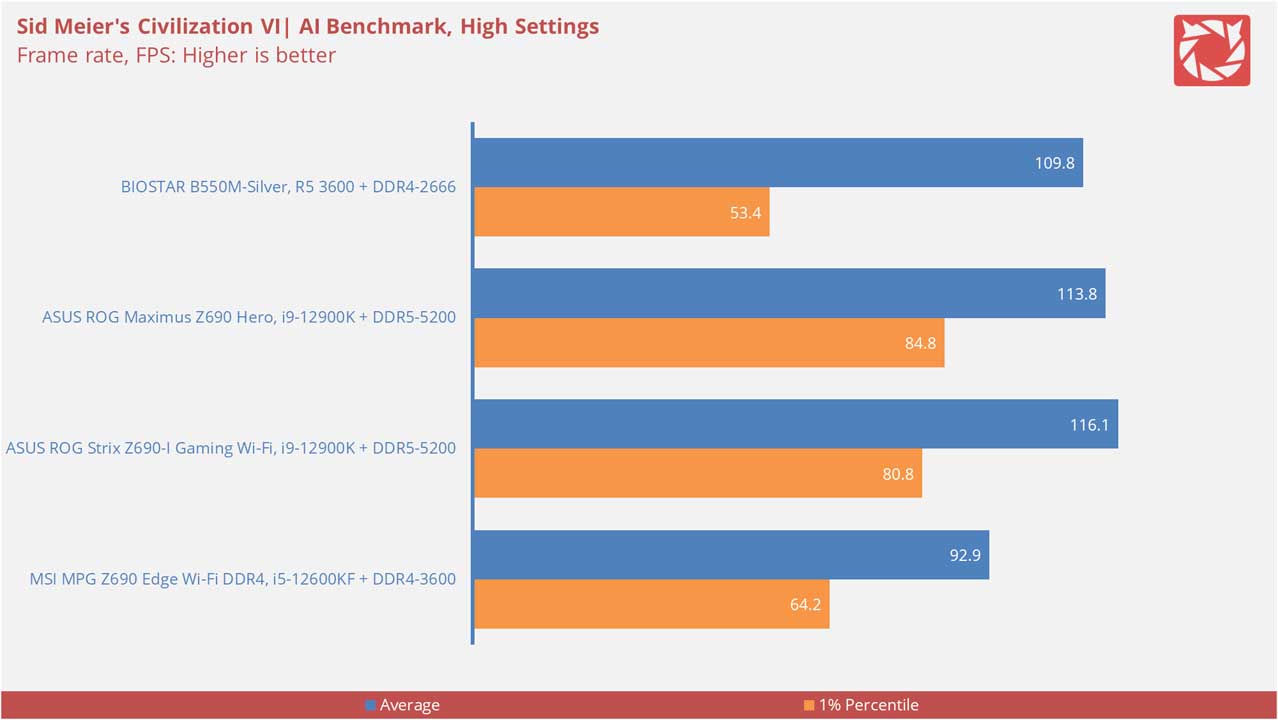

Frame rate is measured in Frames per Second (FPS). This is done via Sid Meier’s Civilization VI and its built-in benchmark.

BIOSTAR B550M Silver Benchmarks 14

Gaming performance is acceptable for the setup. Now let us move on to motherboard specific benchmarks and or measurements.

POST Speed

Time to finish POST is measured in Seconds (s) at warm and cold boot. This is done via Windows Task Manager and its Last BIOS Time feature.

BIOSTAR B550M Silver Benchmarks 17

Last BIOS Time performance is the best so far among the boards tested. This is most likely due to efficiency or how easy the UEFI loads the required resources.

DPC Latency

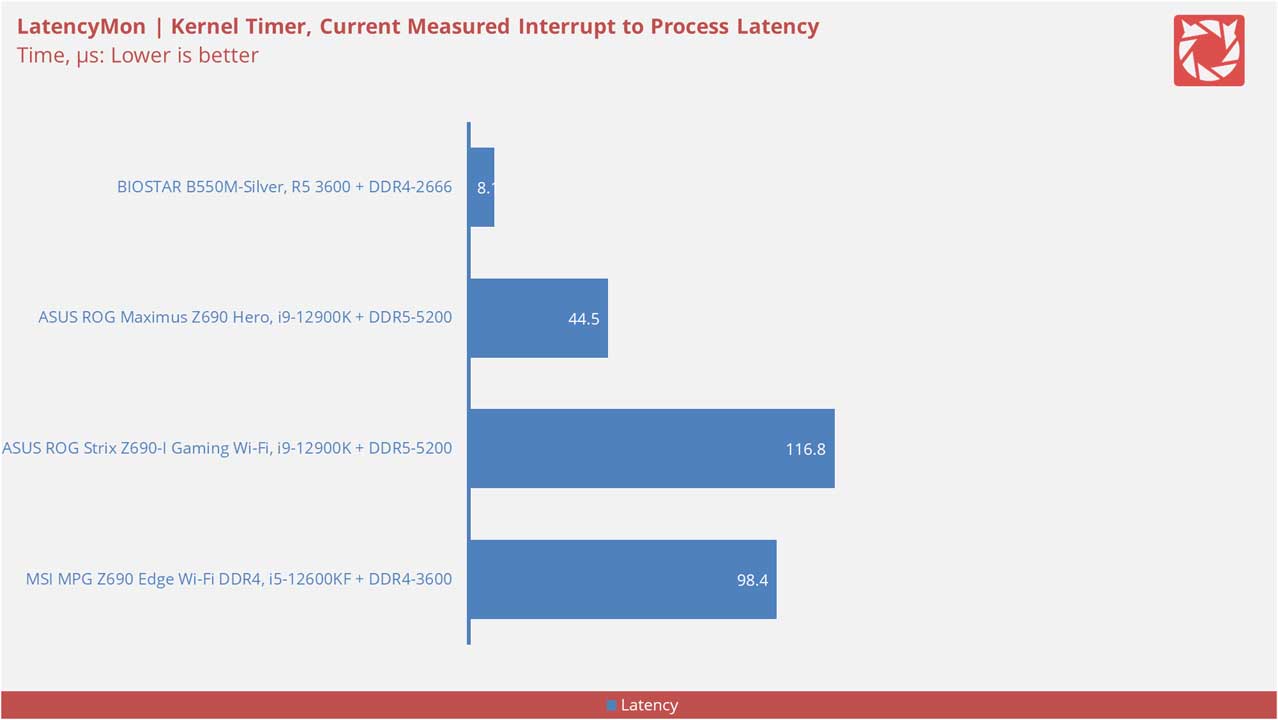

Kernel timer latency is measured in Microseconds (μs) at current and highest. This is done via LatencyMon.

BIOSTAR B550M Silver Benchmarks 18

DPC latency is the best out of the bunch. This could be due to the latest Windows update but it is definitely surprisingly good. If you’re working in a music production environment, then this is a motherboard to consider.

Memory Latency

Memory latency is measured in Nanoseconds (ns). This is done via AIDA64 Extreme and its Cache and Memory Benchmark.

BIOSTAR B550M Silver Benchmarks 19

Memory latency is the weakest out of all the boards tested but that’s a given since we’re comparing it to up to date systems.

Storage Performance

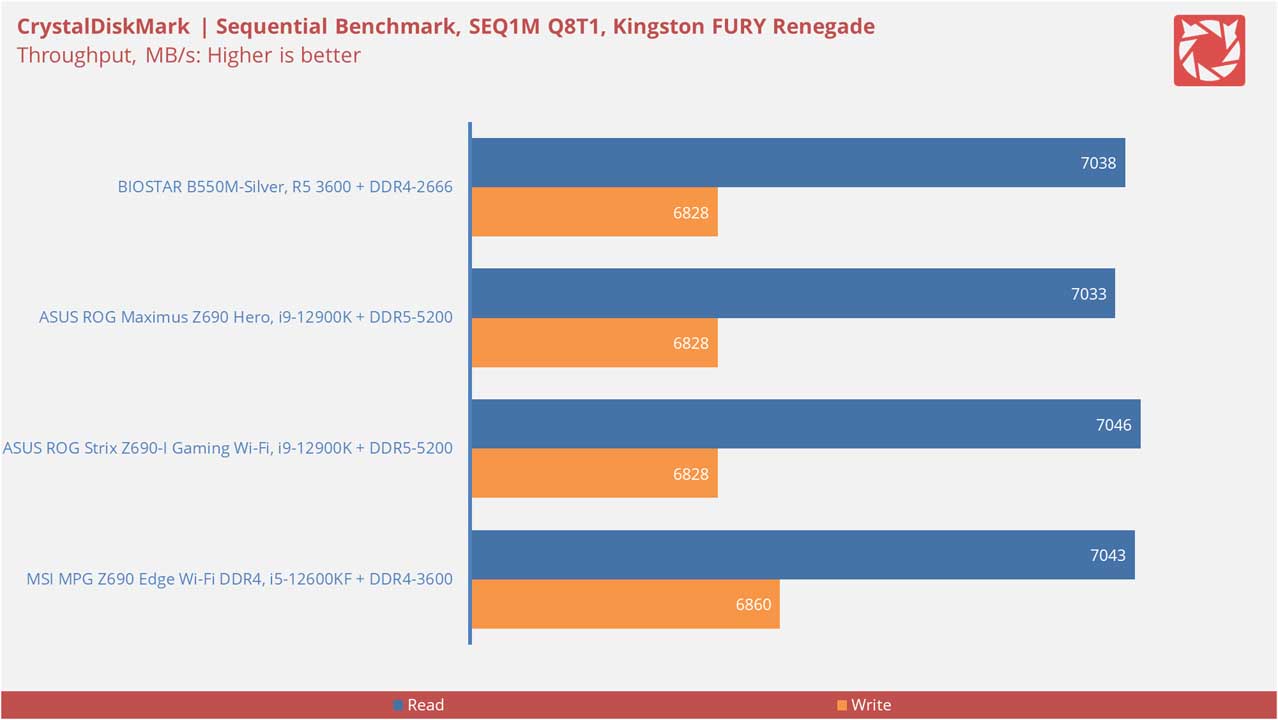

Storage throughput is measured in Megabytes per second (MB/s) at read and write. This is done via CrystalDiskMark and its sequential benchmark.

BIOSTAR B550M Silver Benchmarks 20

Pretty good storage performance we got here for the B550M-Silver.

Audio Performance

Sound level is measured in decibels, A-weighting (dB, A). This is done via the RightMark Audio Analyzer and its Test Report.

BIOSTAR B550M Silver Benchmarks 21

Now while the BIOSTAR B550M-Silver is capable of driving my Sennheiser HD600 to loud enough levels, it is sadly lagging behind when it comes to technical performance – both for the DAC and ADC. The DAC and its amplifier is actually still usable for high impedance headphones but it is just not a good solution for powered monitors due to the noise. It is also not enough to satisfy other low impedance devices such as planar magnetic headphones.

Network Performance

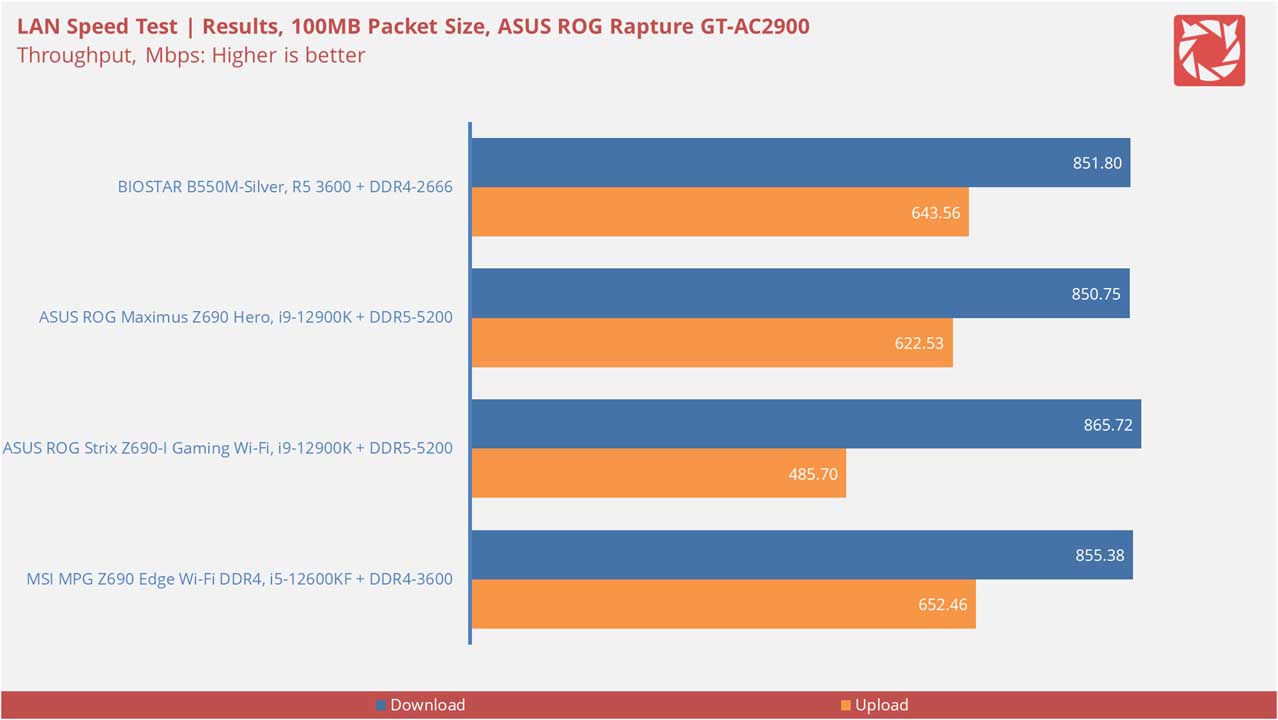

Network throughput is measured in Megabits per second (Mbps) at download and upload. This is done via LAN Tester.

BIOSTAR B550M Silver Benchmarks 22

Good results we got here for the LAN adapter.

Thermals

VRM temperature is measured in degree Celcius (ºC) at system idle and load. This is done via AIDA64 Extreme and its System Stability Test.

BIOSTAR B550M Silver Benchmarks 15

VRM’s thermal performance checks out just on the warmer side – same thing with the PCH.

Power Consumption

System power consumption is measured in Watts (ºC) at system idle and load. This is done via AIDA64 Extreme and its System Stability Test.

BIOSTAR B550M Silver Benchmarks 16

Now power consumption is considerably lower compared to the other systems tested. This is no surprise since the Ryzen 5 3600 comes with a TDP of 65 W. Couple that with an almost bone stock motherboard and you’d get this kind of power efficiency.

Software, Lighting and Special Features

BIOSTAR is not known for their software suite but they’ve got some downloadable stuff on the product page – aside from the usual assortment of drivers and BIOS updates. These are the BIOSCreen Utility, BIOS Update Utility and the RACING GT EVO Utility. I did not test them simply because most of the functions you could adjust on these utilities are also found within the UEFI.

BIOSTAR B550M Silver Images 5

Now what’s note worthy to add in this section is the ability to add an M.2 2230 card for a Wi-Fi or Bluetooth adapter. An IPX to SMA cable has been installed already so you just need to purchase your desired wireless adapter and an SMA compatible antenna to get started. We also have the 2.5Guard here which is basically a surge protector for the LAN port.

Final Thoughts

The BIOSTAR B550M-Silver is a simple B550 motherboard. it comes with the bells and whistles expected for the chipset with added bonuses just to make sure it is not a 100% bone stock motherboard with BIOSTAR’s brand name on it.

General performance is good but if I were to nit pick, its audio performance could be better. This wont matter much though if you’re going to use the said components casually – like with most onboard solutions actually.

Luckily, the rest of the board’s performance checks out on a positive note. I like how fast it boots, how its fan controller is implemented and its super low DPC latency – on top of the abundant input and output options.

For the price of around $150 USD, the BIOSTAR B550M-Silver is actually a rock solid motherboard to start with. I just wish they added a wireless adapter in the first place. But then again, nothing is perfect.

TechPorn Awards 2018 (2)

BIOSTAR B550M-Silver
  • 8/10
    Performance - 8/10
  • 8/10
    Build - 8/10
  • 9/10
    Connectivity - 9/10
  • 8/10
    Firmware - 8/10
  • 8/10
    Features - 8/10
8.2/10

Summary

The BIOSTAR B550M-Silver is a good motherboard to start with for a Ryzen powered build. Sadly, the audio performance is a weak spot for production purposed. So, if you’re planning to do some work with it, best invest on a proper audio interface.
