The new LIVA Q1A is powered by Rockchip RK3288 up to 1.6GHz quad-core Cortex A17 while LIVA Q1A Plus integrated with two kinds of Rockchip RK3399. One is dual-core Cortex-A72, which is up to 1.8GHz and the other is quad-core Cortex-A53.

The CPU will run A53 for low power consumption. If the application needs more computing power, A72 CPU will increase performance by 50%, which can decrease power consumption.

4K Visual Experiences

LIVA Q1A series equipped with multiple ports. Q1A features 1 Micro USB, 3 USB 2.0, 1 HDMI 2.0 and 1 Gigabit Lan.  LIVA Q1A Plus equipped with 2 USB Gen1 x 1, 1 HDMI 2.0 and 1 DisplayPort 1.2, supports dual display up to 4K resolution for high quality of visual experience, which is the perfect fit for retail sales promotion, healthcare information board.

Better Usability with HDMI CEC

The latest LIVA mini PC Q1A/Q1A Plus support HDMI CEC function via HDMI cable to remote controller. It allows users to switch on and off screens with remote controller, which is suitable for digital signage application. Hotels, hospitals and public transportation can use it as guide board.

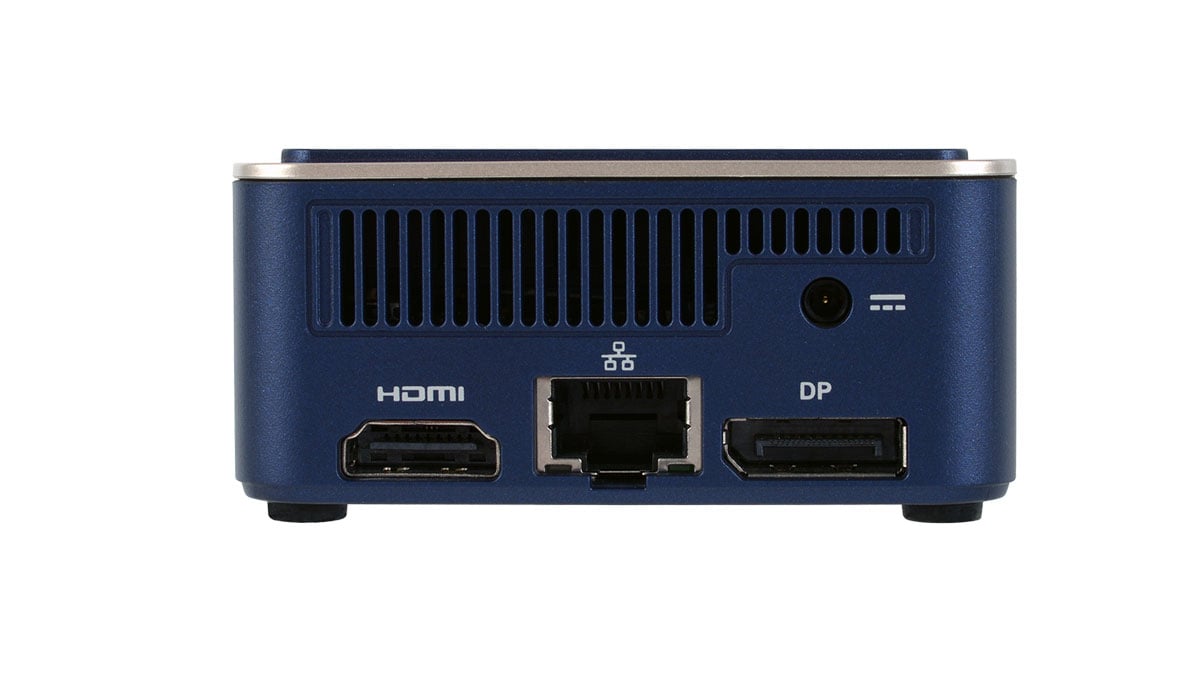

ECS LIVA Q1A Plus PR 2

Flexible platform for Varies Applications

LIVA Q1A/Q1A Plus support Android 8.1 operation system and open SDK, enterprises and companies are able to customize their demands. Retails can use as interactive digital signage board, digital map guide and self-checkout while public transportation system are suitable for self- check-in kiosk or schedule board.

LIVA Q1A LIVA Q1A Plus
Processor Rockchip RK3288

Quad-core Cortex-A17 up to 1.6GHz

Rockchip RK3399

Dual-core Cortex-A72 up to 1.8GHz

Quad-core Cortex-A53 up to 1.4GHz

Memory Onboard LPDDR3-1600 2GB
Storage eMMC 32GB/ 64GB (Optional)

1 x Micro SD Slot (Max. 128GB)

Network 1 x Gigabit LAN
Communication 802.11b/g/n

Bluetooth 4.0

Video Output HDMI 2.0 up to 4K Resolution (@60Hz)

HDMI CEC Function

HDMI 2.0 up to 4K Resolution (@60Hz)

DisplayPort 1.2

Up to 4K Resolution (@60Hz)

HDMI CEC Function

I/O 3 x USB 2.0

1 x Micro USB

1 x Micro SD card

External power on header or connector

1 x USB 3.2 Gen 1×1

2 x USB 2.0

1 x Micro SD card

External power on header or connector

Dimension 74 x 74 x 34.6 mm
OS Support Android 8.1 & Ubuntu Lite 18.04 (TBD)
Power 12V/ 2A, 24W
