Network devices are no stranger to ASUS and remained as one of the company’s strongest assets when it comes to their ecosystem. Now with AC WiFi, MIMO and Mesh becoming the norm, ASUS took the initiative to incorporate them into their gaming series of routers with the ROG Rapture GT-AC2900.

The ROG Rapture GT-AC2900 is a proper dual band mesh gaming router straight out of ASUS. It also comes equipped with a 1.8 GHz dual-core processor and 512MB of RAM to keep it from bogging down due to its wide range of features. Some of these features includes Triple-level Game Accelerator, GeForce Now certification, ASUS AiMesh support, the TrendMicro based AiProtection Pro and the AURA lighting.

Technical Specifications

Hardware
CPU 1.8GHz 64bit dual-core processor
Memory 256MB Flash, 512MB RAM
Transmitter MIMO
Software
Firmware ASUS ROG Gaming Center
Management UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ, System Event Log
Network
Wired Gigabit (1000Mbps)
Wireless 802.11a/b/g/n/ac (2.4GHz+5GHz), 1024QAM (2.4GHz+5GHz)
Encryption 64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , Radius with 802.1x, WPS support
Guest Network Yes
3G/4G Yes
Maximum Connection NA
Internet connection Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
Operating mode Wired Router, Wireless Router
DHCP NA
VPN Yes
Parental Control Yes
Traffic Control Yes
Connectivity
LAN Gigabit (4x RJ-45)
WAN Gigabit (1x RJ-45)
USB USB (1x 3.0, 1x 2.0)
Dimensions
Length 221mm
Width 169mm
Height 111mm
Weight 780g

Packaging and Accessories

The ASUS ROG Rapture GT-AC2900 comes in a rather huge packaging for a router. Somewhat similar to your usual ASUS ROG graphics card. The packaging comes with the following bundles inside:

  • Dual-purpose stand / wall-mount
  • Power adapter
  • Plug adapters
  • High gain antennas
  • RJ-45 cable
  • Screwdriver
  • Quick start guide
  • Installation guide

Design, Layout and Build Quality

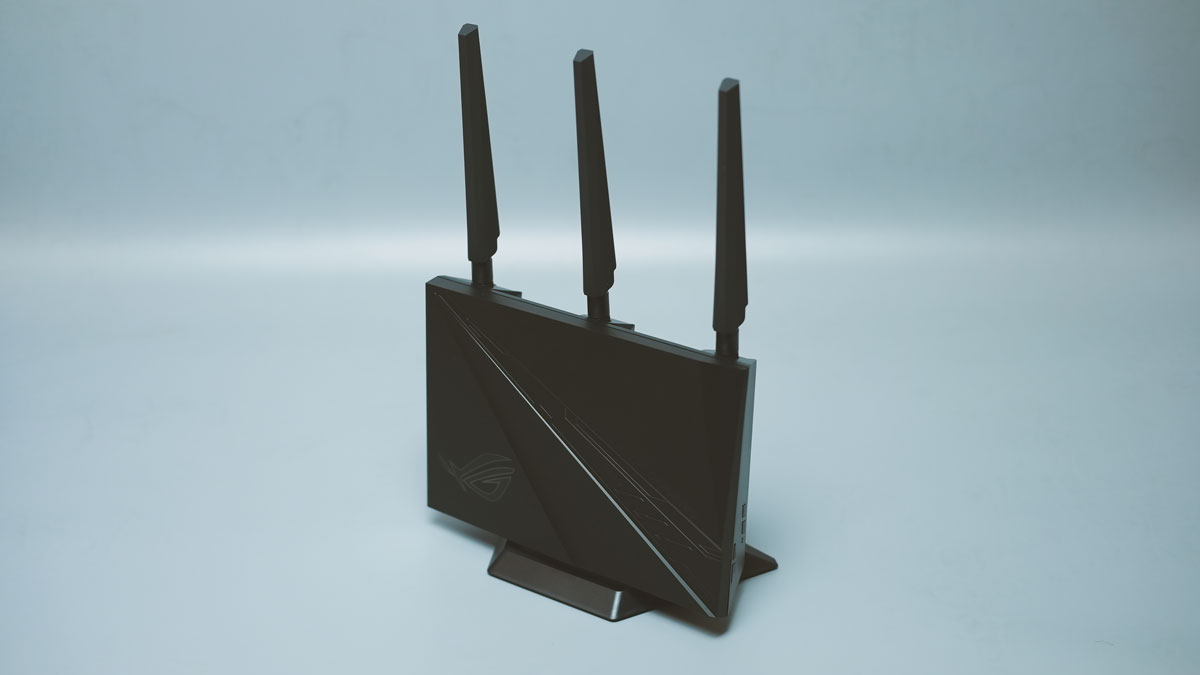

The ROG Rapture GT-AC2900 will probably pass as a centerpiece on your gaming lounge out of the box. It features a gaming centered design which is synonymous with other ROG products. Even the triple high gain antennas received a proper ROG look.

ASUS ROG Rapture GT-AC2900 (2)

Most routers feature about two to three buttons, yet the GT-AC2900 houses six. We have dedicated buttons for lighting, WPS, WIFI, reset, power and even a bindable button called the Boost Key.

ASUS ROG Rapture GT-AC2900 (4)

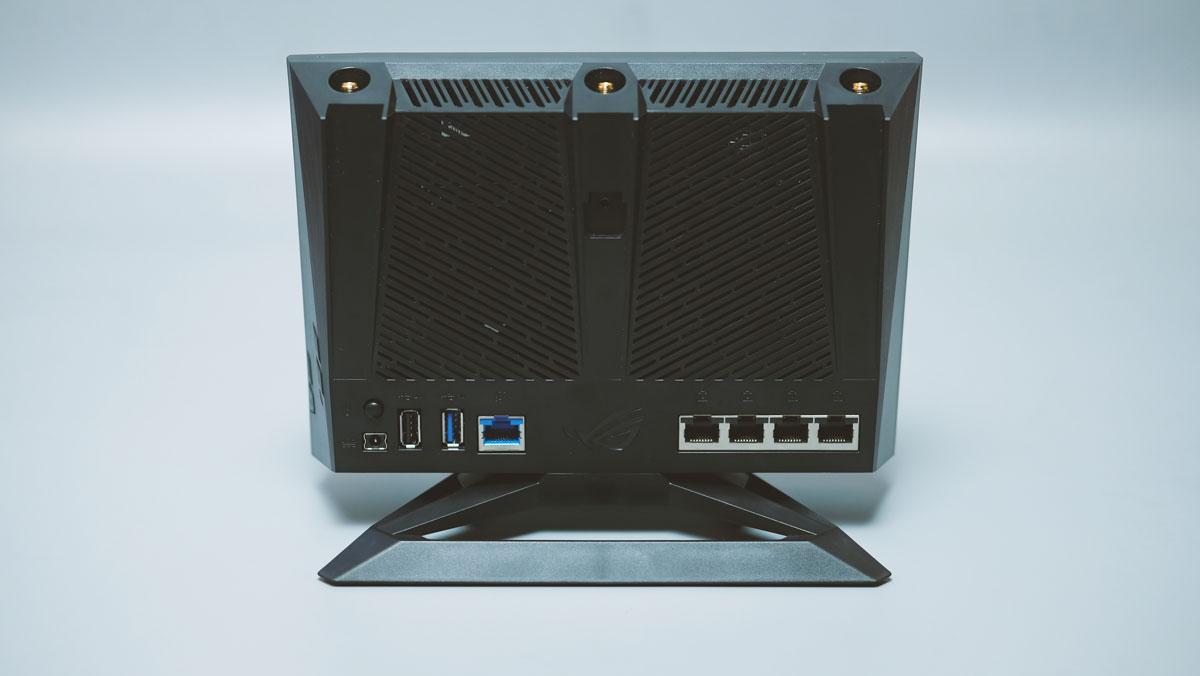

The other side of the gaming router is definitely busy looking. The left side houses the power button, the port for the external power adapter, two USB ports (2.0 and 3.0) and the WAN port. These USB ports supports external devices with any capacity (4TB tested) and supports UPnP and DNLA as well. Right side on the other hand houses the LAN ports. Relative amount of ports we got here.

ASUS ROG Rapture GT-AC2900 (3)

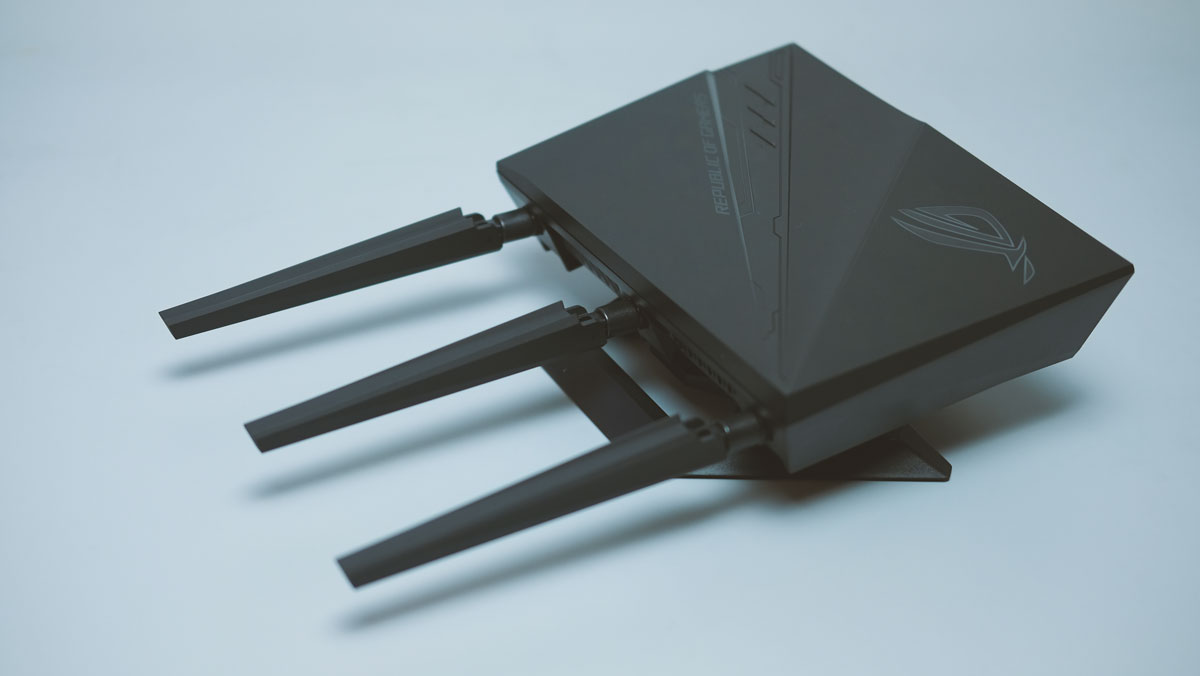

Cooling is provided by perforations at the back of the router’s shell allowing the heatsinks to naturally dissipate heat away from the router. With 3 mounting options available, it is best to have it standing right up. It gets a little warmer with the flat down “naval gun style” approach.

ASUS ROG Rapture GT-AC2900 (5)

Power, like most routers is externally supplied by an adapter. It is dinky enough, with about 2 meters of cable length.

ASUS ROG Rapture GT-AC2900 (6)

Firmware Interface

The ASUS ROG Rapture GT-AC2900 is easy to setup out of the box. You just have to follow a few fool proof instructions.

ASUS ROG Rapture GT-AC2900 Setup (1)

There are five main operations mode built within the ASUS ROG Rapture GT-AC2900 although there should be another one here for the LTE mode. You could always set that one up later by choosing the default mode.

ASUS ROG Rapture GT-AC2900 Setup (2)

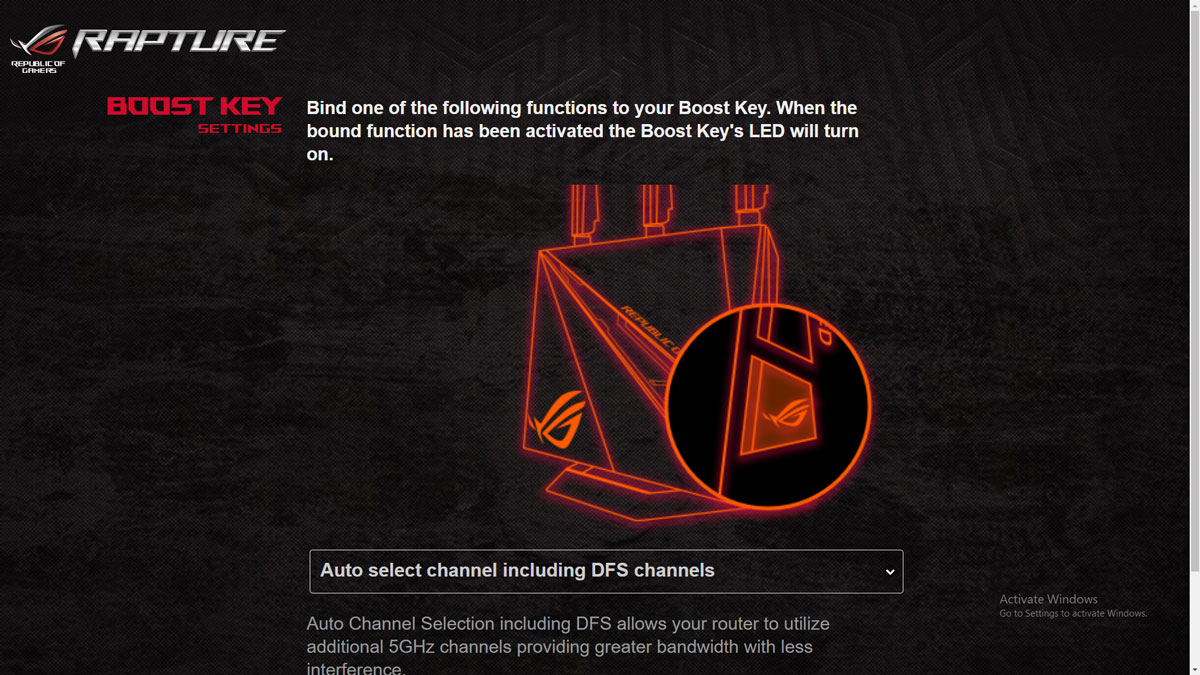

Once everything has been taken care of, the gaming router will ask you what you want to do with the Boost Key. You have three options here. Number one is to use it as a channel selector or activator rather. Second, you may use it to control the ASUS AURA lighting. Third is to bind it with the GeForce Now feature of the router.

ASUS ROG Rapture GT-AC2900 Setup (3)

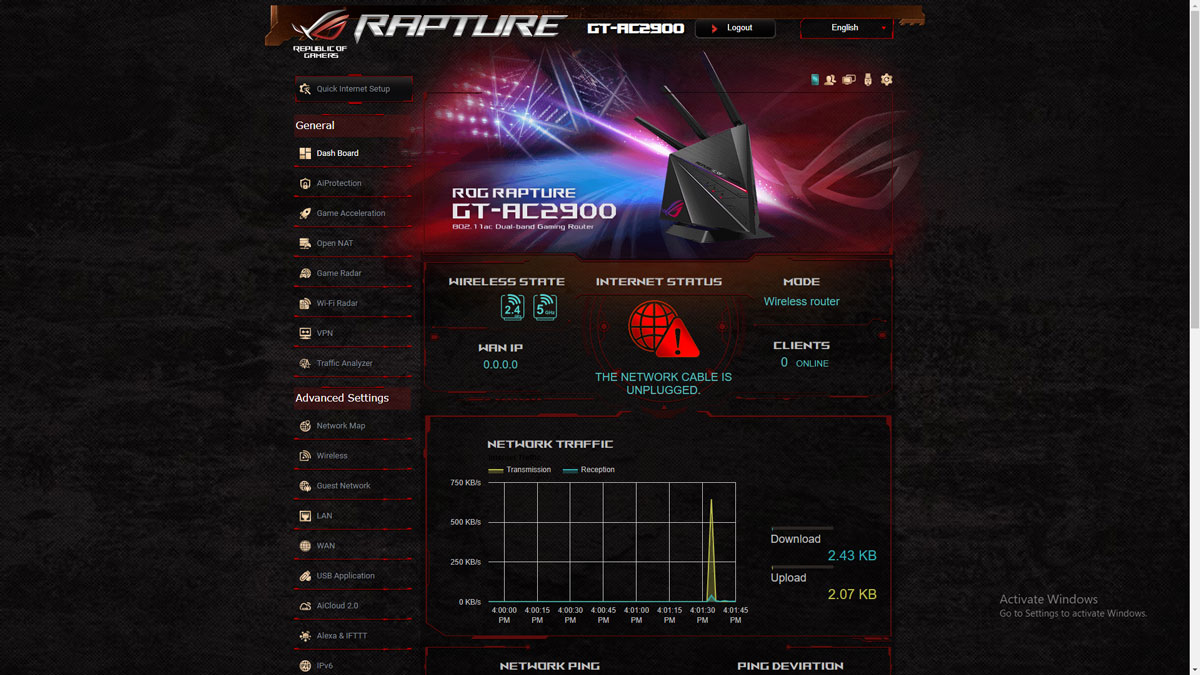

Now that we’re over the quick setup guide, let us now check out the dashboard. This one is brimming with features under an ROG inspired UI. We have a total of 8 sub menus here for the general features and that’s what we are going to explore.

ASUS ROG Rapture GT-AC2900 Firmware (1)

AiProtection is a combination of real time protection and parental controls. The former is powered by Trend Micro, allowing you to asses the current status of your network’s security. It also allows you to automatically block any infected devices connected onto the network. The latter on the other hand is your usual parental control with time scheduling and web filters. What’s new for me here though is the app filter.

ASUS ROG Rapture GT-AC2900 Firmware (2)

The Game Acceleration menu is technically a combination of ASUS GameFirst, Game Boost and Gamers Private Network. GameFirst allows ASUS compatible products to take priority within the network, while Game Boost allows traffic related to gaming to take priority. Gamers Private Network is technically WTFast. It allows the gaming router to take the shortest route between your home network and the game server.

ASUS ROG Rapture GT-AC2900 Firmware (3)

The ASUS ROG Rapture GT-AC2900 also offers Open NAT which is an easy way to create your own port forwarding rules. Popular games already had their own profiles within the router so it is just a matter of selecting what you need.

ASUS ROG Rapture GT-AC2900 Firmware (4)

Game radar is a simple tool built within the GT-AC2900 to check any supported game’s regional latency. This is extremely helpful if you want to check and connect to a certain region’s game server. I hope that ASUS will continue supporting this feature with more titles as well.

ASUS ROG Rapture GT-AC2900 Firmware (5)

Wi-Fi Radar is a combination of four feature sets. It allows you to discover nearby wireless access points, show stats for nearby wireless signals, troubleshoot wireless issues and set parameters for Wi-Fi Radar itself.

ASUS ROG Rapture GT-AC2900 Firmware (6)

The VPN menu is self explanatory and we appreciated the support for OpenVPN out of the box.

ASUS ROG Rapture GT-AC2900 Firmware (7)

Traffic Analyzer records network traffic usage on an hourly basis. This is useful if you want to set parameters for devices or apps that consumes a lot of resources.

ASUS ROG Rapture GT-AC2900 Firmware (8)

Test Setup and Methodology

Routers are far from the hardest components to test, but it doesn’t mean they are easy enough to deal with since there are multiple factors to take into account while benchmarking. Factors includes the floor layout, wall thickness, interference from other wireless devices and the client and server’s overall configuration.

Test System Specifications
CPU Intel Core-i5 6600K
Motherboard ASUS Z170-A
Cooler Noctua NH-L9i
Memory ADATA Premier DDR4
GPU ASUS ROG Strix GTX 1060 OC
Storage Crucial BX200 480GB
Case Thermaltake Core P3
PSU CORSAIR RM850X
Display DELL U2715H
OS Microsoft Windows 10 Pro

The NetIO-GUI is used to test our network configuration. NetIO-GUI has been chosen due to its ability to test TX/RX throughput and ping under various packet sizes.

  • Test system 1 – Desktop, Server, Wired
  • Test system 2 – Laptop, Client, Wireless

Network Performance

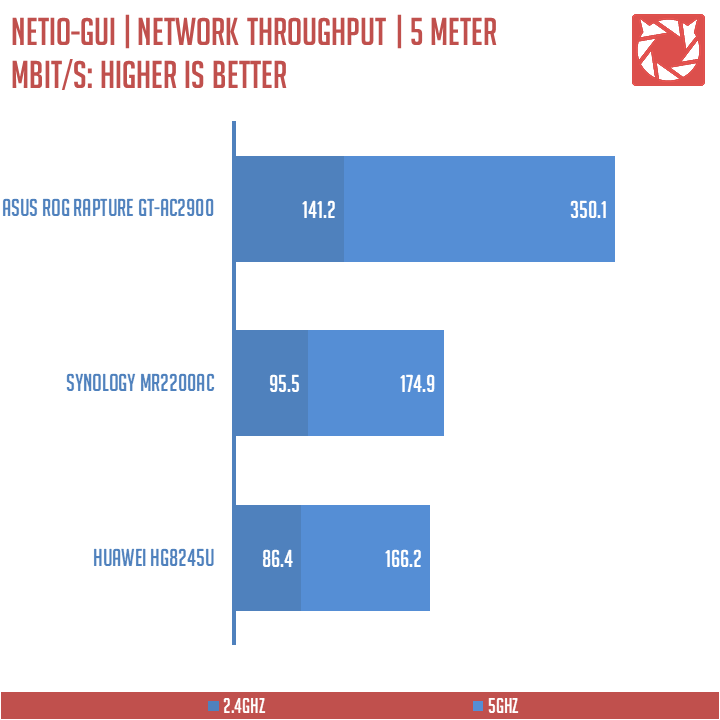

Network performance is again tested via the NetIO-GUI. We start with a 5 meter distance under the 2.4GHz and 5GHz frequency. Line of sight is maintained under this distance.

ASUS ROG Rapture GT-AC2900 Benchmarks (1)

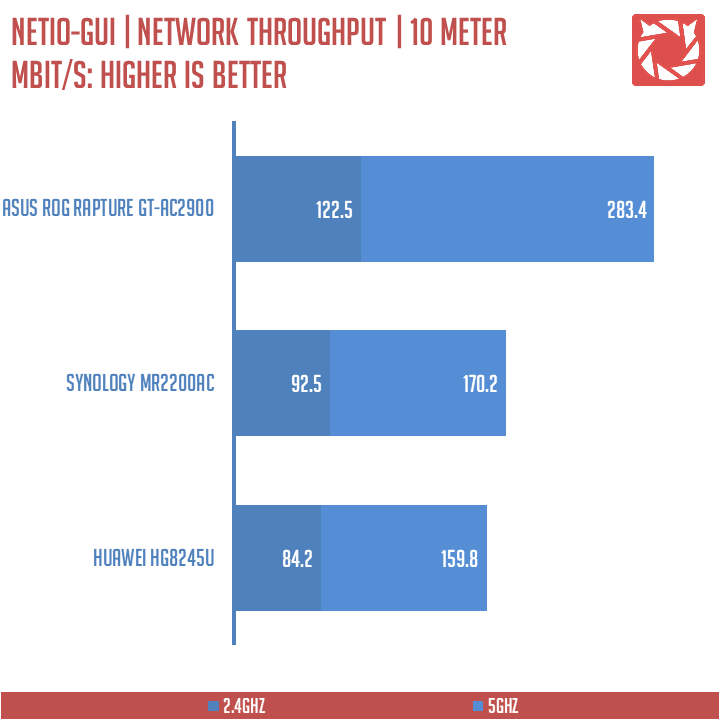

Next, we proceed with a 10 meter distance under the 2.4GHz and 5GHz frequency bands. This is more in line with your usual home studio apartment setup. Line of sight is also maintained under this distance.

ASUS ROG Rapture GT-AC2900 Benchmarks (2)

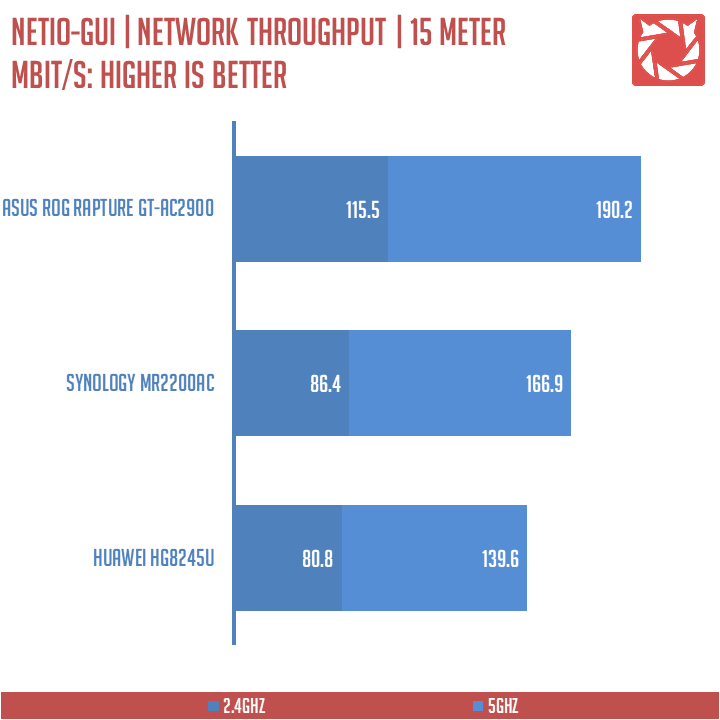

We then proceed with a 15 meter distance under the 2.4GHz and 5GHz frequency bands. This is more in line with standard housing dimensions. Line of sight is also maintained under this distance.

ASUS ROG Rapture GT-AC2900 Benchmarks (3)

The ASUS ROG Rapture GT-AC2900 is quite possibly the fastest router we’ve tested to date at the tested ranges. It comes blazing with a maximum of 350.1 Mbps at the 5GHz band. We also got good results for the 2.4GHz band at 141.2 Mbps.

Software, Lighting and Special Features

Again, the ROG Rapture GT-AC2900 features the Triple-level Game Accelerator. It optimizes your online gaming packets all the way from your PC to the game server via three levels of function. Level 1 is the gaming port prioritization and comes with Level 2 prioritization if paired with any ASUS GameFirst compatible devices.

ASUS ROG Rapture GT-AC2900 Firmware (3)

The ASUS ROG Rapture GT-AC2900 is also a GeForce Now Recommended router, which means it has been tested and approved by Nvidia on their cloud based gaming platform. If you have a minimum of 25Mbps connection (50Mbps recommended), then this router is required to enjoy the upcoming subscription.

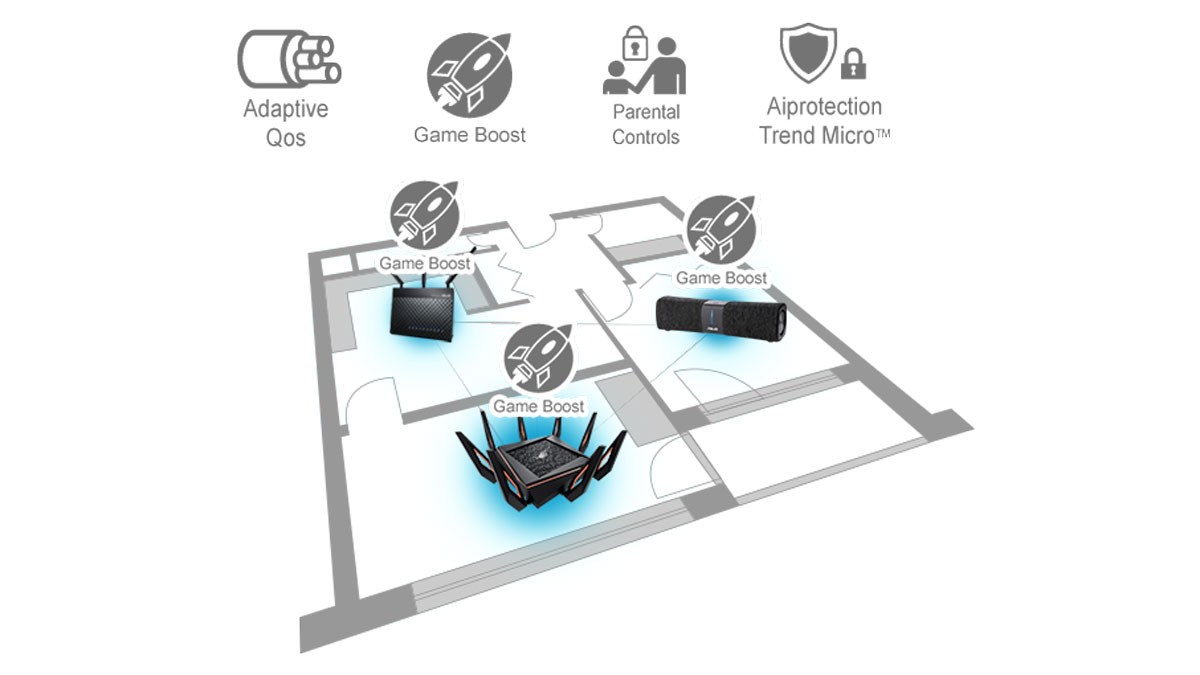

AiMesh is also supported and it works with ASUS AiMesh compatible routers regardless of series and or models.

ASUS ROG Rapture GT-AC2900 Features (2)

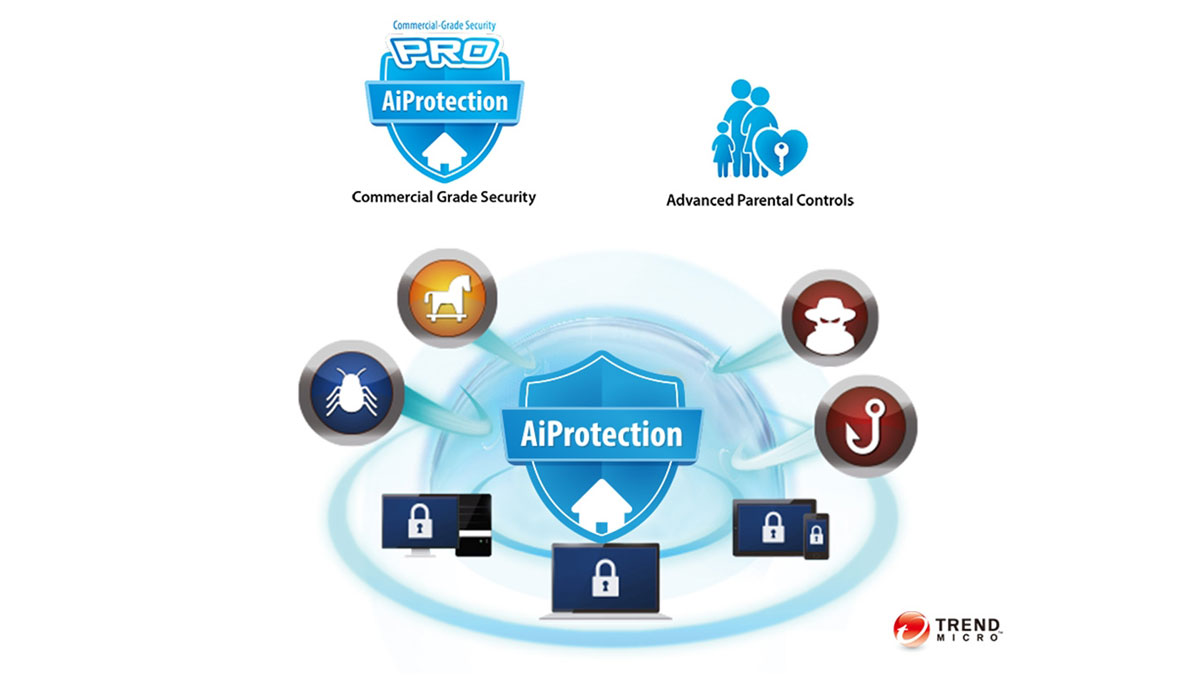

A subscription-free AiProtection Pro is also one of the router’s highlights. It basically performs in-depth scans of inbound and outbound internet data to block all common attacks. The ROG Rapture GT-AC2900 updates its own database via Trend Micro’s cloud based data centers so you’ll be up to date whenever there is a new patch.

ASUS ROG Rapture GT-AC2900 Features (1)

ASUS AURA Lighting is also supported with lighting effects easily bindable via pressing the Boost Key. Supported effects include Event, Static, Breathing, Rainbow, Comet, Flash, Glowing yoyo, Color cycle, Starry-night, Strobing and Wave.

ASUS ROG Rapture GT-AC2900 (7)

Final Thoughts

The ASUS ROG Rapture GT-AC2900 is a proper gaming router with a set of features cut above the rest. We have OpenNAT, onboard WTFast support and prioritization made easy for gamers to configure. This benefits all sorts of gamers – mobile gamers even, to an extent. This comes with support for LTE dongles as well so if you’re planning to stick somewhere remote then the GT-AC2900 is a must to pack along.

Performance wise, nothing really beats routers with external antennas. The Rapture GT-AC2900 is one fine example, extending both the 2.4GHz and 5GHz bands in our household with convincing results compared to other offerings we’ve tested.

The ASUS ROG Rapture GT-AC2900 comes with a price point of 14500 Pesos (ASUS Official Store). A cut above the beloved ASUS RT-AC86U when it comes to features and pricing. The better choice should budget allow it.TechPorn Awards 2018 (6)

ASUS ROG Rapture GT-AC2900 Wireless Gaming Router
  • Performance - 9/10
    9/10
  • Build Quality - 9/10
    9/10
  • Features - 10/10
    10/10
  • Design - 9/10
    9/10
  • Value - 8/10
    8/10
9/10

Summary

The ASUS ROG Rapture GT-AC2900 comes with a price point of 14500 Pesos (ASUS Official Store). A cut above the beloved ASUS RT-AC86U when it comes to features and pricing. The better choice should budget allow it.

Pros

  • Excellent Dual Band range
  • USB storage and printing
  • LTE capable
  • Commercial grade features
  • ASUS AIMesh support
  • GeForce Now certified
  • Connectivity options

Cons

  • Daunting UI design
