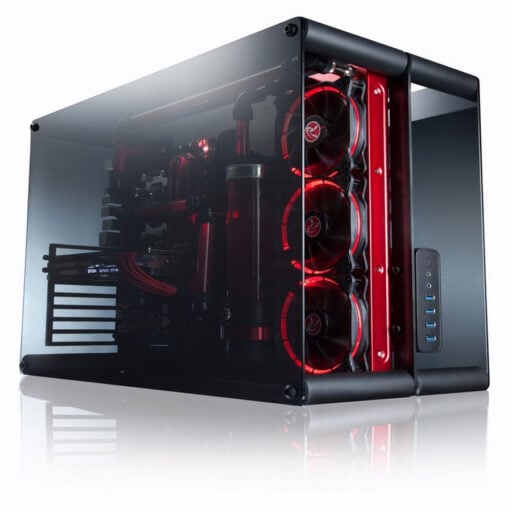

RAIJINTEK today releases the PAEAN open air chassis. A tempered glass, full aluminum case aimed for system builders who wants to showcase their builds at the fullest.

Design art at its best by RAIJINTEK – Introducing the Paean, a 4mm aluminum ATX bench table chassis with a pair of 5mm tempered glass side panels. Utilizing a modern design the Paean also provides comprehensive functions and features, with support for 240/280/360mm radiators and up to six HDD’s.

raijintek-paean-overview-pr-3

The Paean also includes tool-free installation, a max VGA length of up to 310mm and a max PSU length of up to 200mm, with room for cable management in the midplate to keep your build looking impressive.

The PAEAN features a 4mm thick aluminum plating, and is compatible with ATX motherboards and smaller form factors. What’s truly unique about it is the separate chamber for the storage bays, and PSU complemented by a stylish USB 3.0 Hub. The case can support a variety of cooling solutions, with a maximum of 360mm radiator accommodation.



raijintek-paean-overview-pr-2

Features:

  • 4.0mm Alu. reliable middle plate and 5.0mm Tempered glass
  • Aluminum colour hair-silk anodized appearance design
  • Compatible with ATX POWER SUPPLY
  • Compatible with 310mm VGA card
  • Supports up to max. 140mm height CPU cooler
  • 4* USB3.0 ports
  • Supports to install 3* 3.5”HDD and 3*2.5” HDD
  • Anti-vibration rubber for HDD installation
  • Modern design with many options for radiator systems
  • Sturdy and reliable chassis body with 4mm aluminium
  • Accommodate an internal 240/280 /360mm radiator
  • High quality tempered glass side panels

Specifications:

  • Colour: BLACK Hair-silk anodized
  • Internal Colour: Matte Black
  • Dimension chassis body (D/W/H): 586*286*417mm
  • Carton Dimension: 655* 485*150 mm
  • Body Weight (N.W.): 14 KG
  • Body Weight (G.W.): 16.5 KG
  • Material: Aluminium 4.0mm + SGCC 1.0mm
  • M/B Type: ATX/MICRO ATX/MINI ITX
  • Graphic Card Support: Yes
  • Power Supply: PS-2
  • Power Supply Integration: Internal Bottom PSU (vertical), DVD Device, Slim DVD *1
  • 3.5″ Device: 3
  • 2.5″ Device (option/removable): 3
  • I/O Panel: USB3.0 *4
  • Hot Swappable: n/a
  • PCI Slot: 8
  • PCI Slot Tool-free: Yes
  • ODD & HDD Tool-free: Yes
  • Graphic Card Length: 310mm
  • Side Panel Style: 5.0mm Tempered Glass
  • Cable Management: Regular
  • Front Cooling Fan: 120mm*2 120mm*3 ; 140mm*2 fan or 240/280/360mm radiator
