The global motherboard, graphics card, and small form factor PC manufacturer, ASRock, proudly announces its 8-liter desktop barebone DeskMeet B660 and X300 at CES 2022. DeskMeet B660 supports the latest 12th Generation Intel® Core™ processors, while DeskMeet X300 supports a full range of AMD AM4 desktop processors.
The DeskMeet is a revolutionary design of the Mini-ITX platform. ASRock not only optimizes its motherboard to minimize internal cables, but also optimizes its power supply for better cable management and airflow. The most eye-catching thing is the chassis design of DeskMeet. Users can easily build a small form factor PC in just a few minutes. DeskMeet’s incredible scalability, offering plenty of space to extend or upgrade your build.
|
DeskMeet B660 Series |
|
| CPU | Supports 12th Gen Intel® Core™ Processors |
| Chipset | Intel® B660 |
| Cooler | Supports Intel® CPU Cooler (Max. Height ≦ 54mm) |
| Memory | Supports Dual Channel DDR4 Memory Technology
4 x DDR4 DIMM slots (Max. 128GB) Supports ECC & non-ECC, un-buffered memory |
| Graphics | Supports a discrete Graphics card up to 20CM |
| LAN | Gigabit LAN (Intel® I219V) |
| Storage | 3 x SATA3 6.0Gb/s ports (RAID 0/1)
1 x Hyper M.2 (2280) PCIe Gen4 x4 & SATA3 6.0Gb/s slot 1 x Hyper M.2 (2280) PCIe Gen4 x4 slot |
| Expansion Slots | 1 x PCIe 4.0 x 16
1 x M.2 (key E 2230) slot for Wi-Fi + BT Module |
| Audio | Realtek ALC897 Audio Codec (5.1 CH HD Audio) |
| Front I/O Ports | 1 x Headset
1 x USB 3.2 Gen1 Type-C 2 x USB 3.2 Gen1 Type-A 2 x USB 2.0 Type-A |
| Rear I/O Ports | 1 x DisplayPort
1 x HDMI 1 x D-Sub 2 x USB 2.0 2 x USB 3.2 Gen1 Type-A 1 x RJ-45 LAN Port HD Audio Jacks: Line in / Front Speaker / Microphone |
| Power Supply | 500W power supply (80+ Bronze, peak 550W) |
| Dimensions | 168(W) x 219.3(D) x 218.3(H) mm (excl. Protrusions) |
|

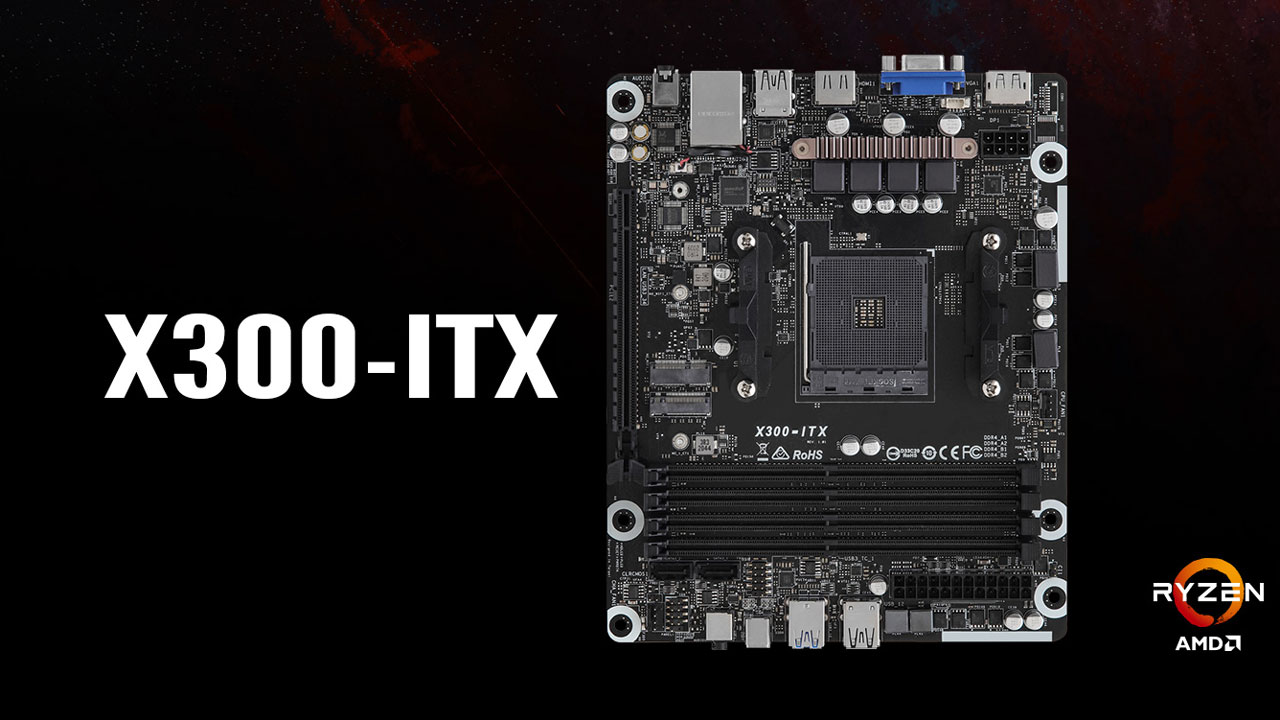

DeskMeet X300 Series |
|
| CPU | Supports AMD AM4 Socket Ryzen™ 5000/4000/3000/2000 Series Desktop
APU & CPU (up to 65W) |
| Chipset | AMD X300 |
| Cooler | Supports AMD AM4 CPU Cooler (Max. Height ≦ 54mm) |
| Memory | Supports Dual Channel DDR4 Memory Technology
4 x DDR4 DIMM slots (Max. 128GB) Supports ECC & non-ECC, un-buffered memory |
| Graphics | Supports a discrete Graphics card up to 20CM |
| LAN | Gigabit LAN (RealtekRTL8111H) |
| Storage | 2 x SATA3 6.0Gb/s ports (RAID 0/1)
1 x Ultra M.2 (2280) PCIe Gen3 x4 slot |
| Expansion Slots | 1 x PCIe 3.0 x 16
1 x M.2 (key E 2230) slot for Wi-Fi + BT Module |
| Audio | Realtek ALC897 Audio Codec |
| Front I/O Ports | 1 x Headset
1 x USB 3.2 Gen1 Type-C 2 x USB 3.2 Gen1 Type-A 2 x USB 2.0 Type-A |
| Rear I/O Ports | 1 x DisplayPort
1 x HDMI 1 x D-Sub 2 x USB 2.0 2 x USB 3.2 Gen1 Type-A 1 x RJ-45 LAN Port 1 x Audio Jack (Line out) |
| Power Supply | 500W power supply (80+ Bronze, peak 550W) |
| Dimensions | 168(W) x 219.3(D) x 218.3(H) mm (excl. Protrusions) |
