The need for capable cooling solutions is at all time high with the release of flagship processors. The Intel Core i9-12900K for an instance, comes with a TDP of 241W – limiting the selection of air cooling solutions. This is where the ASUS ROG Strix LC II 360 comes into play.

With a 360mm radiator, triple ROG radiator fans and an enlarged copper base pump, the ROG Strix LC II 360 is poised to cool the most challenging processors – at least according to ASUS even without a specified TDP or thermal capacity rating. This cooler comes in two flavors; our model and the ARGB variant. Both comes with the ARGB lighting on the pump and the latter comes with ARGB for both the pump and the fans.

Disclosure: ASUS sent the ROG Strix LC II 360 for the purpose of this review. The company did not ask me to say anything particular about it. I get to keep it though.

Technical Specifications

Cooler
Socket Compatibility Intel LGA 1700, 1200, 115x, 2011, 2011-3, 2066; AMD AM4, TR4*
Type AIO Liquid Cooler
Material Cooper Block, Aluminum Radiator
TDP
Fan
Model ASUS ROG Radiator
Speed 800-2500RPM ± 10%
Noise 37.6dBA
Airflow 80.95CFM
Dimensions
Length 394mm
Width 121mm
Height 27mm
Weight

Packaging and Accessories

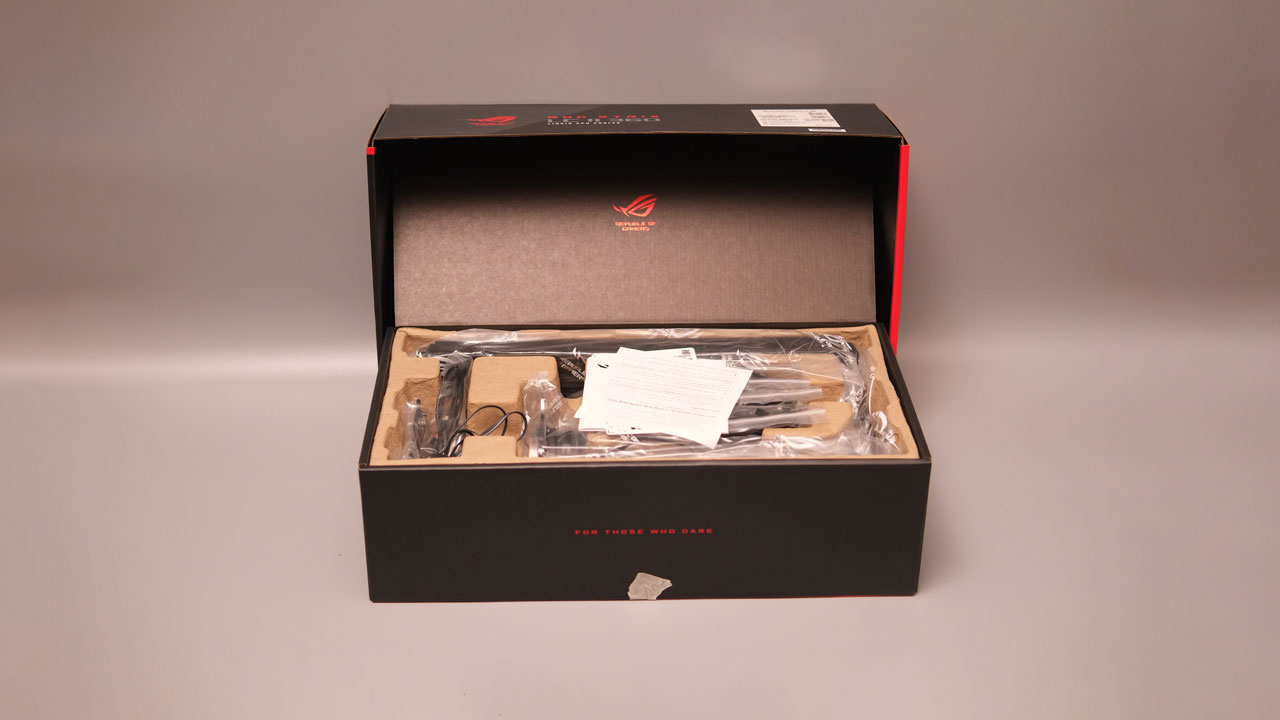

ASUS had the ROG Strix LC II 360 packed with pulp molded internal packaging. Nothing fancy about this but it’s nice to see ASUS steering away from porous materials such as polystyrene foams.

ASUS ROG Strix LC II 360 Images 1

The packaging should come with the following items inside:

  • ASUS ROG Strix LC II 360
  • 3x 120 mm Radiator Fan
  • USB Input Cable
  • Accessory Pack of Screws and Brackets
  • Quick Start Guide
  • ROG Sticker

The bundled accessories are decent.

Design, Layout and Build Quality:

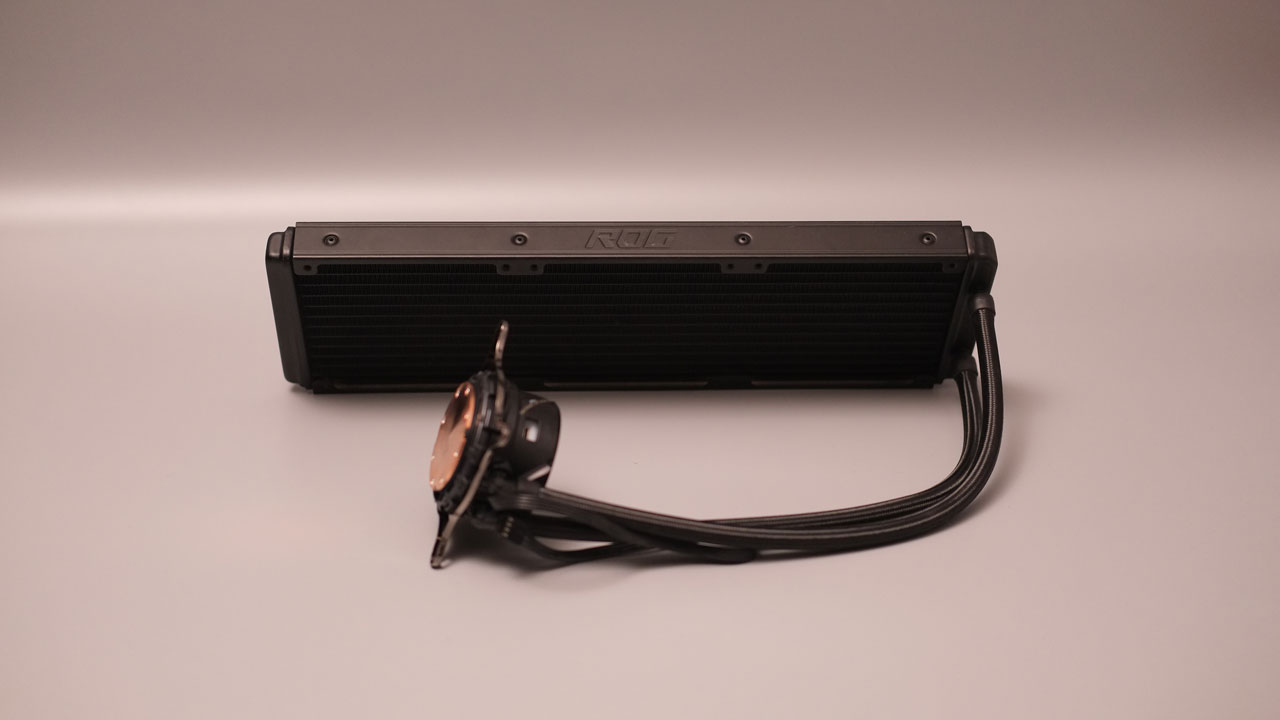

The ASUS ROG Strix LC II 360 looks like your typical 360mm all-in-one cooling solution. That means it’s a closed loop design with a combined pump and water block design.

ASUS ROG Strix LC II 360 Images 2

The 55mm water block is made out of cooper and is wide enough to accommodate most IHS designs. This comes with twist lock brackets for both Intel and AMD socket designs.

ASUS ROG Strix LC II 360 Images 3

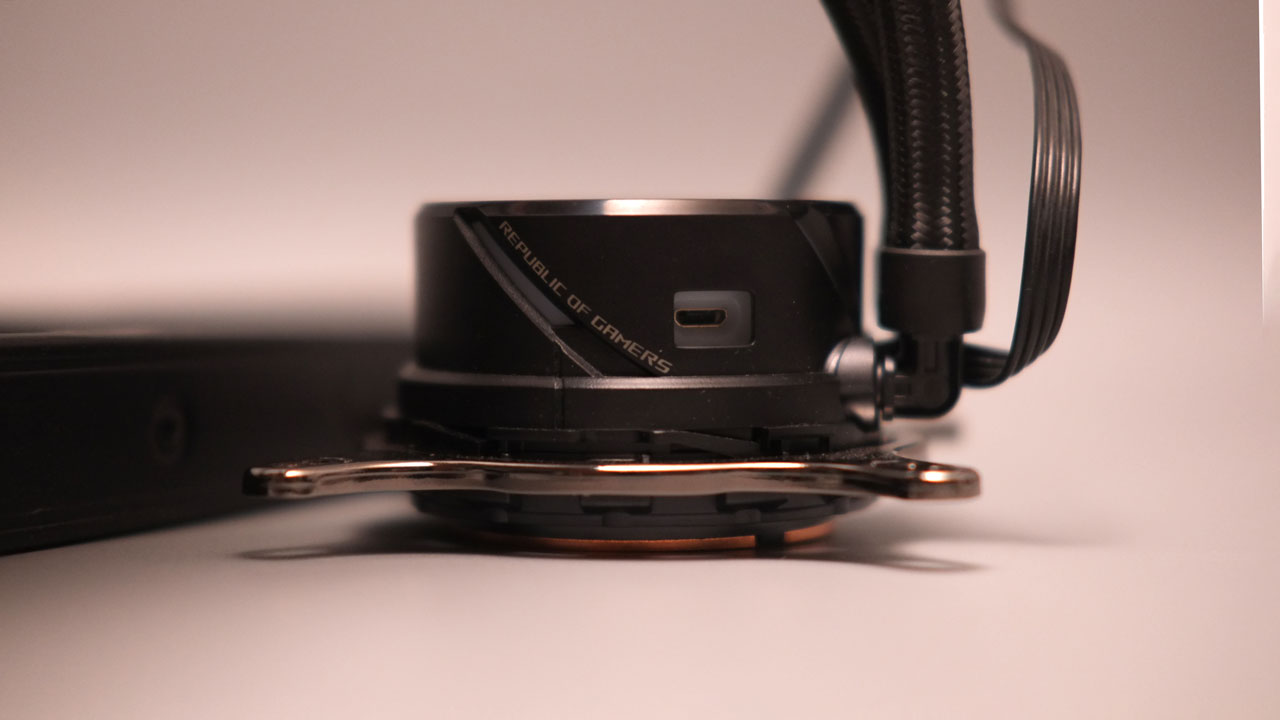

Connectivity for the AURA Sync (RGB lighting) is provided by a Micro USB to an internal USB 2.0 header. Pump power on the other hand is supplied by a 4-pin PWM header. The braided tubes are 11mm in diameter with a total length of 380mm.

ASUS ROG Strix LC II 360 Images 4

Now ASUS supplied the LC II 360 with their own fans dubbed conveniently as the “ROG radiator fan”. These are 120mm fans with rated speeds of 800-2500RPM and a noise output of 37.6dBA at unknown RPM. The radiator itself could house six of these if you’re feeling generous.

ASUS ROG Strix LC II 360 Images 5

The ASUS ROG Strix LC II 360 appears to be a well made unit but not exactly what I’ve expected for ₱10,995.00 PHP.

Clearance and Installation

Installation is straight forward, as most with enclosed loop setups. You just need the space for them – and an optimized one at that.

ASUS ROG Strix LC II 360 Images 6

Cable management is not that bad but prepare to do some gymnastics to keep the setup looking clean. The tubes are also not that long at 380mm in length, so measure if this could be mounted on your case.

ASUS ROG Strix LC II 360 Images 7

Obviously, I did not use this on an enclosure so your installation difficulty may vary.

Test Setup and Methodology

Our test setup relies on the measurements taken from AIDA64 Extreme. It is important to note that we are testing the review sample after burn-in, with at least 24-hours of uptime. This is done so to negate the FOTB (fresh out the box) state of the DUT (device under test), yielding better benchmarking consistency.

Test System Specifications
CPU AMD Ryzen 5 3600
Motherboard BIOSTAR B550M Silver
Cooler ASUS ROG Strix LC II 360
Memory ADATA Premier 2666MHz 16GB
GPU GALAX RTX 2060 EX White 6GB
Storage Plextor M9PE NVME 512GB
Case NZXT H710
PSU Thermaltake Toughpower GF1 650W
Display LG UF680T
OS Microsoft Windows 10 Pro 64-bit

The DUT is tested with the following configuration from our test system:

  • UEFI configuration: Default
  • Windows Power Plan: Balanced

Temperature

Temperature is measured in degree Celcius (ºC) at system idle and load. This is done via AIDA64 Extreme and its built-in System Stability Test. Readings are taken directly from the CPU (Tdie) sensor.

Noctua NH U12S Redux Benchmarks 1

Cooling performance is excellent for all PWM duty cycles tested. Actually surprised here with the performance at 25% duty cycle. Not really far off from the maximum cycle’s thermal performance. If you’re interested to see the performance of this cooler with the Intel Core i9-12900K, head over to this review. TL;DR, it hit 88ºC max at full load with that processor.

Noise

Sound pressure level is measured in Decibels (dBA) at various fan duty cycles. This is done via AIDA64 Extreme and its built-in System Stability Test. Readings are taken directly from a sound level meter.

Noctua NH U12S Redux Benchmarks 2

Sound level at various PWM duty cycles shows that it could go as low as 34.8dBA and as high as 57.2dBA. Since the ASUS ROG Strix LC II 360 thermally performs well enough at 25-50% PWM duty cycles, I consider this range as the goldilocks zone between cooling and acoustic performance.

Software, Lighting and Special Features

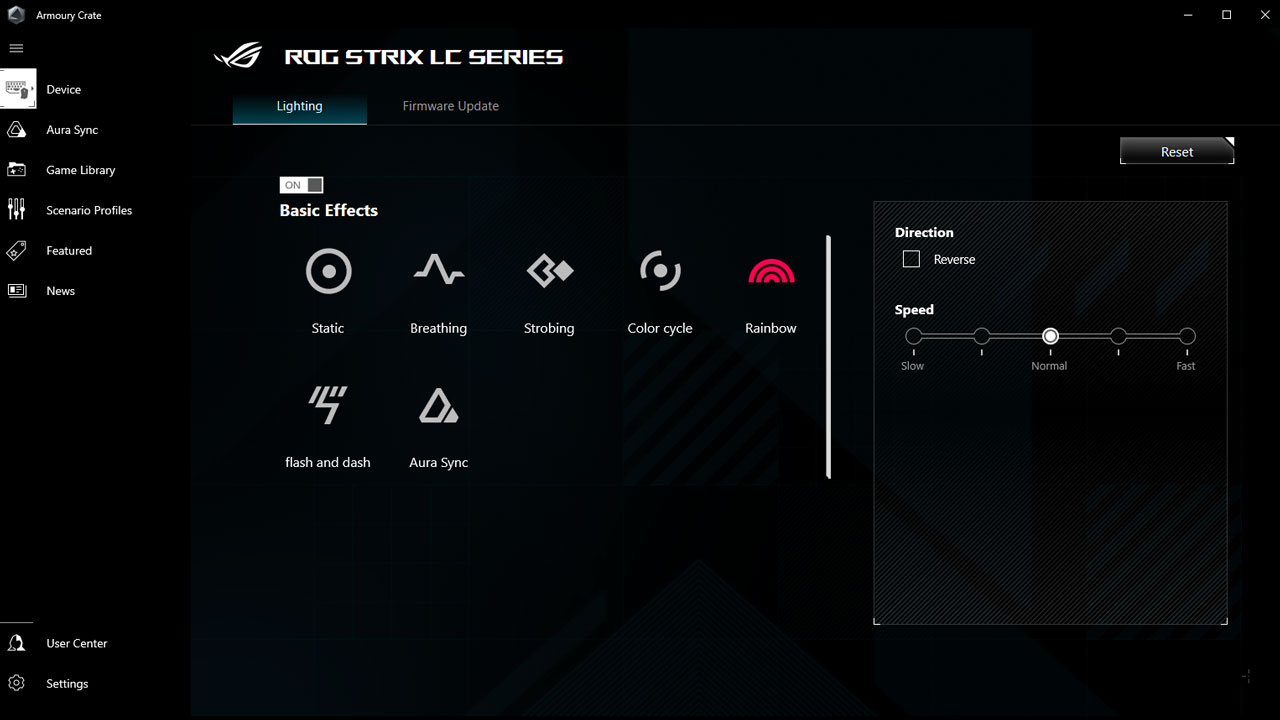

Software support is of course a courtesy of the ASUS Armoury Crate. Support is nil, least on my version with lighting effects control alone.

ASUS ROG Strix LC II 360 Armoury Crate

Lighting is not exactly simple but is subtle enough to appeal for my taste. This is AURA Sync capable so if you want it to get in-sync with the rest of your ASUS AURA capable devices, the data cable is a must.

ASUS ROG Strix LC II 360 Images 9

For an ROG product, I expected more when it comes to the software related features of the Strix LC II 360.

Final Thoughts

The ASUS ROG Strix LC II 360 is a high performance cooling solution no doubt. At its various PWM duty cycles and load conditions, it performed really well – thermally. This is especially true even with its fans spinning at ~825RPM which is only 25% of its duty cycle. Clearly, the surface area of a large radiator a capable pump combined is enough to warrant such performance.

As for noise, this is where the cooler or rather, its fans could be improved upon – at least at elevated RPM or at higher PWM duty cycles. You don’t want to hit more than 50% or ~1690RPM here unless you don’t mind the associated discomfort. Keeping this in mind, setting up the cooler to run at 50% PWM duty cycle and below should provide a more acceptable noise output without sacrificing much when it comes to thermals.

In closing, the ASUS ROG Strix LC II 360 is truly a higher performance cooler but it is not perfect. Like many ASUS ROG products, it comes with a high price point. This is uncomfortably close to full ARGB models from competing brands. I do not care much about lighting but this could sway-away some potential buyers. It comes with a full 6-year warranty to keep in mind though.

TechPorn Awards 2018 (4)

ASUS ROG Strix LC II 360
  • 9/10
    Thermals - 9/10
  • 7/10
    Acoustics - 7/10
  • 8/10
    Build - 8/10
  • 8/10
    Compatibility - 8/10
  • 8/10
    Features - 8/10
8/10

Summary

The ASUS ROG Strix LC II 360 is a high performance cooling solution fit for higher performance processors. Keep the RPM in check though if you are willing to shell out $189.99 USD for this unit.
