With the year ending soon, ASUS managed to sneak in a new model of the venerable Chakram family of gaming mouse. That said, what we have here is the ROG Chakram X – the third in the series packing some serious next-gen hardware inside.

Specification wise, the Chakram X comes with the all new ROG AimPoint optical sensor which is 36K DPI capable topped with a polling rate of 8000 Hz via USB interface. Battery life and wireless charging features are also improved compared to the older model but not so when it comes to weight.

Disclosure: ASUS sent the ROG Chakram X for the purpose of this review. As usual, the company did not ask me to say anything particular about it.

Technical Specifications

Mouse
Design Non-ambidextrous, ergonomic, right-handed
Lighting RGB
Profile Yes
Macro Yes
Polling Rate 8000 Hz
Connectivity 2.4 GHz RF, Bluetooth, USB Type-C
Switch
Type ROG Micro-Switch, Omron D2F-01F
Mount Hot-swappable
Dimensions
Length 132.7 mm
Width 76.6 mm
Height 42.8 mm
Weight 127 g

Packaging and Accessories

The ROG Chakram X comes in the usual ASUS packaging.

ASUS ROG Chakram X Wireless Gaming Mouse 6

The following items should be located inside:

  • ASUS ROG Chakram X Wireless Gaming Mouse
  • 2x ROG 3-pin Micro-Switches (installed)
  • 2x Spare Micro-Switches
  • 2.4 GHz RF Wireless Receiver
  • 2 m Paracord Cable (Type-A male to Type-C male)
  • USB RF Extender Adaptor with mousepad clip (Type-A female to Type-C Female)
  • Carry Pouch
  • Long Joystick (installed on mouse)
  • Short Joystick
  • Joystick Cover
  • Switch Remover
  • Customizable Logo Badge Sheet
  • ROG Logo Stickers
  • Quick Start Guide
  • Warranty Booklet

ASUS really stuffed the Chakram X with accessories and tons of freebies.

Design, Build and Connectivity

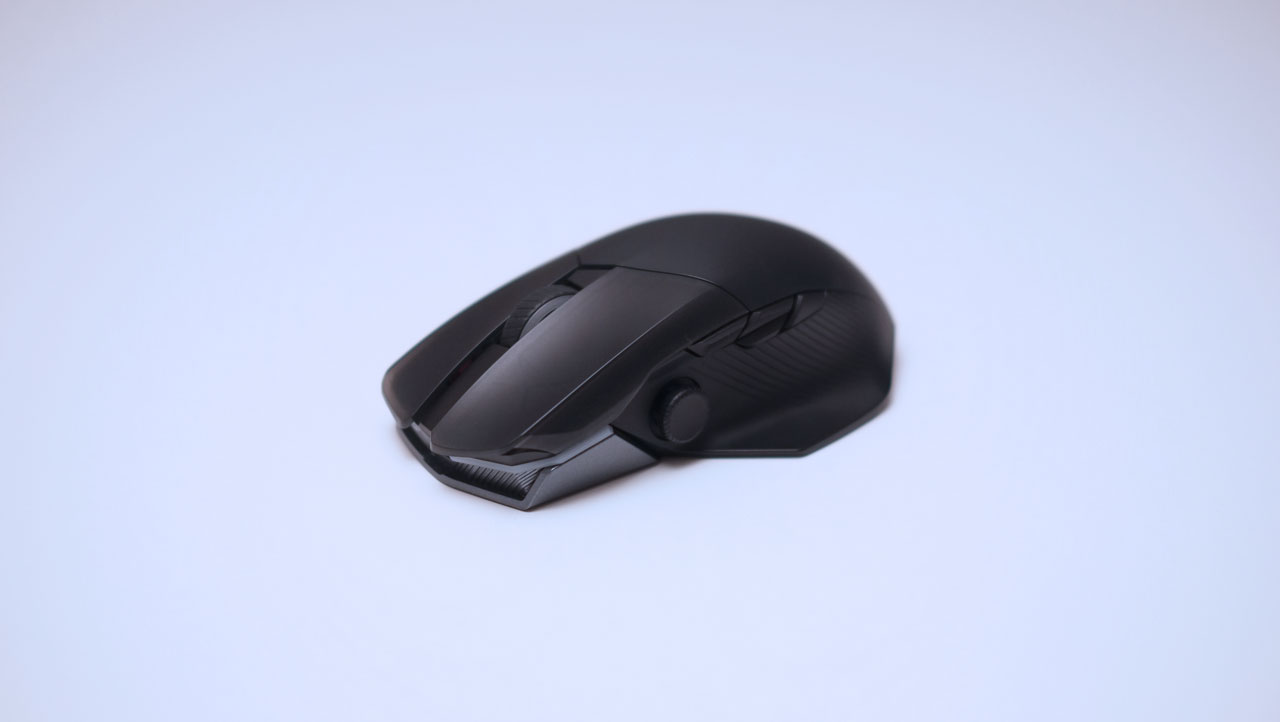

Compared to its predecessor, nothing much has changed with the Chakram X as far as the overall design is concerned. Of course there are obvious changes such as the additional side buttons (+2) but there are also minute ones – like the more pronounced curvature around the right grip’s rear end. This is definitely a thicker mouse and with a weight to match at 127 grams – about 5.4 grams heavier in comparison.

ASUS ROG Chakram X Wireless Gaming Mouse 8

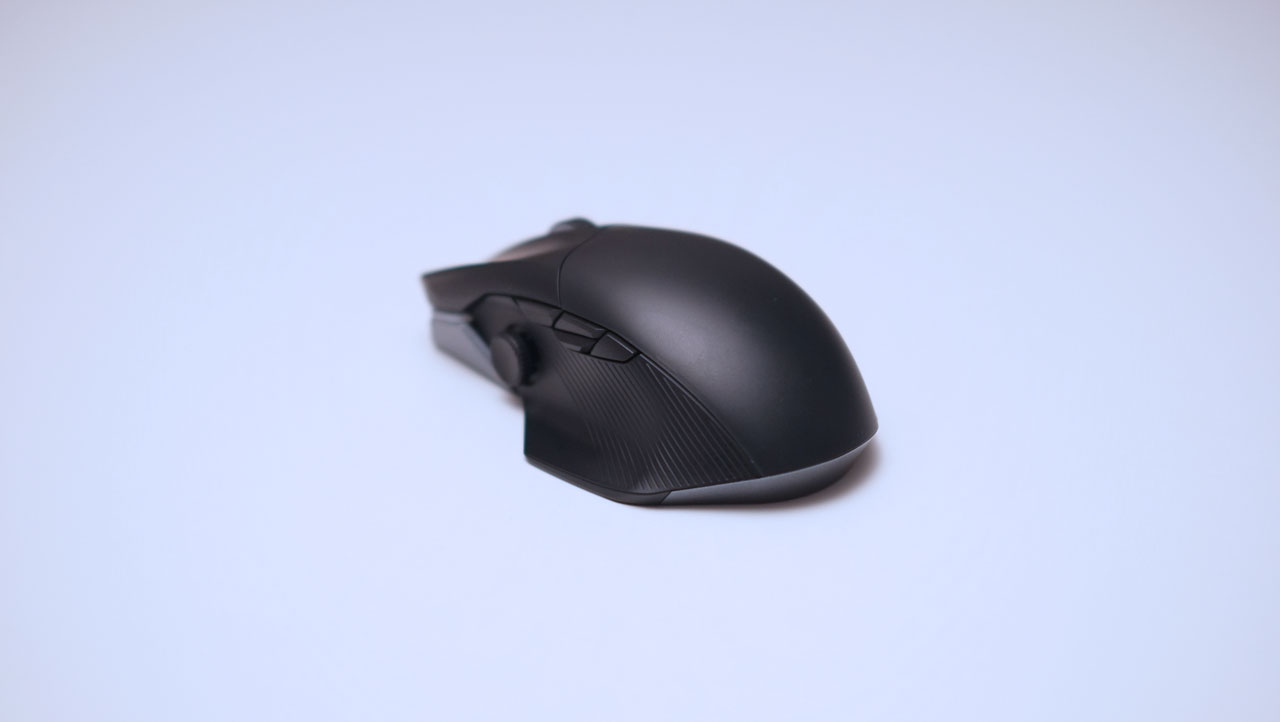

There are 11 programmable buttons found within the mouse – excluding the power switch, pairing and DPI buttons. It is a high-back design but with an asymmetrical side profile. Rear end is tapered so it should still aid claw or fingertip aimers when moving in the Y-axis.

ASUS ROG Chakram X Wireless Gaming Mouse 13

Skates are made of large PTFE cuts but they are proprietary. Aside from the skates and the sensor, this side of the mouse also houses the power switch, pairing and DPI buttons. Now this comes with a braided USB Type-C to Type-A cable for data and charging. Material is paracord and it appears to glide well even though it takes a bit of shape. By the way, in order for you to utilize the 8000 Hz polling rate feature, the Chakram X has to be in wired mode.

ASUS ROG Chakram X Wireless Gaming Mouse 12

Over all build quality is proper for the price. I just wish it is a little bit lighter and has a more malleable cable.

Ergonomics

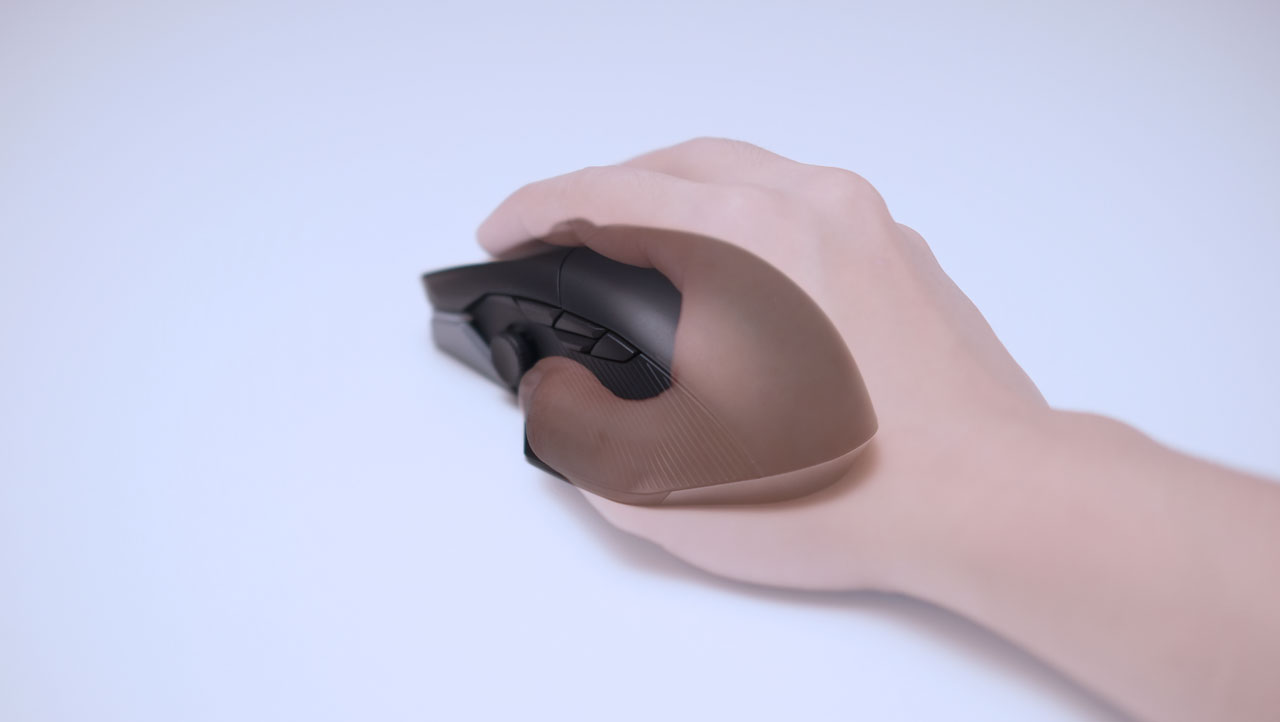

Based on my measurements, the ROG Chakram X  has a length of roughly 132 mm, a grip area of under 60 mm and a height of about 42.8 mm at its peak. Those measurements fits your typical medium to large sized mouse.

ASUS ROG Chakram X Wireless Gaming Mouse 9

Measurements were actually misleading to an extent – especially the ones provided by ASUS. With a width under 60 mm along the grip area, this is actually good even for gamers with smaller hand sizes. Its weight could be bothersome though but it has a low center of gravity so it felt really planted versus being annoyingly top heavy.

Features

To maximize the ROG Chakram X, you have to install the ASUS Armoury Crate. This lets you play with a multitude of settings, including button mapping and how the joystick behaves – i.e., analog or digital mode. The latter allows you to remap or bind the axis.

ASUS ROG Chakram X Wireless Gaming Mouse 2

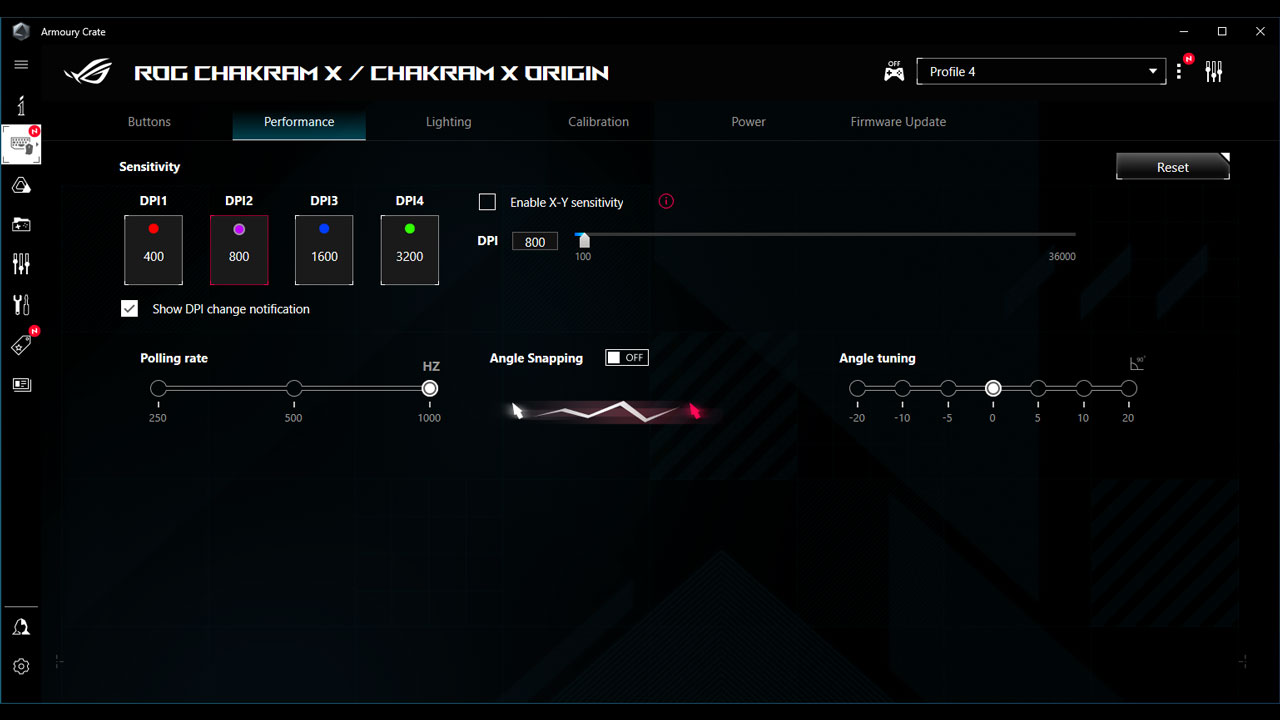

Performance is where DPI, polling rate, angle snapping, angle tuning and even the joystick’s sensitivity. Angle tuning is basically the sensor’s angle compensation. This is particularly useful if you find yourself lift the mouse at an angle. This is typically associated with palm gripping.

ASUS ROG Chakram X Wireless Gaming Mouse 3

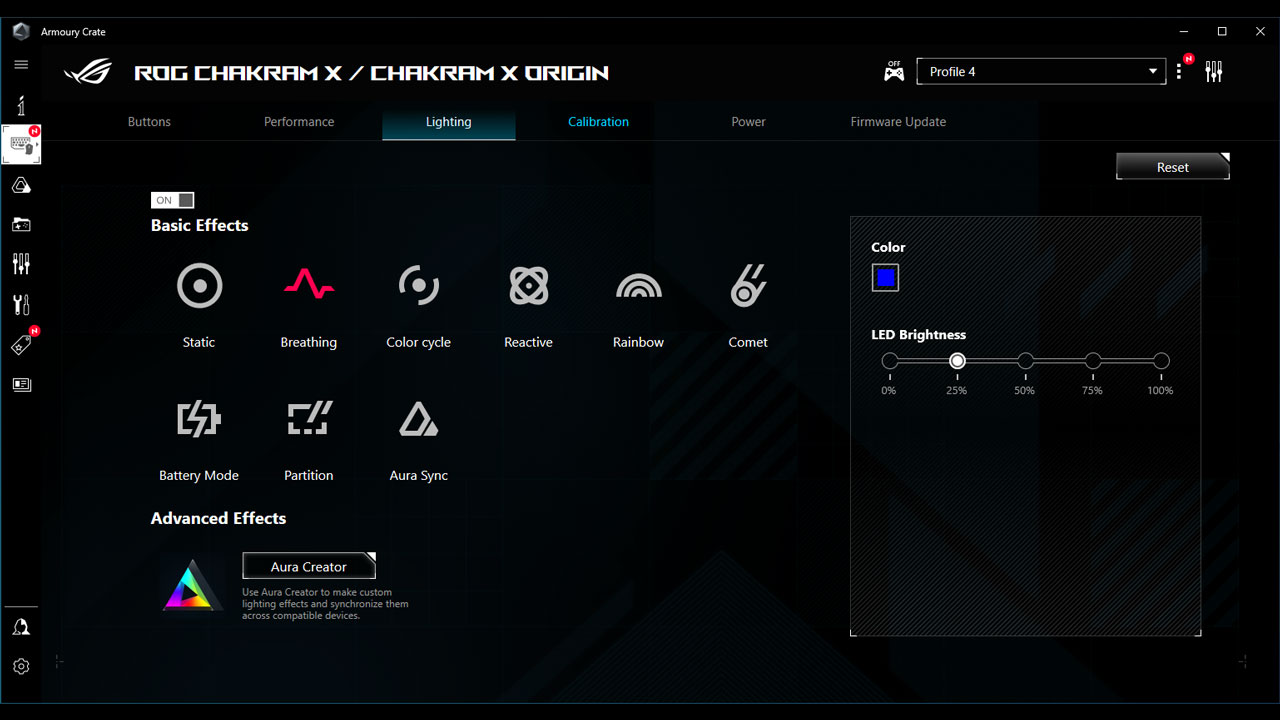

Lighting is of course also configurable. There are 9 effects here accompanied by their respective sub options.

ASUS ROG Chakram X Wireless Gaming Mouse 4

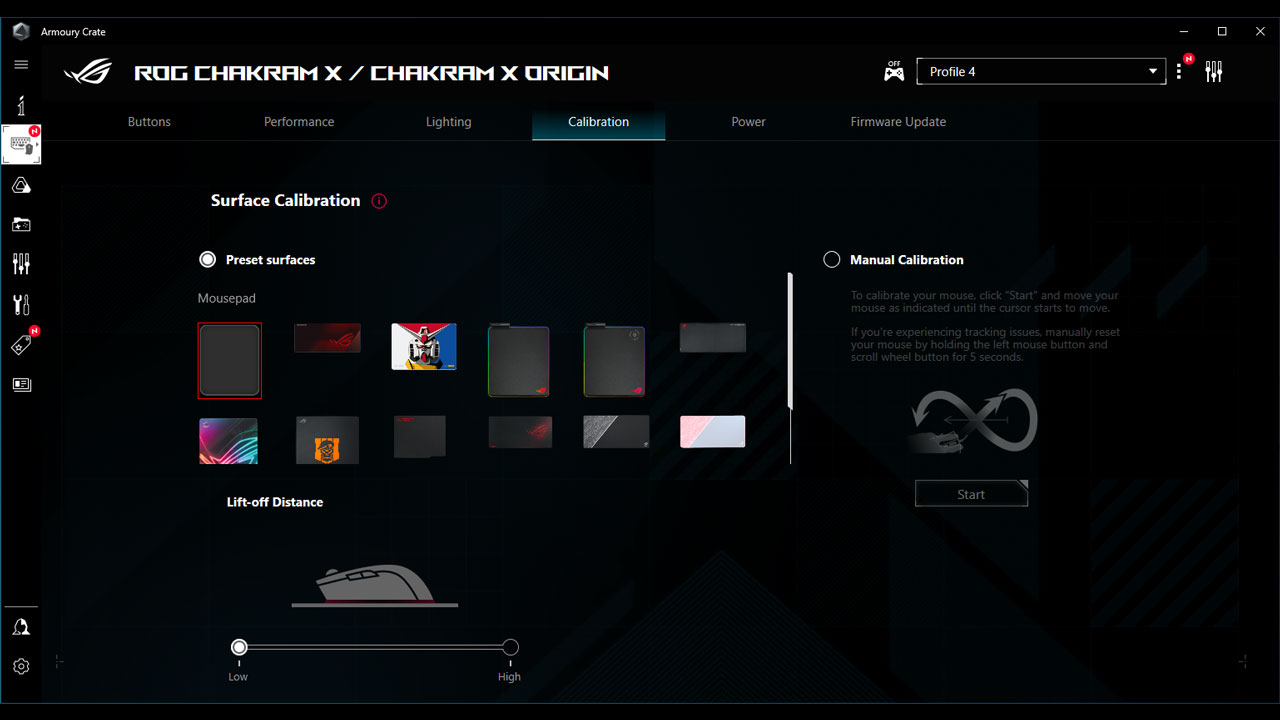

Calibration is basically what it says. You may manually calibrate the mouse or use presets for an optimal sensor performance. LOD could also be adjusted here.

ASUS ROG Chakram X Wireless Gaming Mouse 5

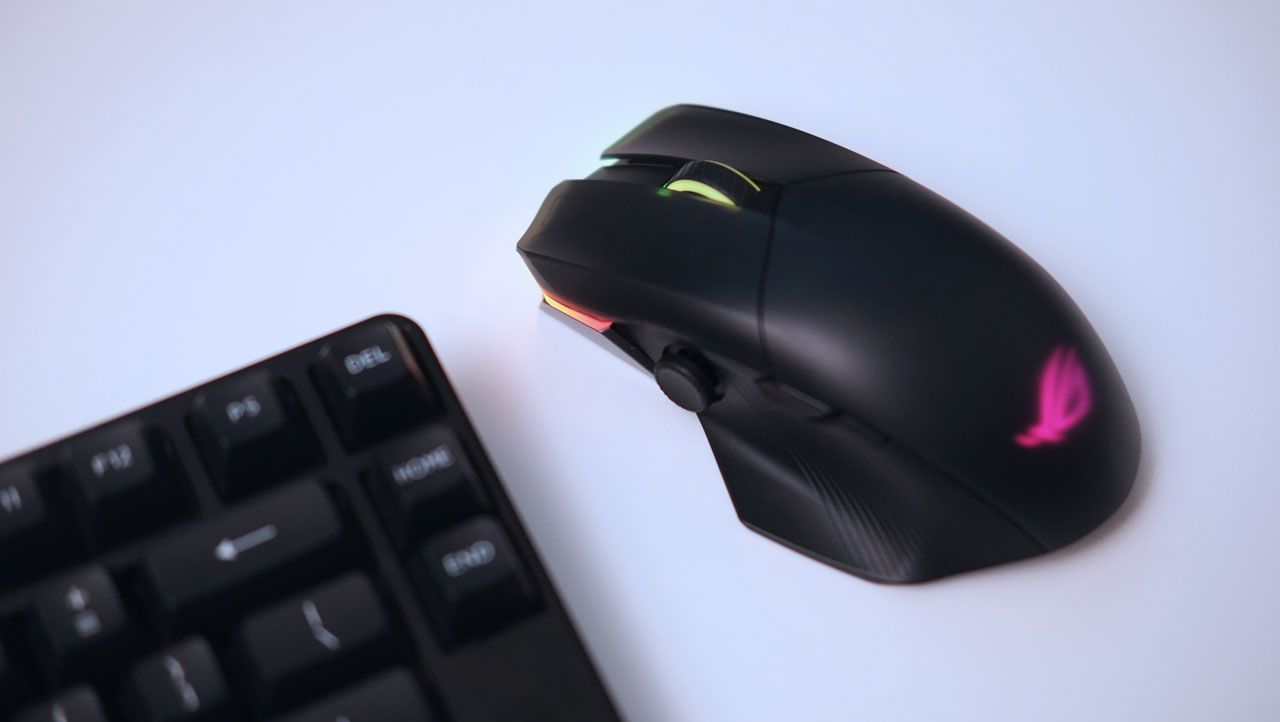

Lighting effects are awesome like many ASUS gaming gears. Nothing more to say here though since I do not find RGB lighting and such appealing for wireless devices due to its adverse effect on battery life.

ASUS ROG Chakram X Wireless Gaming Mouse 11

Now what sets this mouse apart from the competition are its push-fit sockets for the left and right mouse buttons along with the ability to change the lighting badge and the joy stick itself.

ASUS ROG Chakram X Wireless Gaming Mouse 10

On that note, the joystick is pretty useful and is far from being a gimmick at all. As for the experience using a polling rate of 8000 Hz, it is actually noticeable but not a huge leap compared to lets say going from 125 Hz to 1000 Hz. This has been tested on Overwatch 2 and a 240 Hz display so your mileage may vary. Anyway, do not stress on it since I find that sensor reliability, shape and weight are still the most important ones to check out.

Final Thoughts

The ASUS ROG Chakram X is a heavy mouse in comparison to the recently released gaming mouse models from various brands and or manufacturers. That doesn’t make it bad though since I find its features really useful for certain demographics. Yes, there are gamers who likes heavier mouse, wireless charging, more side buttons to play with and more importantly, an actual joystick. I actually find this excellent not just for games but for productivity as well.

Perhaps what could be improved upon are its weight – for those who likes everything about this mouse minus that one. ASUS could do this by using some weights but in order to do so, they have to redesign the internals so um, good luck with that I guess. The paracord cable is also stiffer compared to what I’m used to so that’s another front to consider should you wish to utilize its 8000 Hz polling rate feature.

As for the price, I think it is a good option at 8,395 Pesos – all features considered.

TechPorn Awards 2018 (2)

ASUS ROG Chakram X Wireless Gaming Mouse
8/10

Summary

The ASUS ROG Chakram X Wireless Gaming Mouse is a heavy mouse by today’s standards but it is also heavy on features. At ₱8,395 PHP, I would consider this as a daily driver if it checks out everything I need.
