Review | Fantech HELIOS XD3 PRO Wireless Gaming Mouse

Fantech is one of the many rising brands in the gaming industry this side of the year – and a fast one at that. A quick search showed the they are in reality, has been around since the last decade. Certainly, the Indonesia based company did something great to garner this much of a respect from the gamers.

Now what we have here is the HELIOS XD3. This is a wireless gaming mouse with a weight of 83 grams. It also comes with the tried and tested Pixart 3335 sensor on top of the 70 hour battery life. Priced at 2,500 Pesos, the XD3 PRO Wireless is looking to be one of those budget friendly optical devices.

Technical Specifications

Mouse
Size Medium
Layout Semi-ambidextrous
Design Standard
Macro Yes
Profile Yes
Software Yes
Interface RF 2.4GHz, USB 2.0
Polling Rate 125-1000Hz
Lighting RGB
Switch Huano
Buttons 6
Cable Length 1.8m (paracord)
Feet PTFE
Sensor
Model Pixart 3335
DPI 100-16000 DPI
Speed 400IPS/20G
Dimensions
Length 120mm
Width 58mm (Max), 54mm (Grip)
Height 38mm
Weight 83g

Packaging and Accessories

The HELIOS XD3 PRO Wireless is safely packed inside a rather larger than usual mouse packaging. The following items are located inside:

  • Fantech HELIOS XD3 PRO Wireless
  • Wireless RF 2.4GHz USB dongle
  • User manual
  • Warranty card
  • 2m USB Type-C to Type-B cable (paracord)
  • Extra mouse feet

Bundle is nice – thoughtful even, with an extra set of skates in tow.

Design, Layout and Build Quality

The HELIOS XD3 Pro Wireless comes with a familiar sculpted shell design. A friend actually pointed out that this is almost a clone of the Zowie S2 as far as physique is concerned – and I’m not even mad.

Buttons totals at 6 – and all of them could be customized. This is useful even on the main buttons since the mouse is semi-ambidextrous. Switches for the buttons are made by Huano by the way and are rated to feature 50 Million click span.

The grip area has a slightly different texture compared to the rest of the mouse. Grip’s fine and the buttons are well placed. I really dig the curve here. Reminds me of my Zowie ZA13.

Now the top of the mouse is made out of three piece plastic. This is to ensure a more uniform feel when pressing the main buttons. The scroll wheel on the other hand is your standard detent wheel design so don’t expect free/infinite scrolling functions. Wired connectivity and charging is provided by the detachable USB Type-C cable protected by a paracord. Cable is pretty hefty and is a bit on the stiffer side. It’s easy to drag though.

The skates are made up of 3 main parts – top, bottom and the one for the sensor to keep debris away. This is a standard looking skate which means it is easy to replicated. To make things even better, Fantech added an extra set of these feet for your perusal.

The HELIOS XD3 PRO comes with 3 modes. On, Eco and Off – for wired. The wireless dongle could also be stored on this section. It is noteworthy to add that this mouse comes in three colors, namely in black, white and pink. Plenty of colors to choose from to match your build.

Test Setup and Methodology

Testing a gaming mouse is not that difficult, but it is mostly subjective; similar to testing head gears in a sense. That said, no mouse is perfect and the verdict usually depends on personal preferences. With that in mind, we overhauled our testing methodology by following key pointers that should matter the most. To keep our test methodology simple and free of extra variables, please note the following software and configurations used for the review.

Test Setup
Pointer Speed 6/11, EPP Disabled
Sensitivity 800 DPI
Polling Rate 1000Hz
Software MouseTester V1.5.3

Physical Layout, Functionality and Ergonomics

Your grip and aiming style are important things to consider when looking for a mouse. There are three basic types of grips here; the palm, claw and fingertip grip. Fingertip grip is generally preferred when aiming with the wrist, while palm grip is the choice when aiming with the arm. Claw grip is middle ground options for both aiming styles. Of course, you could go with a hybrid of any grip types and aiming styles if the combination suits you best.

Your hand size also influences what mouse you should buy on top of your grip and aiming style. For an instance, my hands measures at 76.2mm (3″) in width. This puts my hands on the medium size category. My style is finger-tip grip, so I would generally look for a mouse with a small to medium foot print.

Hand-Size-Chart-2018

The Fantech HELIOS XD3 PRO Wireless feature a length of roughly 120mm and a grip area at around 58mm. The highest point of the shell is at 38mm with a gradual curvature.

Product Length (mm) Width (mm) Height (mm) Weight (g)
Fantech HELIOS XD3 PRO Wireless 120 58 (54) 38 83
ASUS ROG Strix Impact II Wireless 120 62 38.6 93
ASUS ROG Strix Carry 101 62 36 72.9
ASUS ROG Chakram 132.7 76.6 42.8 121.6
Galax Xanova Mensa Pro 115 168 39 126
ASUS ROG Gladius II Wireless 126 67 45 130
ASUS ROG Strix Evolve 125 65 41 100
Thermaltake Nemesis Switch 111 88.5 38.9 112
ADATA XPG Infarex M20 132 69 43.5 160
HyperX Pulsefire FPS 127.6 71.1 41.9 95
Logitech G603 124 68 43 88.9

Now weight is again 83 grams which is 10 grams lighter than the previous wireless mouse tested. Weight distribution is good too which is always a plus.

Product Palm Claw Finger
Fantech HELIOS XD3 PRO Wireless SML SML SML
ASUS ROG Strix Impact II Wireless SML SML SML
ASUS ROG Strix Carry SM SM SM
ASUS ROG Chakram ML ML ML
Galax Xanova Mensa Pro SML SML SML
ASUS ROG Gladius II Wireless SML SML SML
ASUS ROG Strix Evolve SML SML SML
Thermaltake Nemesis Switch ML ML ML
ADATA XPG Infarex M20 ML ML ML
HyperX Pulsefire FPS ML ML ML
Logitech G603 SML SML SML

The Fantech HELIOS XD3 PRO Wireless is suitable for the three basic grip styles even if you have small, medium or large hands. This is all due to its classic yet proven design – that even dates back to the already legendary Microsoft Intellimouse 1.1.

The mouse is also perfect for arm aiming and is planted enough for extended arm swipes. Functionality wise, again the mouse comes with 6 buttons – all programmable with macro, and bindings via the software.

DPI Range and Accuracy

DPI accuracy is checked with the MouseTester V1.5.3 while the mouse is rigged on a camera slider with a DPI level of 800 DPI. Anything under 3% is considered accurate.

Product Min DPI Max DPI DPI Accuracy
Fantech HELIOS XD3 PRO Wireless 100 16000 1.3%
ASUS ROG Strix Impact II Wireless 100 16000 1.1%
ASUS ROG Strix Carry 50 7200 1.2%
ASUS ROG Chakram 100 16000 1.6%
Galax Xanova Mensa Pro 50 16000 1.4%
ASUS ROG Gladius II Wireless 100 16000 1.5%
ASUS ROG Strix Evolve 50 7200 1.5%
Thermaltake Nemesis Switch 400 12000 1.1%
ADATA XPG Infarex M20 400 5000 1.1%
HyperX Pulsefire FPS 200 16000 1.1%
Logitech G603 200 12000 1.6%

DPI at the standard ranges are accurately represented. Nothing wrong here.

Polling Rate Range and Performance

Polling Rate of the device is evaluated with the MouseTester V1.5.3 at the 800 DPI level. This is to check the average update rate performance at 1000Hz if possible.

Product Min Polling (Hz) Max Polling (Hz) Performance
Fantech HELIOS XD3 PRO Wireless 125 1000 Average
ASUS ROG Strix Impact II Wireless 125 1000 Average
ASUS ROG Strix Carry 125 1000 Average
ASUS ROG Chakram 125 1000 Average
Galax Xanova Mensa Pro 125 1000 Good
ASUS ROG Gladius II Wireless 125 1000 Good
ASUS ROG Strix Evolve 125 1000 Average
Thermaltake Nemesis Switch 125 2000 Average
ADATA XPG Infarex M20 125 1000 Average
HyperX Pulsefire FPS 1000 1000 Great
Logitech G603 125 1000 Great

Polling performance is just average but it is definitely anchored to 1000Hz regardless. You’d want to use this mouse wired for a more consistent polling performance.

Sensor Quality and Performance

With a sensitivity of 800 DPI, the sensor is also checked with the MouseTester V1.5.3. Our aim is to check out the sensor’s performance – to look for reporting inconsistencies such as smoothing and unintended acceleration. The sensor quality is also taken into account based on its specifications and the general public opinion.

Product Sensor IPS/G LOD (mm) Performance
Fantech HELIOS XD3 PRO Wireless PAW3335 400/20 1.5 Average
ASUS ROG Strix Impact II Wireless PAW3335 400/40 1-2 Average
ASUS ROG Strix Carry PMW3330 150/30 1.2 Good
ASUS ROG Chakram PWM3360 400/40 1.2 Average
Galax Xanova Mensa Pro PMW3389 400/50 1.2 Good
ASUS ROG Gladius II Wireless PMW3389 400/50 1.2 Good
ASUS ROG Strix Evolve PMW3330 150/30 1 Good
Thermaltake Nemesis Switch PWM3360 250/40 1 Good
ADATA XPG Infarex M20 PMW3325 100/20 1.2 Great
HyperX Pulsefire FPS PWM3310 130/20 1.2 Great
Logitech G603 HERO 400/40 1.2 Great

Sensor performance is average – even lower compared to the same PAW3335 based gaming mouse we got from ASUS when in wireless mode. Range is also an issue on the unit we got with an optimal range of nothing more than a foot. Using this wired is best suited for competitive gaming for better consistency.

Software, Lighting and Special Features

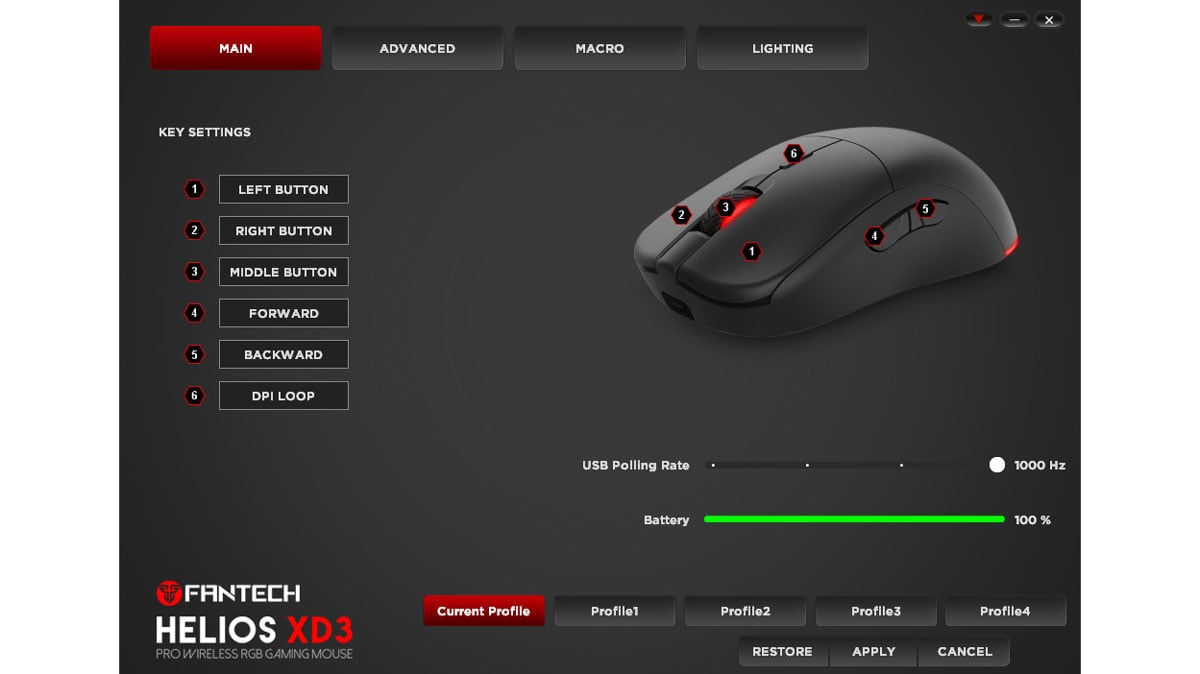

The Fantech HELIOS XD3 PRO comes with its own software that is readily available at Fantech’s website. There are four main areas to explore here with the Main menu being the first. This houses the bindings for each buttons, the adjustable polling rate and even the actual battery life of the mouse. Note that this is accessible both in wired and wireless mode. Also note that polling rate by default is 500Hz.

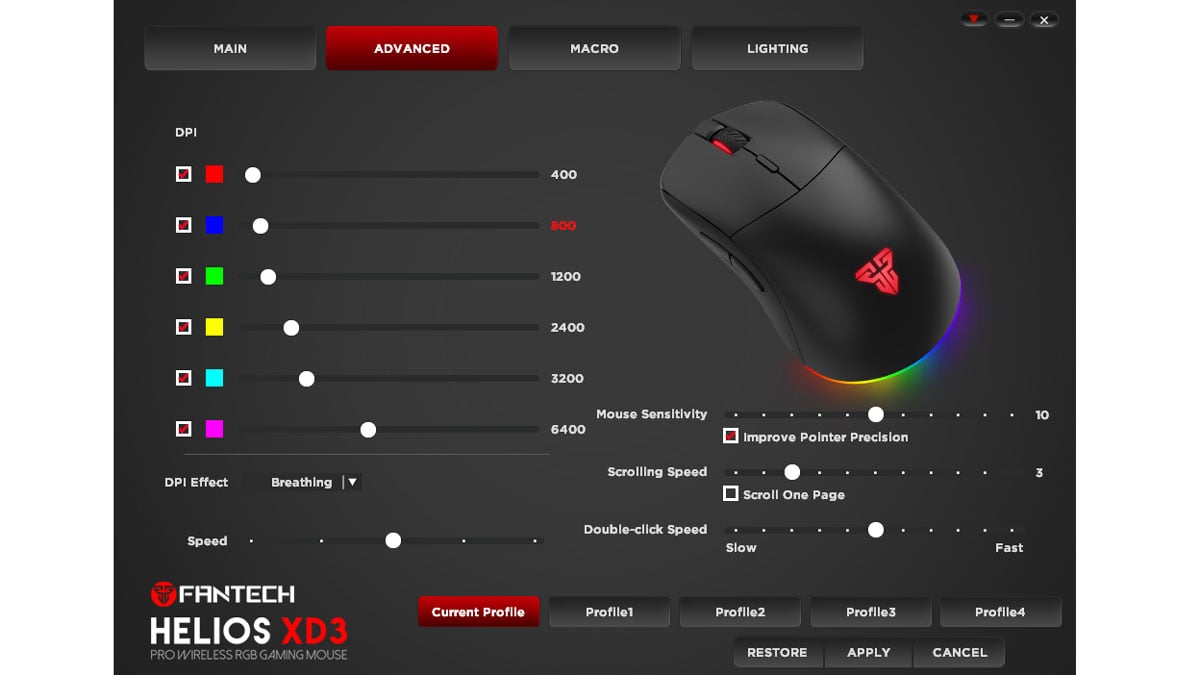

The Advanced menu is where you could adjust the DPI level of each presets in the mouse. You could disable a maximum of four levels here – for faster cycling. Uncheck the “Improve Pointer Precision” option here to disable mouse acceleration.

Macro is up next. This is where you could record your macros and even set cycle times. These are stored within the onboard memory so if you happen to bind one of the buttons for your macro, they will definitely work.

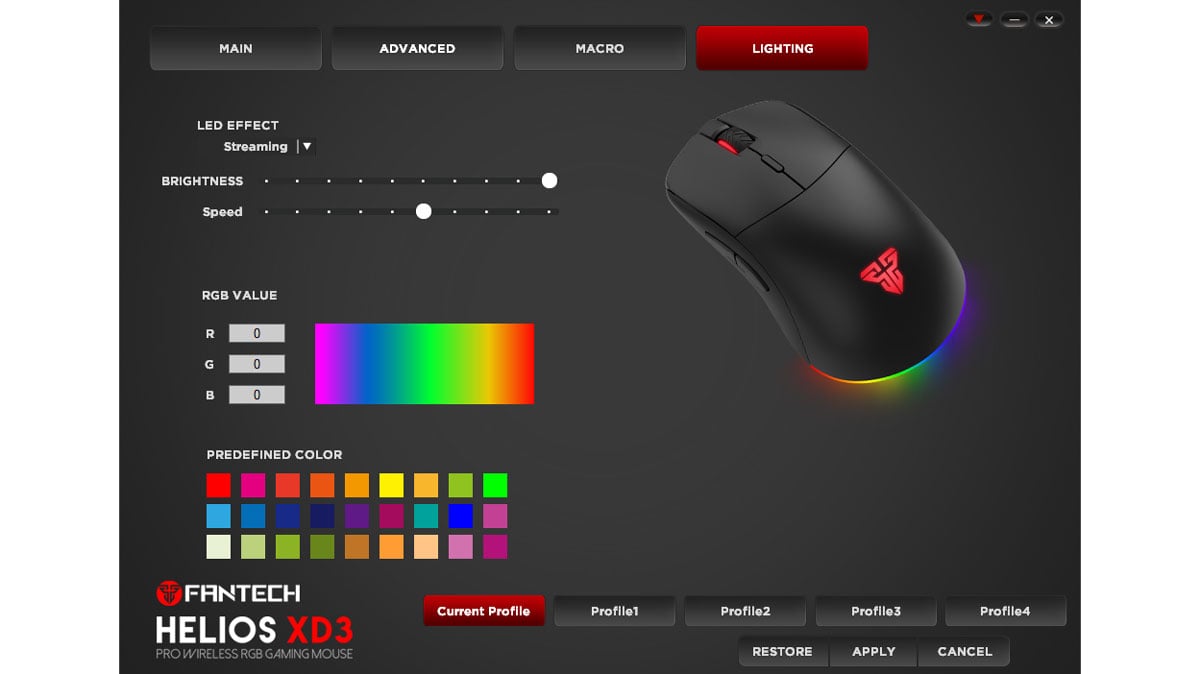

Now lighting is just a simple selection between effects, speed and color – on some effects. I don’t find it fancy nor extensive so it is a plus personally speaking.

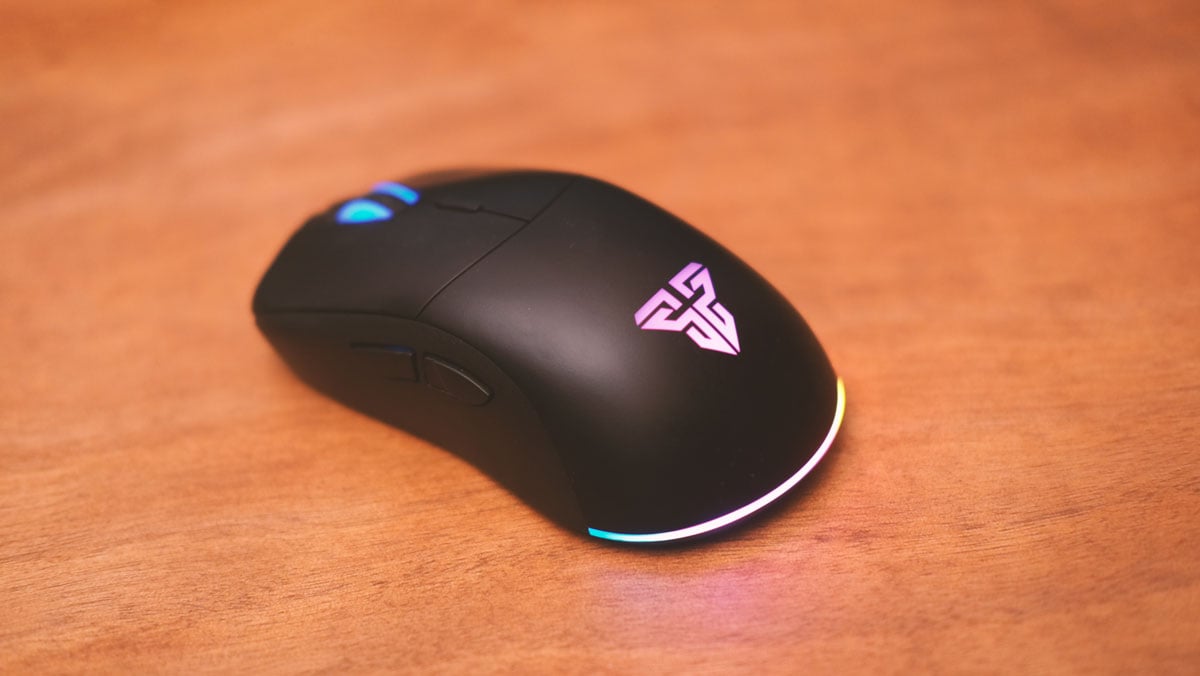

As far as RGB goes, I like how Fantech implemented the light bar on the XD3’s design.

Now it is worthy to mention that the HELIOS XD3 comes with spare yet useful bundles. That includes the extra set of skates and the USB Type-C data and charging cable.

Now battery life is within the specified which is nice for something with a 780mAh capacity battery. It took me about a week to fully drain it with about 6-8 hours of run time each day. This could be even higher with the eco mode turned on and with a lower polling rate setup.

Final Thoughts

The Fantech HELIOS XD3 PRO Wireless is poised to impress and it certainly does – with a few caveats to keep in mind.

Now the mouse tracks fine both in wired and wireless mode but if you really want a more consistent tracking performance then wired it is to go. Range is also an issue on this device with a recommended direct line of sight to the dongle and within a foot of a distance required to minimize the degradation of reporting rate. One way to address is to just include a Type-A to Type-C adapter so you could use the included cable to maximize the wireless connection’s stability.

Now the mouse has a pretty neat software and a simple one at that so props to Fantech for not bloating it with unnecessary UX elements. Battery life also deserves a mention since it could last a week without charging. Topping it up wont even require hours due to its low capacity nature.

Priced at around 2,500 Pesos or around $50 USD internationally, the HELIOS XD3 PRO Wireless is a good lightweight gaming mouse with a familiar shell design – ultimately improving comfort and play at a reasonable price. It also comes in three colors – black, white and pink. With the XD3, Fantech certainly wants you to pick your desired poison.

TechPorn Awards 2018 (2)

Fantech HELIOS XD3 PRO Wireless

  • Performance - 8/10

    8/10

  • Build Quality - 8/10

    8/10

  • Features - 9/10

    9/10

  • Design - 9/10

    9/10

  • Value - 9/10

    9/10

8.6/10

Summary

Priced at around 2,500 Pesos or around $50 USD internationally, the HELIOS XD3 PRO Wireless is a good lightweight gaming mouse with a familiar shell design – ultimately improving comfort and play at a reasonable price.

Pros

  • Good wired performance
  • Lightweight counstruct
  • Really good shell design
  • Simple software solution
  • Paracord USB Type-C cable
  • Battery life
  • Meaningful bundles

Cons

  • Wireless performance could be a bit better
  • Range could be better
